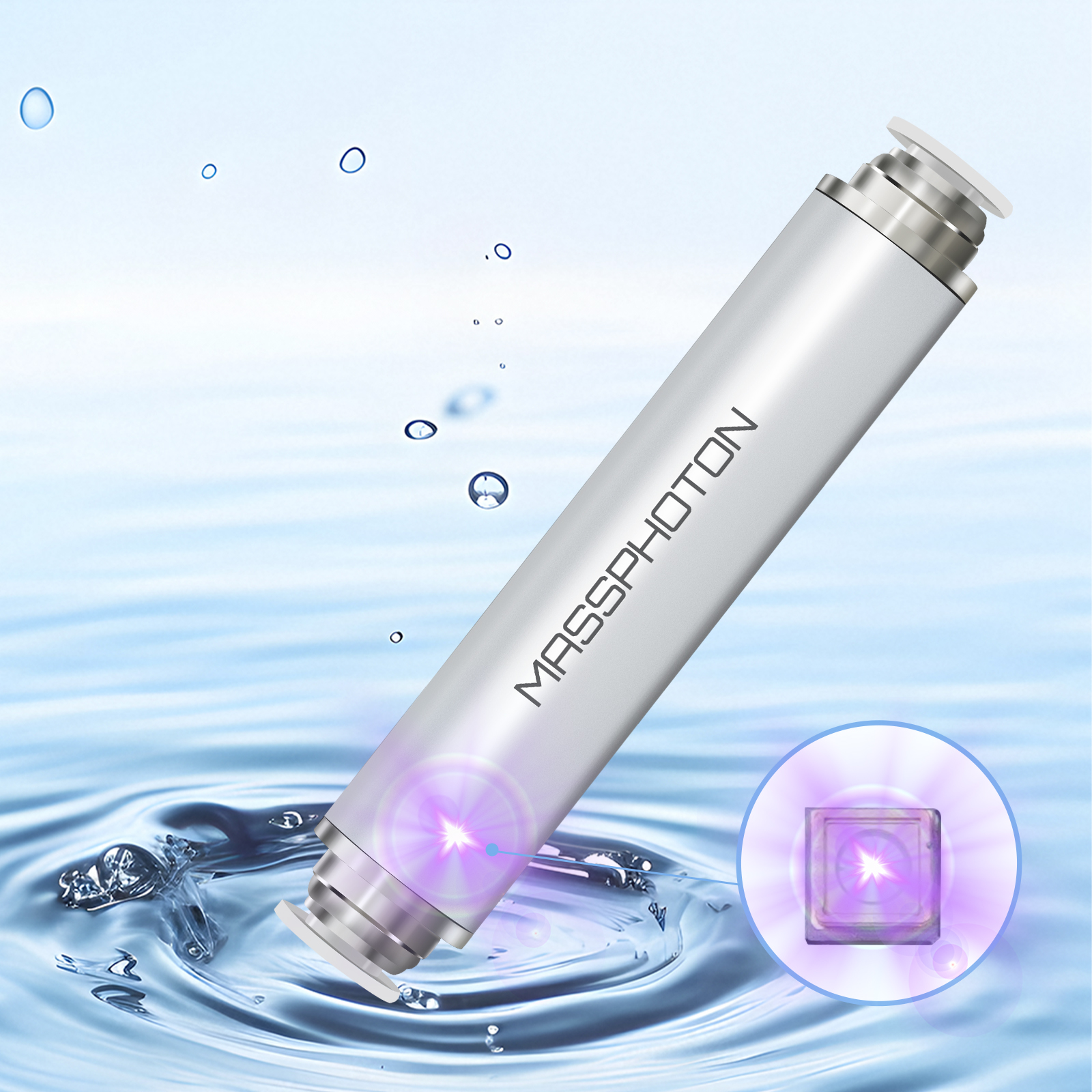

Mercury-free UVC Water Disinfection System
effictive without chemicals
Product list
Mercury-free UVC LEDs (270-280nm wavelength). Disinfection rate up to 99.999% or 5.0 log. (Actual performance may vary depending on water quality)

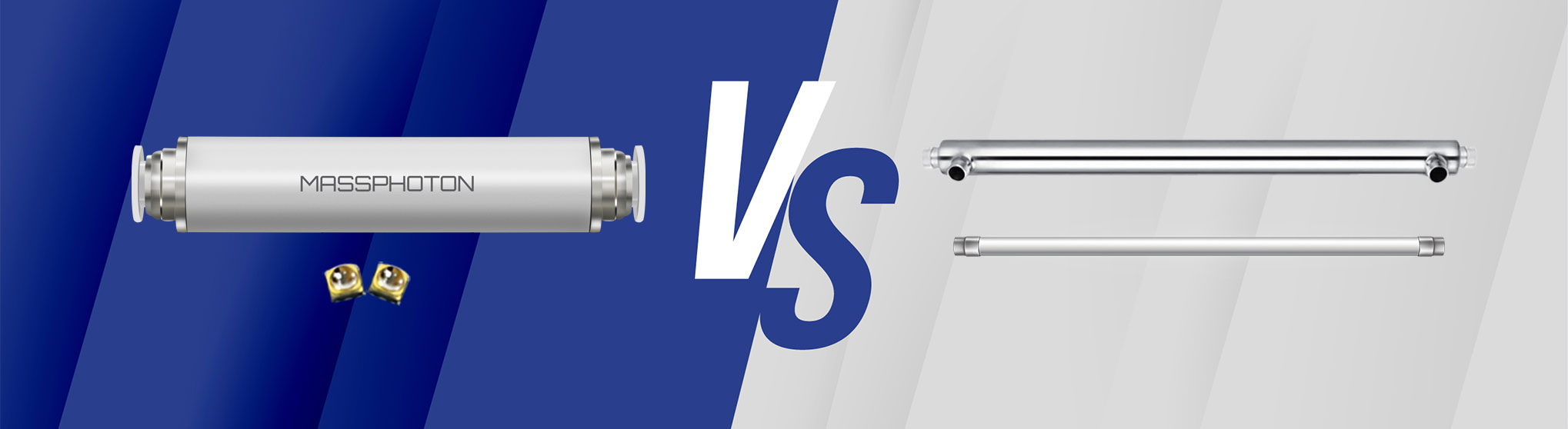

Advantages Over UV Lamps
UVC LED water disinfection system , a new-generation physical disinfection device, utilizes deep ultraviolet (UVC) light-emitting diode technology to destroy the DNA/RNA structure of microorganisms with 270-280nm wavelength ultraviolet light, achieving 99.999% high-efficiency sterilization. It can inactivate harmful pathogens such as E. coli, Salmonella, influenza viruses, and more. It requires no chemical agents, leaves zero residue, and has low energy consumption, making it an ideal alternative to traditional mercury-based ultraviolet sterilization equipment.
Mercury-Free
Traditional mercury lamps contain harmful mercury, posing risks of leakage during use and disposal, which can harm both the environment and human health. In contrast, UVC LED chips are completely mercury-free, eliminating mercury pollution and ensuring greater environmental safety.
Zero Chemical Residues
The physical inactivation mechanism avoids the development of drug resistance in microorganisms, eliminating the need for adding chemical agents such as chlorine or ozone, and preventing by-products like trihalomethanes, resulting in purer water quality.
Energy-Efficient
UVC LED technology delivers superior electro-optical conversion efficiency, achieving equivalent sterilization with significantly lower energy consumption—reducing power usage to just 1/3 to 1/2 of traditional UV lamps. Ongoing technological advancements promise even greater energy savings.
Instant Flow-by Disinfection
UVC LEDs reach full 100% power output immediately upon activation, requiring no preheating. This enables real-time water disinfection, making them ideal for water treatment systems requiring frequent start-stop cycling.
Long Lifespan
With an operational life of 5,000 to 20,000+ hours, UVC LEDs drastically reduce replacement frequency and maintenance costs while boosting system reliability.
Miniaturization and Flexibility
With a compact size, they are easy to design and install, and can be easily integrated into various water treatment systems.
No Thermal Radiation
During the sterilization process, no heat is generated, so it will not change the temperature and taste of water, nor will it affect the living environment of microorganisms due to temperature rise, thus ensuring the original quality of water.
Precise Wavelength Control
UVC LEDs can be designed to emit ultraviolet light within a specific wavelength range. For different types of microorganisms, the most effective sterilization wavelength can be selected to improve sterilization efficiency and reduce energy waste.
UVC LED
Lifespan： 20,000 - 35,000 hours
Startup Time： Instant - start, irradiation time can be controlled
Maintenance Cost： Low maintenance cost, low consumable replacement cost
Environmental Friendliness： Mercury - free, no ozone emission
Energy Consumption： Only 10% - 20% of that of mercury lamps, standby energy consumption is nearly zero
Traditional Mercury Lamps
Lifespan： 1,000 - 3,000 hours
Startup Time： Requires 3-15 minutes of preheating
Maintenance Cost：Complex and expensive maintenance, requires regular replacement components
Environmental Friendliness：Contains mercury; emits ozone during operation
Energy Consumption：High energy consumption; requires continuous operation (consumes power even when not in use)
Product Application Scenarios
From Household Health to Professional Fields: Mercury-Free Water Treatment Solutions

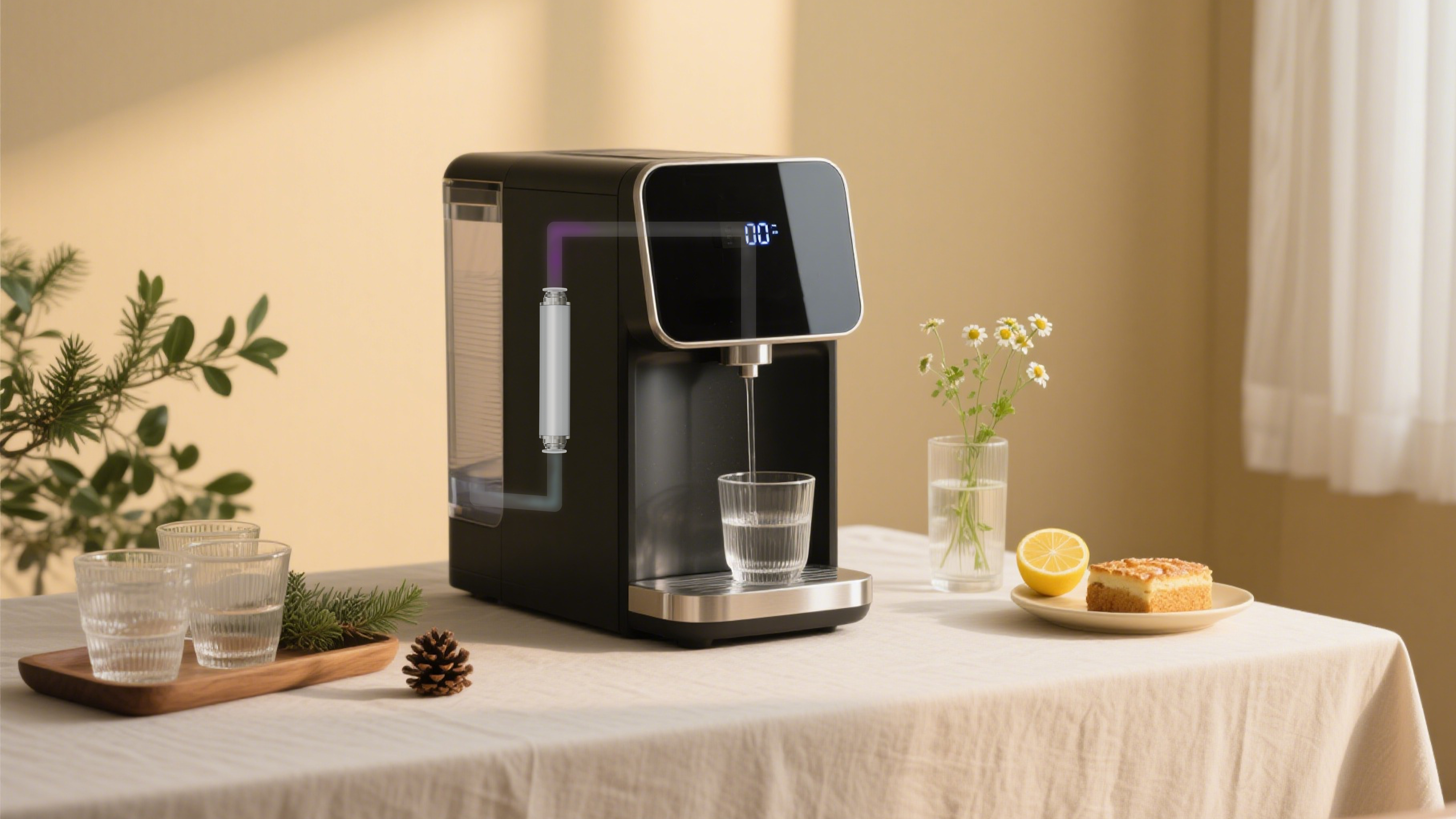

Household Water Dispensers and Purifiers
Bathroom Water Systems
Washing Machines and Dishwashers

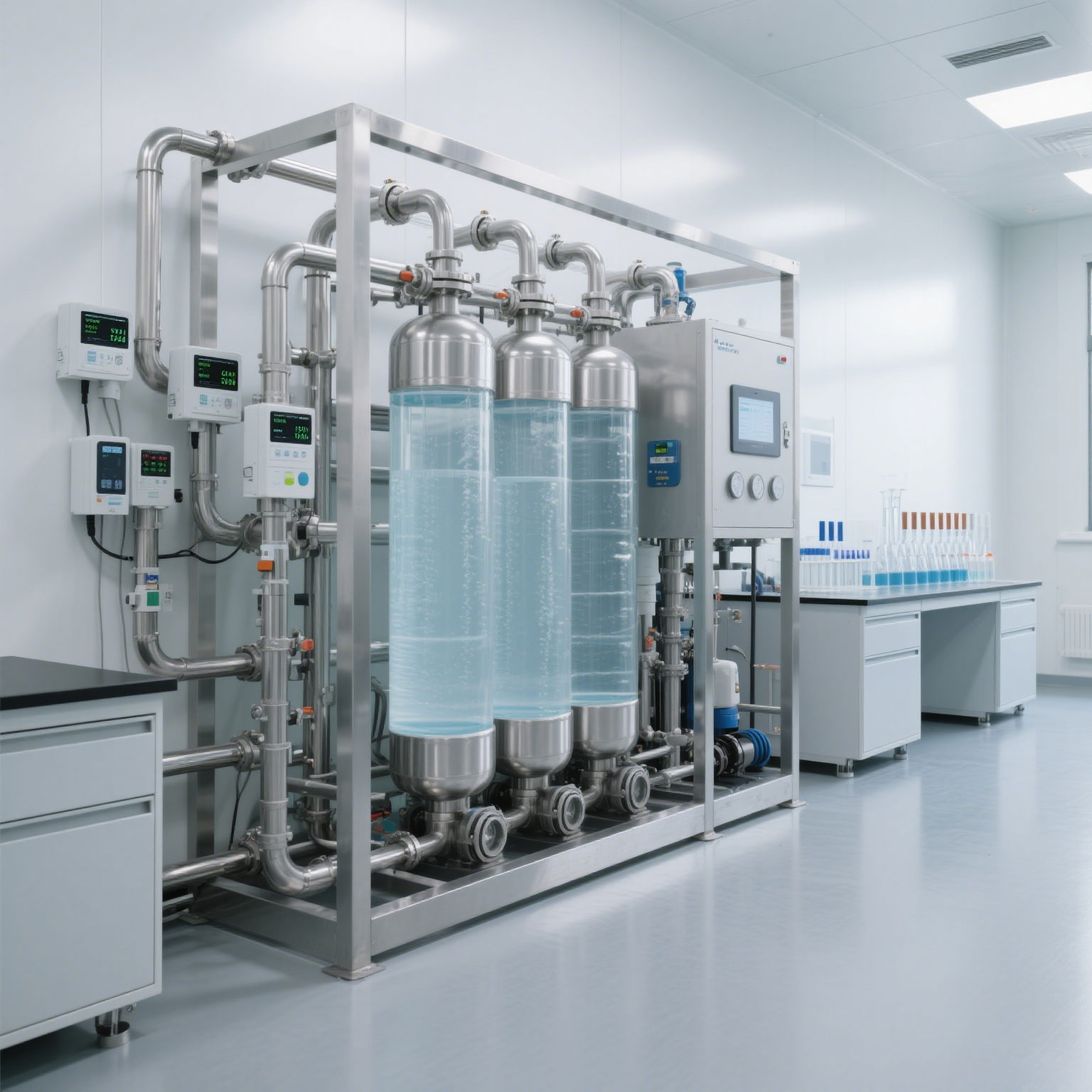

Laboratory and Medical Purified Water Systems
Mobile Scenarios (RVs, Yachts)

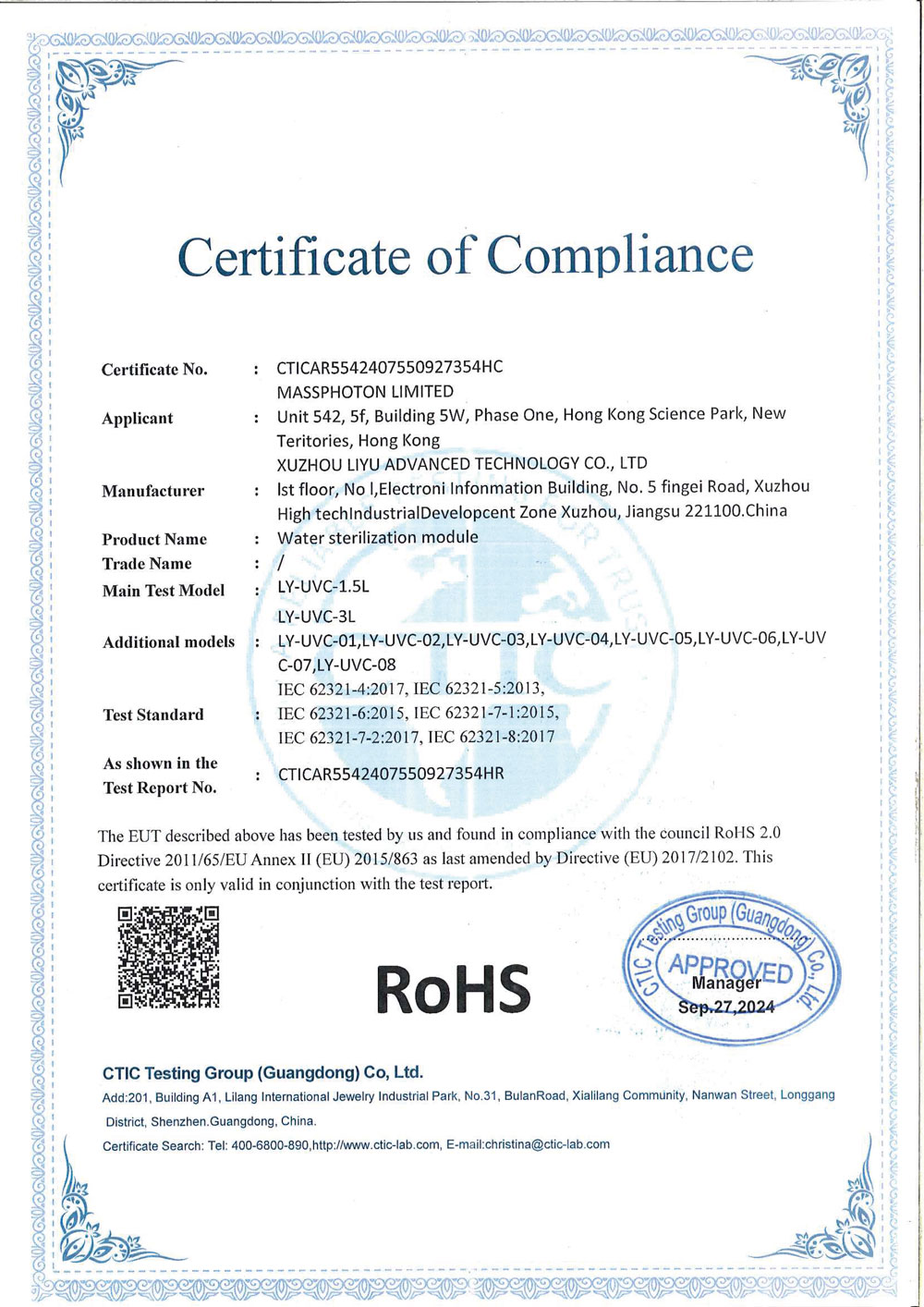

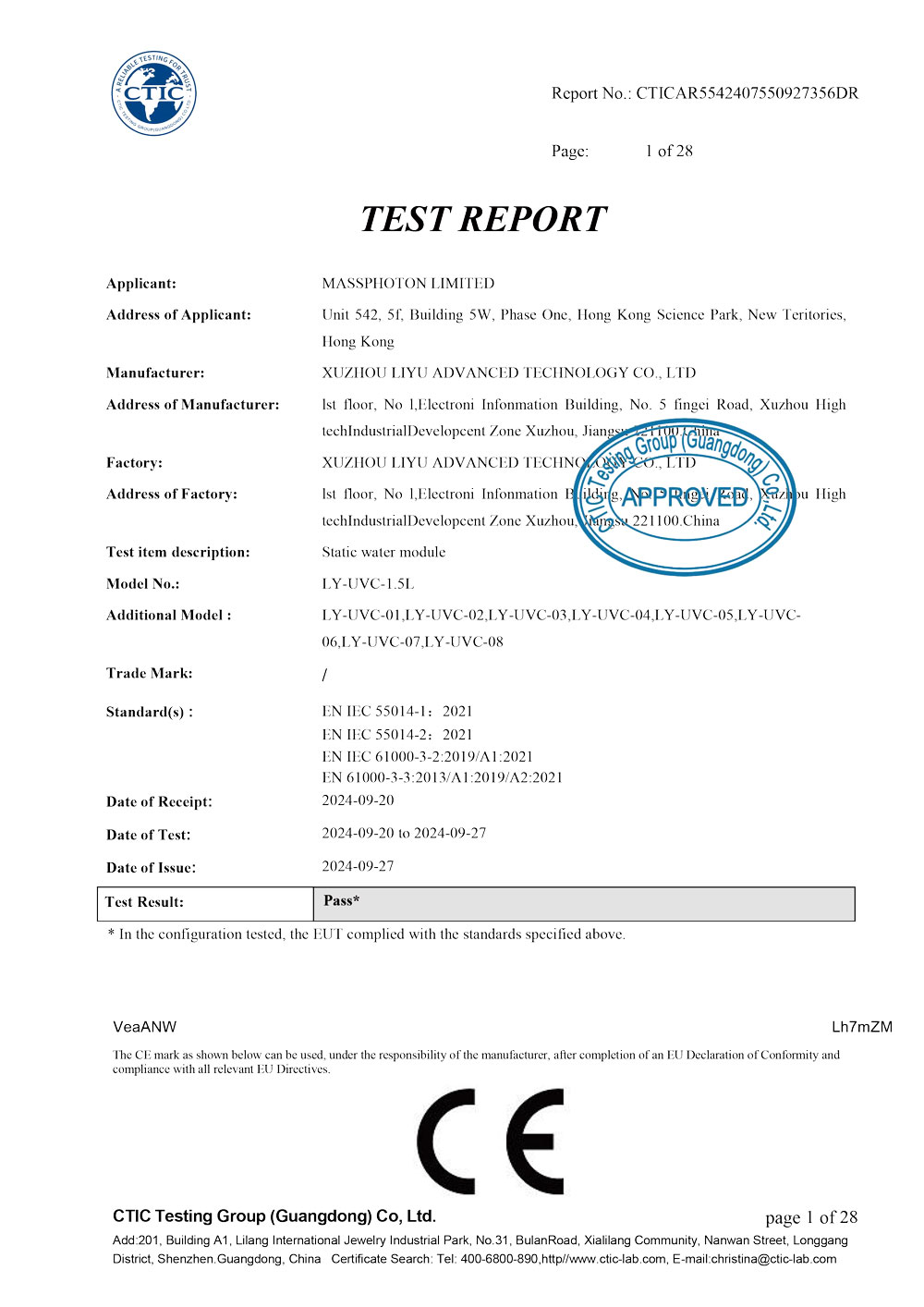

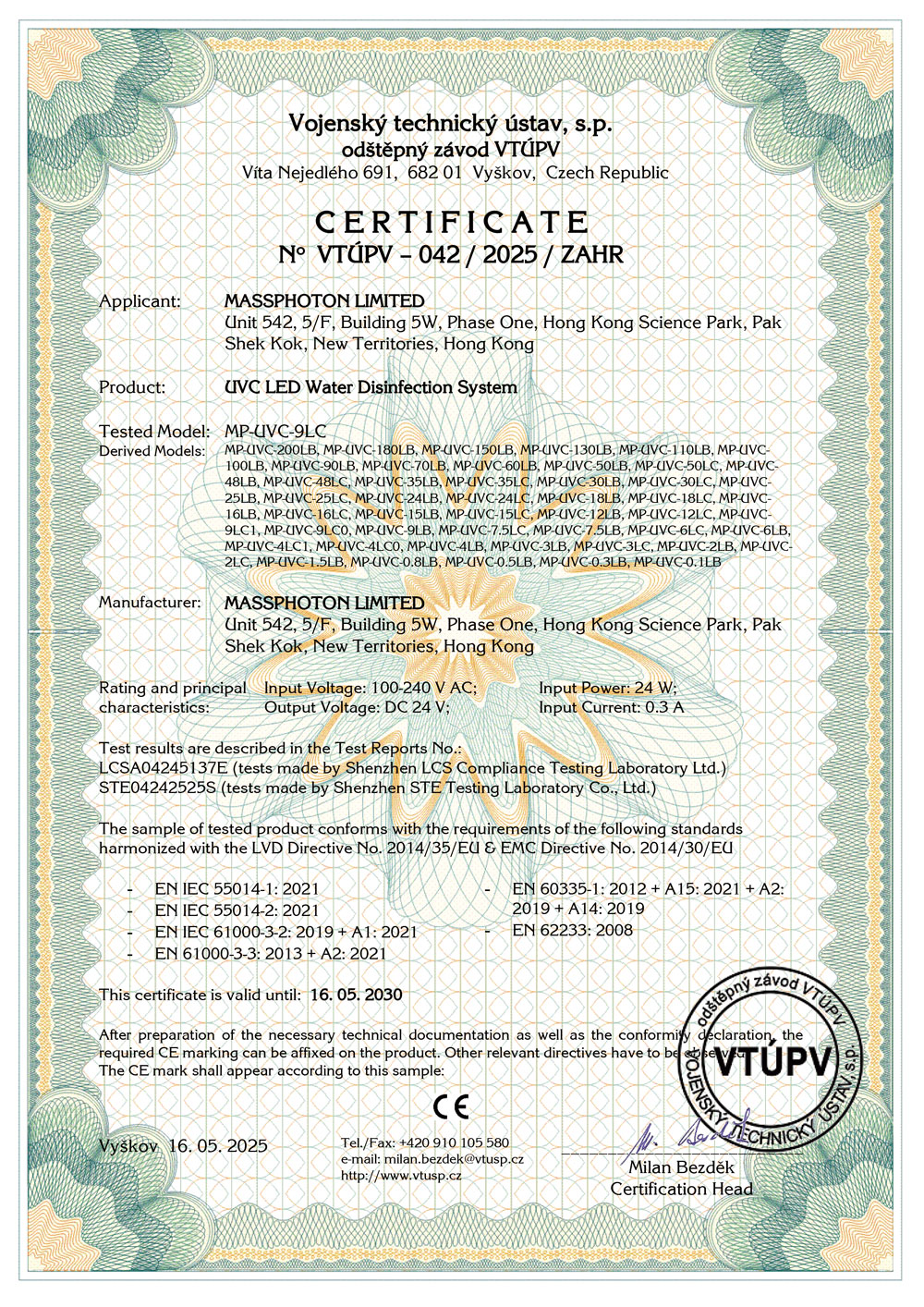

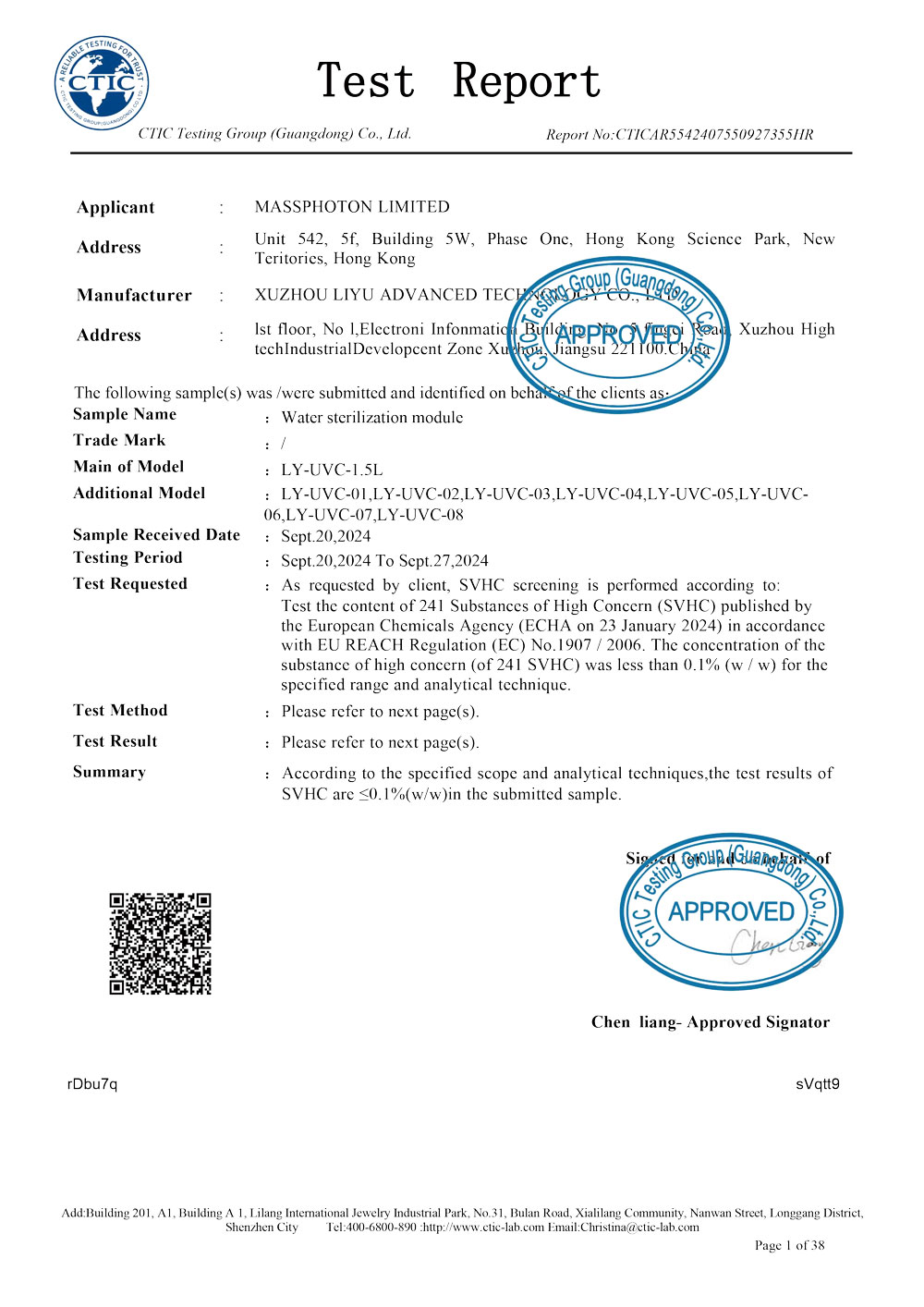

Certificates

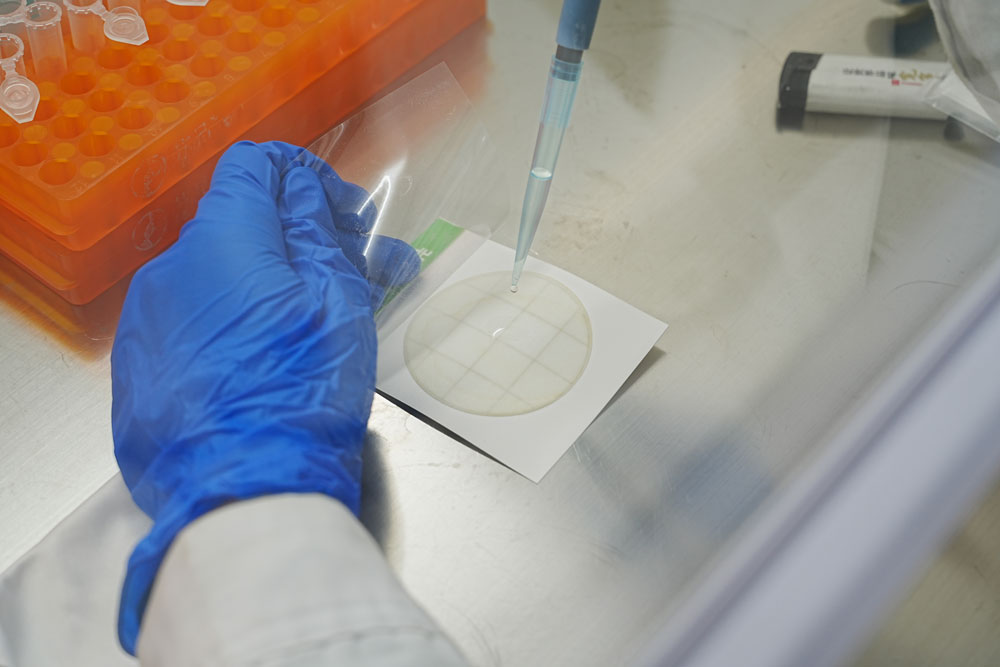

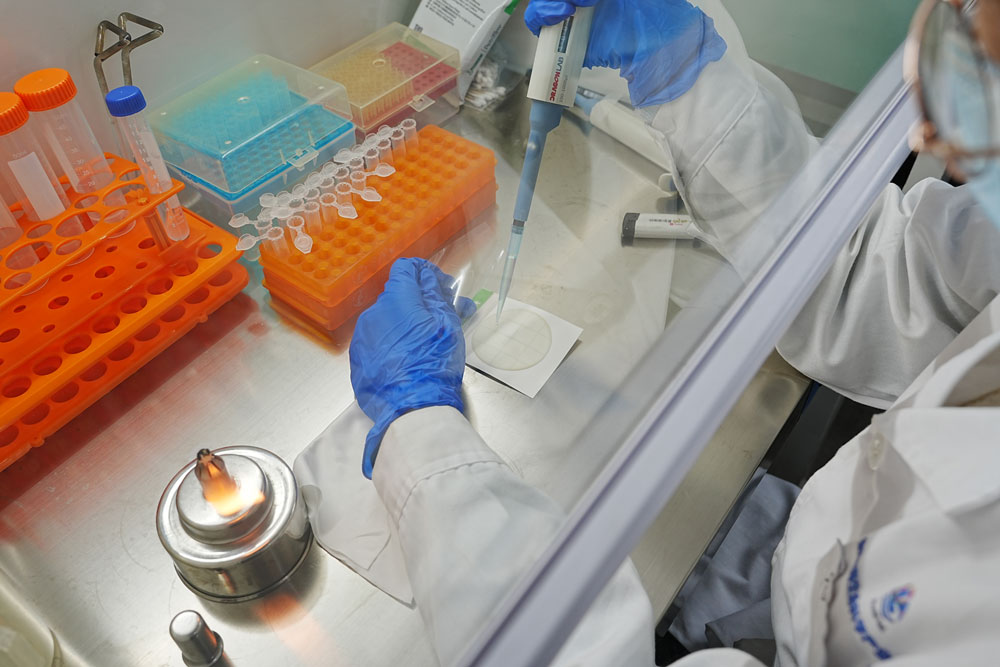

· In-House Testing Expertise- Our dedicated biological testing lab and professional team ensure every product undergoes rigorous in-house disinfection verification with individual test reports.

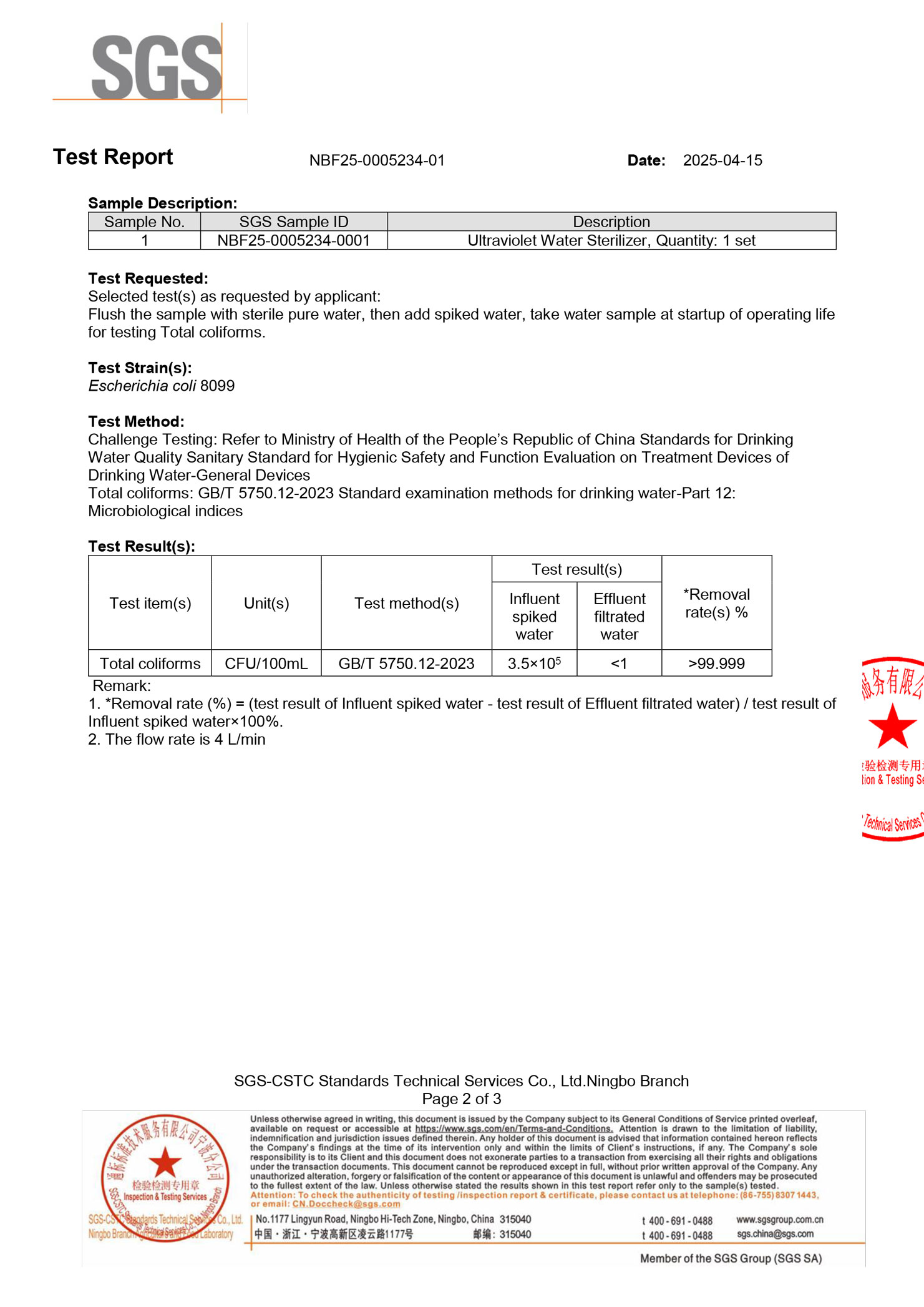

· Third-Party Validation-term partnerships with accredited testing institutions, we provide independent calibration and certification of all results for added reliability, and regularly cross-calibrate our in-house test lab results with accredited third-party labs such as SGS.

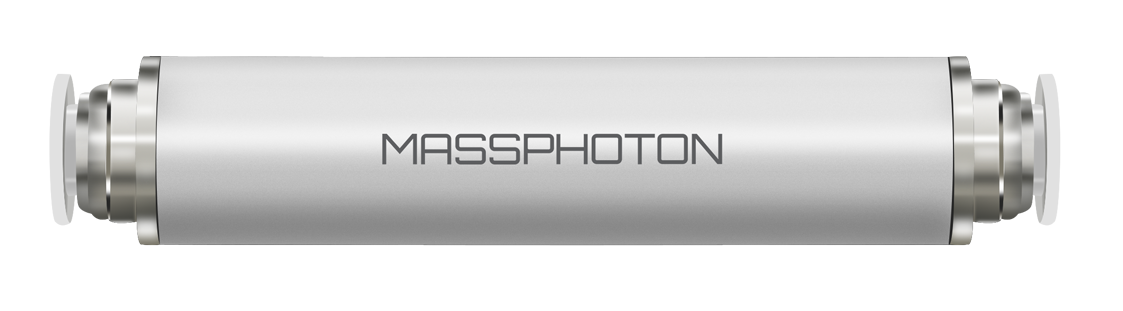

Product Specifications
We always focus on customers, pay attention to their needs, provide high-quality products and excellent services to meet their expectations.
| Model | MP-UVC-2L | MP-UVC-4L | MP-UVC-9L | ||
| Maximum Flow Rate | 2 L/min | 2 L/min | 2 L/min | ||
| Rated voltage | DC 12~24 V | DC 12~24 V | DC 12~24 V | ||
| Input Current | 1~3 A | 1~3 A | 1~3 A | ||
| Connector Type | XH2.54 2P | XH2.54 2P | XH2.54 2P | ||
| Wire Connection | The red wire connects to the positive pole and the black wire connects to negative pole | ||||
| Rated Total Power | 4 W | 6 W | 16 W | ||
| Water Pipe Fitting | 1 /4″ | 1 /4″ | 1 /4″ | ||
| UVC Radiation Flux | 90 mW | 180 mW | 330 mW | ||
| Product size | Φ25 mm * 130 mm | Φ25 mm * 130 mm | Φ25 mm * 130 mm | ||
| UVC LED Emission Wavelength | 270 nm- 280 nm | 270 nm- 280 nm | 270 nm- 280 nm | ||
| LED Lifespan | 10000-25000 hours | 10000-25000 hours | 10000-25000 hours | ||
| Water Proof Rating | IPX 68 | IPX 68 | IPX 68 | ||
| Operation Temperature | 4 ℃~60 ℃ | 4 ℃~60 ℃ | 4 ℃~60 ℃ | ||
| Rated Inlet Water Pressure | 0.3 MPa | 0.3 MPa | 0.3 MPa | ||
| Maximum Inlet Water Pressure | 0.7 MPa | 0.7 MPa | 0.7 MPa | ||
| Exterior Material | Aluminum | Aluminum | Aluminum | ||
| Disinfection Efficacy | (*) Up to 99.999% or 5.0 Log | (*) Up to 99.999% or 5.0 Log | (*) Up to 99.999% or 5.0 Log | ||
| pH | UV transmittance | Turbidity | Temperature | TDS |
| 7.5+0.5 | 98+2% | < 1.0 NTU | 20+2.5°C(68±5 °F) | 200 to 500 mg/L |
Address the Core Pain Points of Traditional Disinfection
The UVC LED water disinfection system addresses the core pain points of traditional disinfection solutions through technological innovation and environmental breakthroughs:
For users
Achieve higher water quality safety at a lower cost, safeguarding family health;
For the industry
Drive the mercury-free process, helping businesses comply with global environmental regulations;
For the environment
For the environment: Reduce chemical pollution and energy waste at the source, promoting sustainable development.
FAQ
1. What is UVC water disinfection and how does it work?
UVC water disinfection utilizes ultraviolet light in the UVC wavelength range (200-280nm) to disrupt the DNA and RNA of microorganisms like bacteria, viruses, and protozoa. This prevents them from reproducing and causing infections, effectively neutralizing pathogens without adding chemicals. The process is physical, making it a chemical-free disinfection method suitable for various water applications.
2. Is UVC water disinfection safe for household use?
3. How effective is UVC disinfection against waterborne pathogens?
4. Does UVC water disinfection require any chemicals?
5. How does UVC disinfection compare to chlorination?
6. Does water turbidity affect UVC disinfection performance?
7. How energy-efficient are UVC water disinfection systems?
