Medical-grade water purification and treatment systems
Removes 99.999% of bacteria and viruses from drinking water, preventing harmful microorganisms from contaminating the water.
Efficient water sterilization to promote health and safety

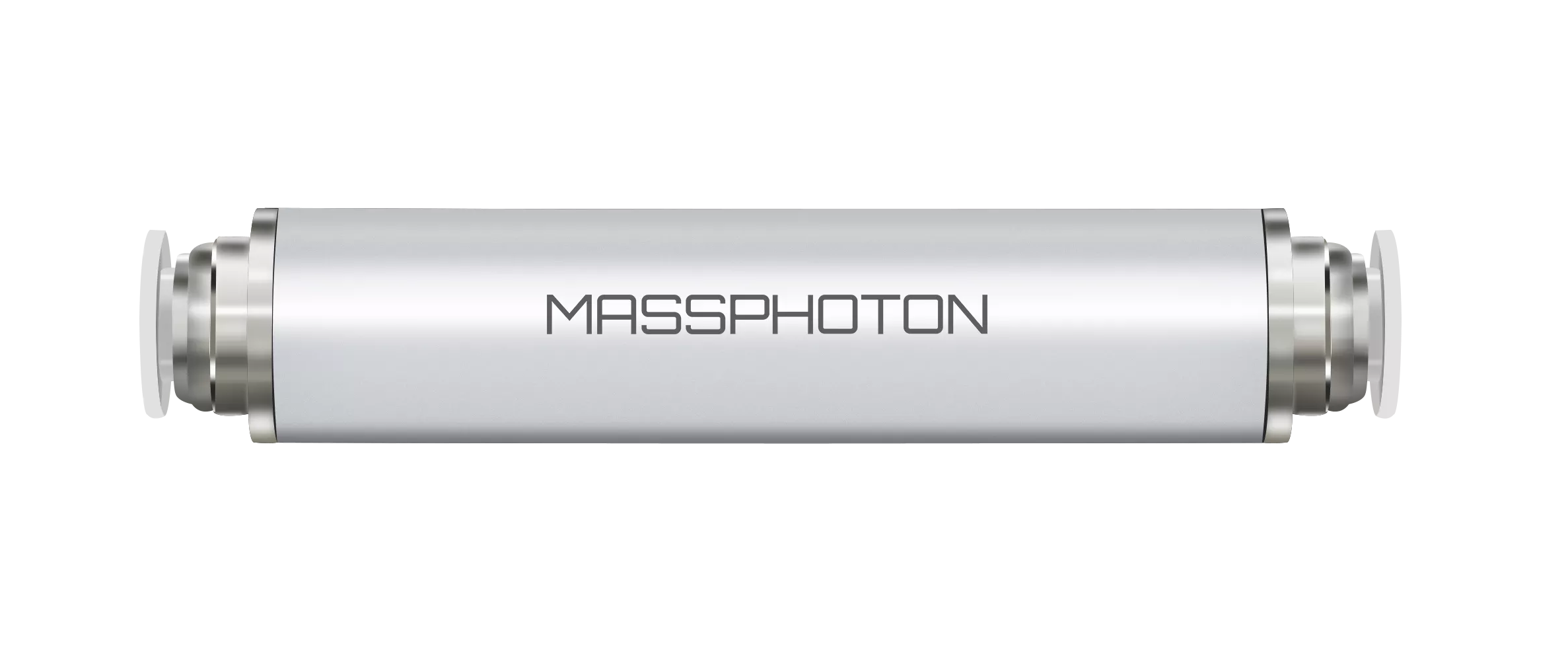

UVC LED Water Sterilizer

This UVC LED module provides a powerful 270-280nm wavelength to effectively kill bacteria, viruses, and other microorganisms in flowing water, ensuring a safe and healthy drinking experience.
High-efficiency Sterilization

Employing the 270 - 280nm UVC band, it achieves a sterilization rate as high as 99.999%. It can inactivate common pathogens like Escherichia coli, Salmonella, and influenza viruses.
Instant Flow-by Disinfection

Water is purified the moment it passes through, bypassing the need for storage or extended processing, ensuring hassle-free usage.
Safe and Durable

The fully sealed, IPX68-rated UV-proof design with heat and corrosion resistance ensures safe, reliable operation in harsh water conditions.
Long Lifespan and Low Energy

Energy-saving UVC LED lasts 20,000+ hours with 67% lower power consumption than traditional solutions, it's energy-efficient and ideal for long-term use.
100% Sterilization Efficacy Test

·  In-House Testing Expertise- Our dedicated biological testing lab and professional team ensure every product undergoes rigorous in-house disinfection verification with individual test reports.
· Third-Party Validation-term partnerships with accredited testing institutions, we provide independent calibration and certification of all results for added reliability, and regularly cross-calibrate our in-house test lab results with accredited third-party labs such as SGS.

Application Scenarios
Widely used in household, commercial and industrial water purification fields.

Discover Products
Water Disinfection Product Solutions Based on NitroSteriX™
MP-UVC-9L UVC-LED Flowing Water Disinfection Module
Flowing Water
MP-UVC-9L UVC-LED Flowing Water Disinfection Module
MP-UVC-4L UVC-LED Flowing Water Disinfection Module
Flowing Water
MP-UVC-4L UVC-LED Flowing Water Disinfection Module
MP-UVC-2L UVC-LED Flowing Water Disinfection Module
Flowing Water
MP-UVC-2L UVC-LED Flowing Water Disinfection Module
No. Specifications
1 Model MP-UVC-2L MP-UVC-4L MP-UVC-9L
2 Maximum Flow Rate 2 L/min 4 L/min 9 L/min
3 Rated voltage DC 12~24 V DC 12~24 V DC 12~24 V
4 Input Current 1~3 A 1~3 A 1~3 A
5 Connector Type XH2.54 2P XH2.54 2P XH2.54 2P
6 Wire Connection The red wire connects to the positive pole and the black wire connects to negative pole
7 Rated Total Power 4 W 6 W 16 W
8 Water Pipe Fitting 1 /4″ 1 /4″ 3 /8″
9 UVC Radiation Flux 90 mW 180 mW 330 mW
10 Product size Φ25 mm * 130 mm Φ25 mm * 130 mm Φ25 mm * 130 mm
11 UVC LED Emission Wavelength 270 nm- 280 nm 270 nm- 280 nm 270 nm- 280 nm
12 LED Lifespan 10000-25000 hours 10000-25000 hours 10000-25000 hours
13 Water Proof Rating IP 68 IP 68 IP 68
14 Operation Temperature 4 ℃~60 ℃ 4 ℃~60 ℃ 4 ℃~60 ℃
15 Rated Inlet Water Pressure 0.3 MPa 0.3 MPa 0.3 MPa
16 Maximum Inlet Water Pressure 0.7 MPa 0.7 MPa 0.7 MPa
17 Exterior Material Aluminum Aluminum Aluminum
18 Disinfection Efficacy (*) Up to 99.999% or 5.0 Log (*) Up to 99.999% or 5.0 Log (*) Up to 99.999% or 5.0 Log
(*) The actual sterilization efficiency subjects to the water quality.
The above test results are based on the following test conditions with test strain of Escherichia coli (8099), with 5 × 104 to 5 × 105 CFU/mL dechlorinated sterile test water
pH 7.5+0.5 Turbidity < 1.0 NTU TDS 200 to 500 mg/L
UV transmittance 98+2% Temperature 20+2.5°C(68±5 °F)
