Mercury-free UVC Water Disinfection
Compact, Mercury-Free, and Highly Efficient Water Disinfection Technology
We are proud to present our high-quality product series that have passed authoritative certifications and 100% sterilization tests. Not only do we offer standardized premium products, but we also focus on customizing exclusive UV-C LED solutions according to your specific water purification needs. Whether you require compact terminal disinfection equipment or high-flow integrated systems, our professional team is always on standby to provide you with comprehensive technical support and services.
100% Sterilization
Efficacy Test
Solving Key Challenges for Integrators
Designed with Integrators in Mind – Addressing Real-World Challenges from Certification to Compact Integration
“We need a compact sterilization module that works with low flow rates.”
Our solution is optimized for medium-volume residential and commercial systems, and offers low-pressure drop performance—ideal for integration in water dispensers and countertop purifiers.
“We want mercury-free, RoHS-compliant technology.”
“We need detailed documentation to speed up our certification process.”
“What about lifecycle and degradation?”
Let’s Talk About Your Project
Looking for a reliable UVC water disinfection module supplier?
Get in touch today for technical datasheets, pricing, and samples.
Product list
Mercury-free UVC LEDs (270-280nm wavelength). Disinfection rate up to 99.999% or 5.0 log. (Actual performance may vary depending on water quality)
ProductAdvantages
MASSPHOTON's commercial UVC-LED in-line water disinfection modules are equipped with independently developed high-performance UVC-LED devices and unique structural designs. Compared with traditional "mercury" lamp solutions, they feature higher disinfection efficiency, better stability, faster response speed, and a more compact size. The product is easy to install, environmentally friendly and energy-efficient, and significantly outperforms similar products in the industry in terms of service life and long-term disinfection effectiveness.
-
01 Efficient Sterilization, Ensuring Water Quality Safety
More >>+High Sterilization Rate: Laboratory data and practical applications of the UVC LED water disinfection module show that it can achieve a sterilization rate of 99.999% or even higher in a short time. It has an extremely high inactivation rate against common harmful pathogens such as Escherichia coli, Salmonella, and influenza viruses, providing strong water quality safety guarantee for various water usage scenarios.
Low Attenuation Rate: MASSPHOTON independently researches and produces UVC LED chips. Relying on advanced light source technology, the light attenuation is minimal throughout the whole life cycle, the sterilization efficiency attenuates slowly, and the high sterilization rate can still be maintained after long-term use.
-
02 Low Operation and Maintenance Costs, Reducing Operational Investment
More >>+Long service life: Compared with traditional mercury lamps and other water disinfection methods, the service life of UVC LED can be as long as 20,000 hours. It also supports frequent start-stop, reducing the cost and maintenance workload of frequent light source replacement, and lowering the overall operational cost of the equipment.
Flexible integration: The UVC LED water disinfection module is small in size, compact in shape, and flexible in design. It can realize the integration of water disinfection function without major modifications to the original equipment structure, saving equipment space and design costs.
Built-in circuit protection: No complicated power supply is required, and the built-in circuit protection function simplifies the installation and the construction of the power supply system, reducing initial investment and later circuit maintenance costs.
Acousto-optic early warning system: Equipped with an acousto-optic early warning system, abnormal problems are monitored in real time and fed back promptly, facilitating quick troubleshooting and handling, reducing the burden of manual inspection, and improving maintenance efficiency.
-
03 Energy Saving and Low Consumption, Enhancing Economic Benefits

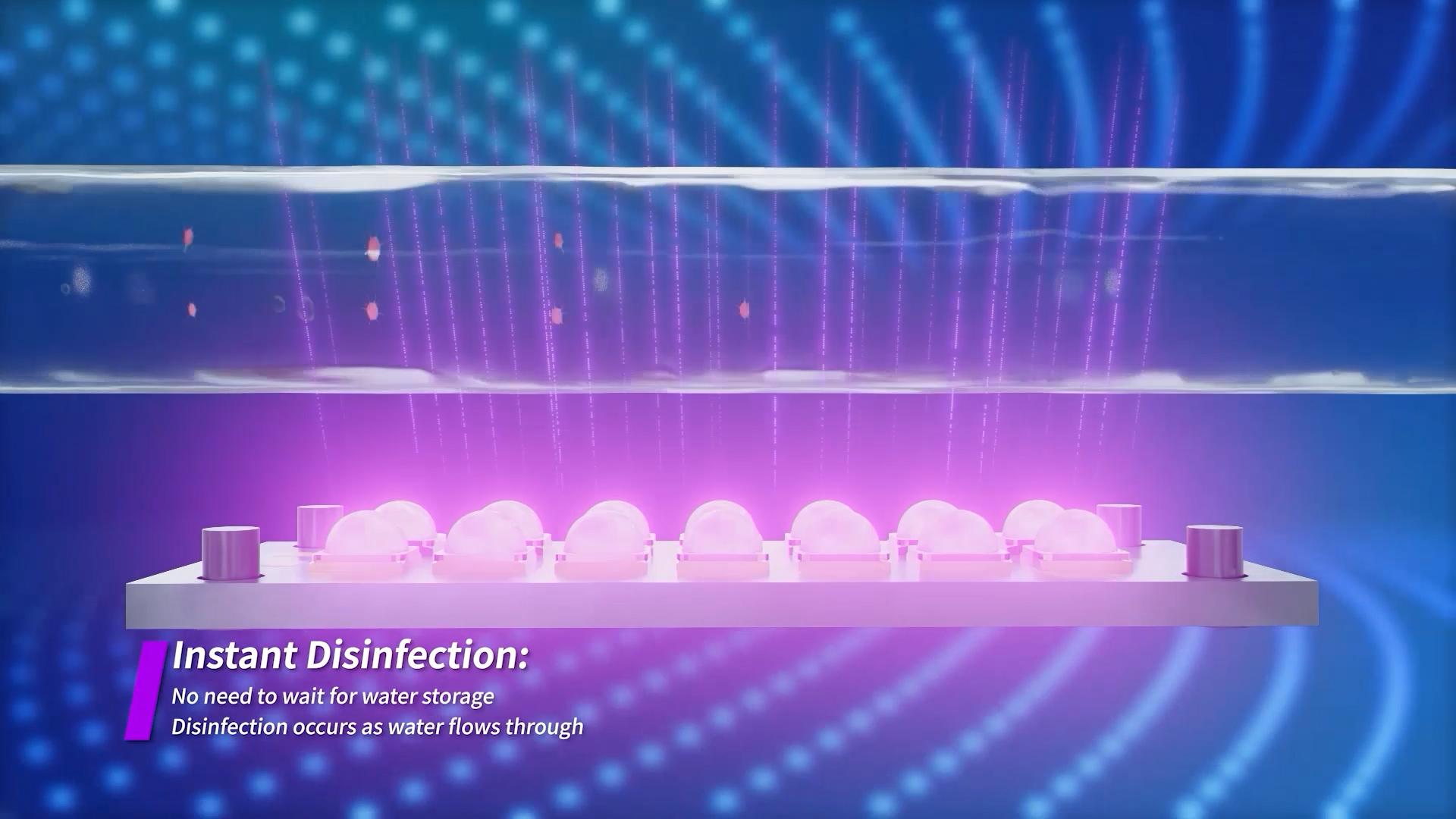

More >>+Instant start-stop: It starts quickly, can instantly reach 100% power output without preheating, and the UVC LED has concentrated heat and low temperature, no additional water cooling system is needed, avoiding energy waste during preheating and cooling of traditional lamps.
Low power consumption operation: The unit energy consumption of the UVC LED module is much lower than that of traditional mercury lamps, which can significantly reduce daily electricity costs while maintaining high sterilization efficiency.
DC drive: It can be adapted to low-voltage DC power supply. Compared with mercury lamp systems that need to be equipped with ballasts and high-voltage drivers, the UVC LED module can be directly integrated into the existing DC system, reducing conversion losses.
-
04 Safety and Environmental Protection, Practicing Green Concepts
More >>+No ultraviolet leakage: Adopting a fully enclosed design, the ultraviolet light source is sealed in the shell, effectively preventing ultraviolet leakage and ensuring the safety of operators and the surrounding environment.
0-mercury environmental protection technology: As a purely physical disinfection method, UVC LED water disinfection does not add any chemical agents, avoiding the risk of secondary pollution. It does not contain mercury and other harmful substances, and will not pollute the environment during use and waste disposal, conforming to the current development trend of green environmental protection.
-
05 Intelligent Upgrade, Realizing Efficient Management
More >>+Water Quality Detection: Integrating basic water quality detection functions such as temperature and TDS for convenient mastery of water quality data.
Intelligent Interconnection Management: Equipped with an IoT module to realize remote monitoring and intelligent management of equipment, making water usage more convenient and intelligent.
Product Application Scenarios
From Household Health to Professional Fields: Mercury-Free Water Treatment Solutions
Household Water Dispensers and Purifiers
Bathroom Water Systems
Washing Machines and Dishwashers
Laboratory and Medical Purified Water Systems
Mobile Scenarios (RVs, Yachts)
Certificates
· In-House Testing Expertise- Our dedicated biological testing lab and professional team ensure every product undergoes rigorous in-house disinfection verification with individual test reports.
· Third-Party Validation-term partnerships with accredited testing institutions, we provide independent calibration and certification of all results for added reliability, and regularly cross-calibrate our in-house test lab results with accredited third-party labs such as SGS.
Product Specifications
We always focus on customers, pay attention to their needs, provide high-quality products and excellent services to meet their expectations.
| Model | MP-UVC-2L | MP-UVC-4L | MP-UVC-9L | ||
| Maximum Flow Rate | 2 L/min | 2 L/min | 9 L/min | ||
| Rated voltage | DC 12~24 V | DC 12~24 V | DC 12~24 V | ||
| Input Current | 1~3 A | 1~3 A | 1~3 A | ||
| Connector Type | XH2.54 2P | XH2.54 2P | XH2.54 2P | ||
| Wire Connection | The red wire connects to the positive pole and the black wire connects to negative pole | ||||
| Rated Total Power | 4 W | 6 W | 16 W | ||
| Water Pipe Fitting | 1 /4″ | 1 /4″ | 3/8″ | ||
| UVC Radiation Flux | 90 mW | 180 mW | 330 mW | ||
| Product size | Φ25 mm * 130 mm | Φ25 mm * 130 mm | Φ25 mm * 130 mm | ||
| UVC LED Emission Wavelength | 270 nm- 280 nm | 270 nm- 280 nm | 270 nm- 280 nm | ||
| LED Lifespan | 10000-25000 hours | 10000-25000 hours | 10000-25000 hours | ||
| Water Proof Rating | IPX 68 | IPX 68 | IPX 68 | ||
| Operation Temperature | 4 ℃~60 ℃ | 4 ℃~60 ℃ | 4 ℃~60 ℃ | ||
| Rated Inlet Water Pressure | 0.3 MPa | 0.3 MPa | 0.3 MPa | ||
| Maximum Inlet Water Pressure | 0.7 MPa | 0.7 MPa | 0.7 MPa | ||
| Exterior Material | Aluminum | Aluminum | Aluminum | ||
| Disinfection Efficacy | (*) Up to 99.999% or 5.0 Log | (*) Up to 99.999% or 5.0 Log | (*) Up to 99.999% or 5.0 Log | ||
| pH | UV transmittance | Turbidity | Temperature | TDS |
| 7.5+0.5 | 98+2% | < 1.0 NTU | 20+2.5°C(68±5 °F) | 200 to 500 mg/L |
Address the Core Pain Points of Traditional Disinfection
The UVC LED water disinfection system addresses the core pain points of traditional disinfection solutions through technological innovation and environmental breakthroughs:
For users
Achieve higher water quality safety at a lower cost, safeguarding family health;
For the industry
Drive the mercury-free process, helping businesses comply with global environmental regulations;
For the environment
For the environment: Reduce chemical pollution and energy waste at the source, promoting sustainable development.
FAQ
1. What is UVC water disinfection and how does it work?
UVC water disinfection utilizes ultraviolet light in the UVC wavelength range (200-280nm) to disrupt the DNA and RNA of microorganisms like bacteria, viruses, and protozoa. This prevents them from reproducing and causing infections, effectively neutralizing pathogens without adding chemicals. The process is physical, making it a chemical-free disinfection method suitable for various water applications.
2. Is UVC water disinfection safe for household use?
3. How effective is UVC disinfection against waterborne pathogens?
4. Does UVC water disinfection require any chemicals?
5. How does UVC disinfection compare to chlorination?
6. Does water turbidity affect UVC disinfection performance?
7. How energy-efficient are UVC water disinfection systems?
8. How does UVC LED disinfection compare to traditional mercury lamp?
Get a Free Sample
（UVC LED Water Disinfection Module）
