MP-UVC-4LC UVC LED Water Disinfection system 4L/min


Availability:

Quantity:



Inquire Add to Basket

Removes 99.999% of bacteria and viruses from drinking water, preventing harmful microorganisms from contaminating the water.

Model:
MP-UVC-4LC
Brand:
MASSPHOTON

Product Description

>>Technical Parameters

>> Application Scenarios

>>Product Description

High-efficiency Sterilization

The 270–280nm UVC wavelength provides 99.999% germicidal effectiveness, capable of inactivating pathogens such as E. coli, Salmonella, and influenza viruses.

Instant Flow-by Disinfection

Water is purified the moment it passes through, bypassing the need for storage or extended processing, ensuring hassle-free usage.

Safe and Durable

The fully sealed, IPX68-rated UV-proof design with heat and corrosion resistance ensures safe, reliable operation in harsh water conditions.

Long Lifespan and Low Energy

Energy-saving UVC LED lasts 20,000+ hours with 67% lower power consumption than traditional solutions, it's energy-efficient and ideal for long-term use.

2C场景-MP

资源 24x

>>Technical Parameters

Model	MP-UVC-45LB	MP-UVC-10LB	MP-UVC-4LB	MP-UVC-4LC	MP-UVC-2LB
Rated Flow Rate	45 L/min (12 GPM)	10 L/min (2.6 GPM)	4 L/min (1 GPM)	4 L/min (1 GPM)	2 L/min (0.4 GPM)
Power Adapter input	100-240 V~50/60 Hz	DC 24V	DC 24V	100-240 V~50/60 Hz	DC 24 V
Total Power	43W	7.2 W	5 W	5 W	3 W
Power Supply Method	Adapter	Terminal	Terminal	Adapter	-
UV-C LED Wavelength	270 nm-280 nm	270 nm-280 nm	270 nm-280 nm	270 nm-280 nm	270 nm-280 nm
Product Lifetime	≥ 10,000 Hours	≥ 10,000 Hours	≥ 10,000 Hours	≥ 10,000 Hours	≥ 10,000 Hours
Sterilization Efficiency	Up to 99.999% or 5.0 Log Reduction (*)	Up to 99.999% or 5.0 Log Reduction (*)	Up to 99.999% or 5.0 Log Reduction (*)	Up to 99.999% or 5.0 Log Reduction (*)	Up to 99.999% or 5.0 Log Reduction (*)
Flow Switch	Optional	None	None	Optional	None
Water Pipe Interface Specification	1 Inch Thread	1/2 Inch Thread	1/4" Quick Connect	1/4" Quick Connect	OD 8.5mm Barb
Inlet/Outlet Material	Stainless Steel	Stainless Steel	Stainless Steel	Food-Grade Plastic	POM
Maximum Inlet Pressure	0.8 Mpa (120 psi)	0.4 MPa (60 psi)	0.4 MPa (60 psi)	0.4 MPa (60 psi)	0.2 MPa (30 psi)
Operating Temperature Range	5℃ to 40℃	4℃ to 60℃	4℃ to 60℃	5℃ to 40℃	4℃ to 60℃
Product Dimensions	Φ70 mm × 253 mm (Φ2.8in ×10in)	Φ35 mm × 185 mm (Φ1.4in ×7.3in)	Φ25.4 mm × 130 mm (Φ1in ×5.1in)	Φ42 mm × 252 mm (Φ1.7in ×9.9in)	18 mm × 43 mm ×121 mm (0.7in ×1.7in ×4.8in)
Exterior Material	Aluminum	Aluminum	Aluminum	Stainless Steel	POM

(*) The actual sterilization efficiency subjects to the water quality.

The above test results are based on the following test conditions with test strain of Escherichia coli (8099), with 5 × 10⁴ to 5 × 10⁵ CFU/mL dechlorinated sterile test water

pH	UV transmittance	Turbidity	Temperature	TDS
7.5+/-0.5	98+/-2%	< 1.0 NTU	20+/-2.5℃ (68+/-4.5 ℉)	200 to 500 mg / L

>>Technical Parameters

Daily Drinking Water Disinfection
Integrated with household water purifiers or RO filtration systems to provide final-stage disinfection of tap water, ensuring safe and healthy drinking water at home.

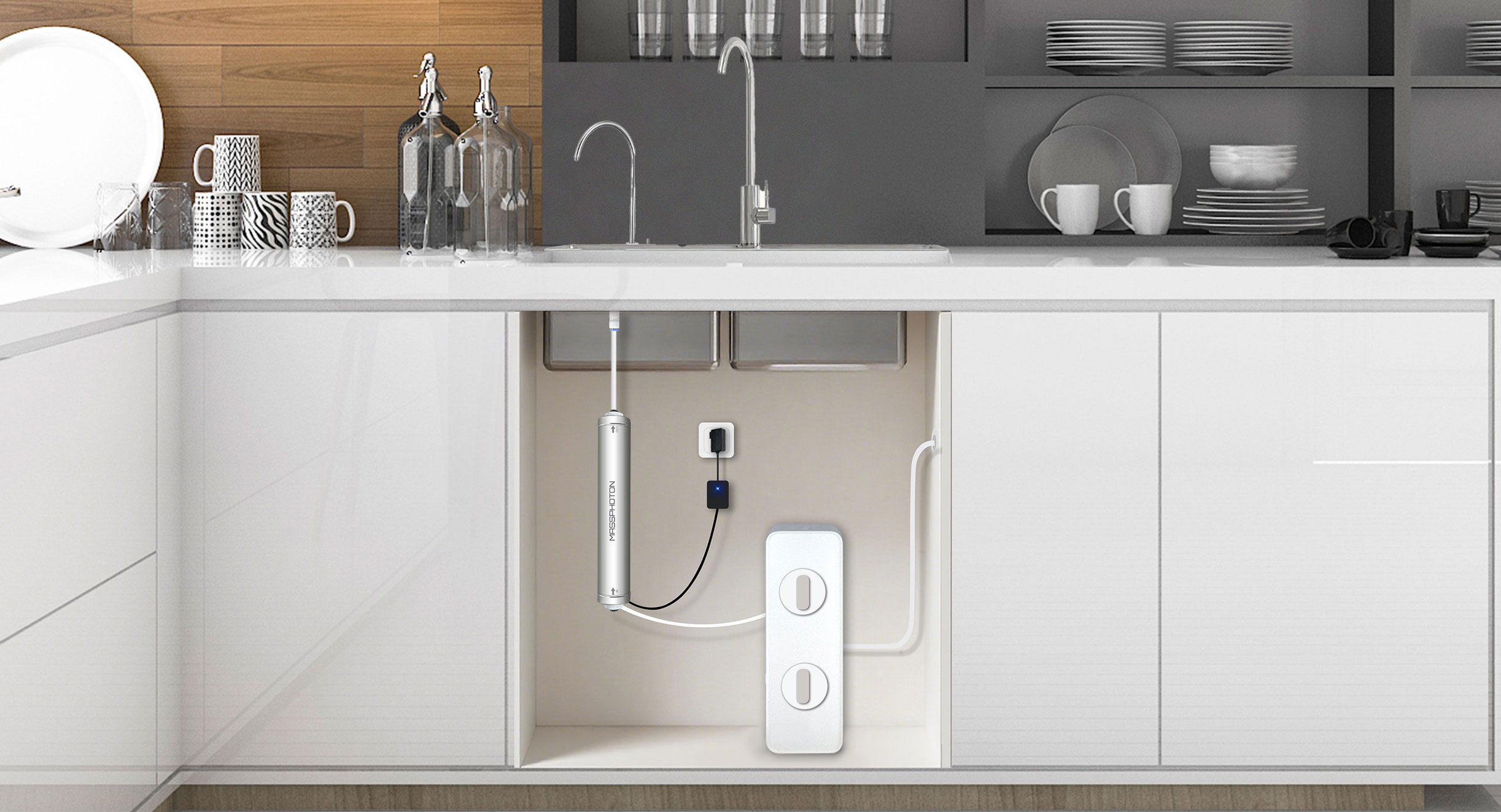

Kitchen Water Disinfection
Installed under the sink for disinfecting water used in washing fruits and vegetables, cleaning utensils, and reducing microorganisms on food surfaces—helping prevent foodborne illnesses.
Bathroom Water Disinfection
Applied in faucets, showerheads, and bathtub refill systems to inhibit mold growth and reduce skin contact with harmful bacteria in daily hygiene routines.
Food & Beverage Service Industry
Used in kitchens of restaurants, hotels, and cafeterias, as well as in direct-drinking water systems of bubble tea and coffee shops to meet food hygiene and safety standards.
Food & Beverage Processing
Integrated into production lines for bottle/jar rinsing and raw water pretreatment, ensuring the disinfection of processing water and compliance with sanitary regulations.
Medical & Laboratory Water
Ideal for use at hospital handwashing stations, medical equipment pre-cleaning, and laboratory glassware rinsing. Effectively minimizes cross-contamination risks and wastewater pollutant spread, meeting stringent infection control requirements.
