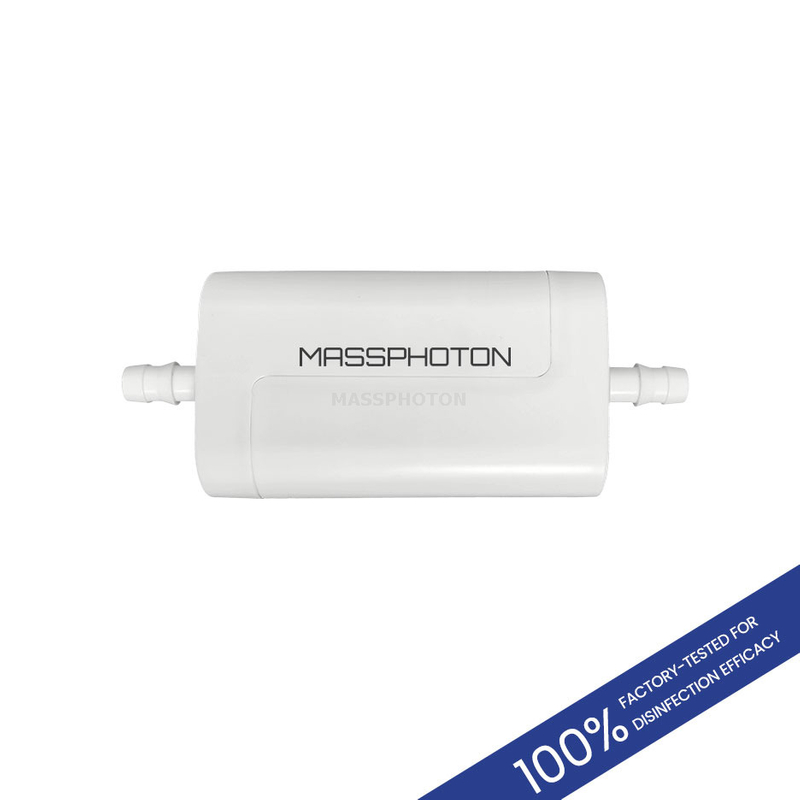

Designed for disinfection, the lN-UVC-1.5LB/4LB uses mercury-free UV-C LEDs (270-280 nm)to deliver up to 99.999% pathogen reduction, ensuring safe, clean water. Every module undergoes 100% efficacy and water tight testing, ensuring quality and durability.

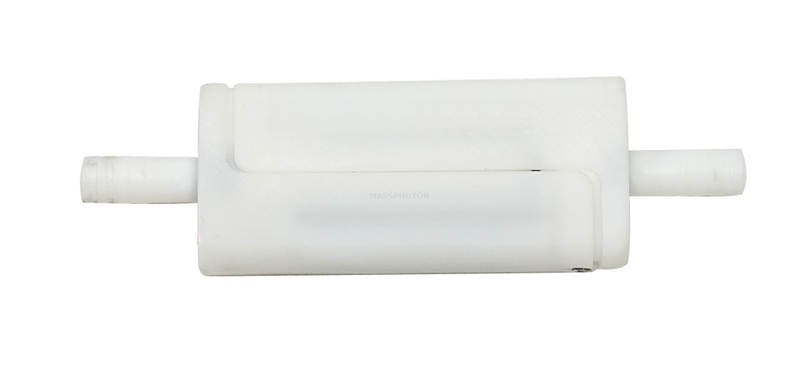

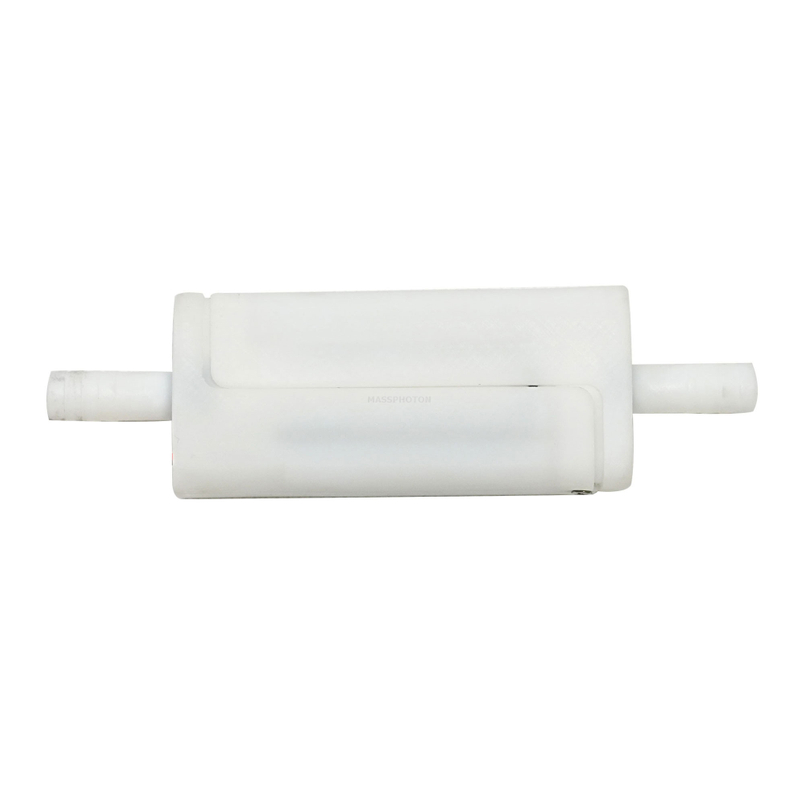

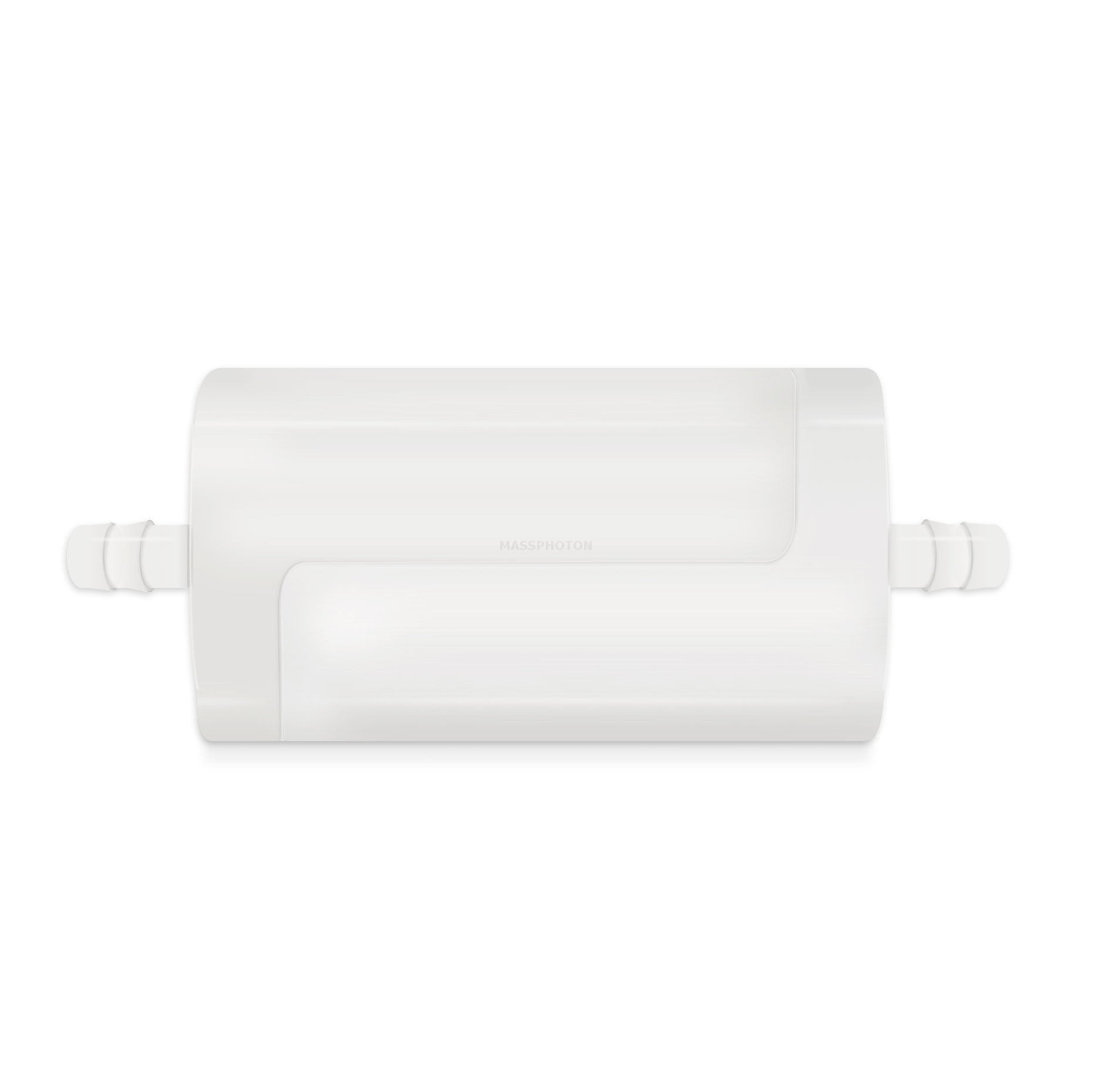

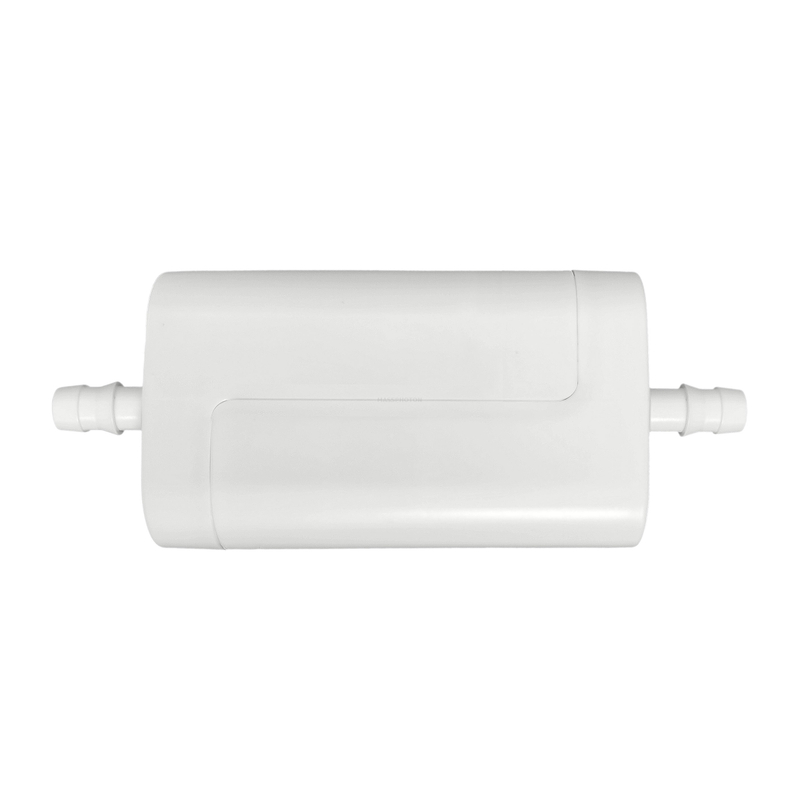

MP-UVC-2LB
MASSPHOTON
Previous:
Next:
>> Product Advantage
>> Technical Parameters
>> Product Uses
>>FAQ
>>Download
>>Introduction
Our UVC LED Flowing Water Disinfection Module is a cutting-edge solution designed to provide efficient and reliable disinfection for flowing water systems. Harnessing the power of UVC LED technology, this module offers a safe, eco-friendly, and cost-effective alternative to traditional water disinfection methods. It is an essential component for ensuring the purity and safety of water in various applications, from drinking water treatment to industrial processes.
• Safe: Mercury-Free UV-C LED Technology-Environmentally friendly, non-toxic, and compliant with global regulations.
• Effective: Achieves up to 99.999% Pathogen Reduction (5.0 log) against bacteria, viruses, and microbes.
• Efficient: Up to 90% energy savings with low power operation, reducing costs
>>Design and Construction
The module features a robust and durable design that is built to withstand the rigors of continuous operation. The UVC LED array is encased in a high-quality, UV-resistant housing that protects the LEDs from damage and ensures optimal performance. The water channel is precision-machined to provide a smooth and even flow of water, minimizing turbulence and ensuring consistent exposure to the UVC light.
The module also incorporates a sophisticated heat dissipation system to keep the UVC LED chips at an optimal operating temperature. This is crucial for maintaining the efficiency and lifespan of the LEDs. The heat sink is designed to dissipate heat quickly and effectively, ensuring that the module operates reliably even under high load conditions.
>>Technical Parameters
Parameter
MP-UVC-200LP
MP-UVC-70LP
MP-UVC-48LC
MP-UVC-45LB
MP-UVC-24LB
MP-UVC-16LB
MP-UVC-10LB
MP-UVC-10LC
MP-UVC-4LB
MP-UVC-4LC
MP-UVC-2LB
Flow Rates
200 L/min ( 53GPM/12TPH)
70 L/min (4.2TPH)
48 L/min (2.8TPH)
45 L/min (12 GPM)
24 L/min (6 GPM)
16 L/min (4 GPM)
10 L/min (2.6 GPM)
10 L/min (2.6 GPM)
4 L/min (1 GPM)
4 L/min (1 GPM)
2 L/min (0.5 GPM)
Electrical
100~240 V 50/60 Hz
100~240 V 50/60 Hz
100~240 V 50/60 Hz
100~240 V 50/60 Hz
DC 24 V
DC 24 V
DC 24 V
100~240 V 50/60 Hz
DC 24 V
100~240 V 50/60 Hz
DC 24 V
Total Power
65 W
49 W
26 W
26 W
11 W
19 W
12 W
12 W
9 W
9 W
3 W
Power Supply Method
Adapter
Adapter
Adapter
Terminal
Terminal
Terminal
Terminal
Adapter
Terminal
Adapter
Terminal
UV-C LED Wavelength
270 nm~280 nm
270 nm~280 nm
270 nm~280 nm
270 nm~280 nm
270 nm~280 nm
270 nm~280 nm
270 nm~280 nm
270 nm~280 nm
270 nm~280 nm
270 nm~280 nm
270 nm~280 nm
Product Lifetime
≥15,000 h
≥15,000 h
≥15,000 h
≥15,000 h
≥15,000 h
≥15,000 h
≥15,000 h
≥15,000 h
≥15,000 h
≥15,000 h
≥15,000 h
Disinfection Efficiency
Up to 99.999% / 5.0 Log Reduction (*)
Up to 99.999% / 5.0 Log Reduction (*)
Up to 99.999% / 5.0 Log Reduction (*)
Up to 99.999% / 5.0 Log Reduction (*)
Up to 99.999% / 5.0 Log Reduction (*)
Up to 99.999% / 5.0 Log Reduction (*)
Up to 99.999% / 5.0 Log Reduction (*)
Up to 99.999% / 5.0 Log Reduction (*)
Up to 99.999% / 5.0 Log Reduction (*)
Up to 99.999% / 5.0 Log Reduction (*)
Up to 99.999% / 5.0 Log Reduction (*)
Flow Switch
Built-in
Built-in
Built-in
None
None
None
None
Built-in
None
Built-in
None
Connection Size
1" MNPT
1" MNPT
1" MNPT
1" MNPT
ZG 1/2"
ZG 1/2"
ZG 1/2"
ZG 1/2"
3/8" Quick Connect
1/4" Quick Connect
OD 8.5mm Barb connector
Inlet/Outlet Material
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Food-Grade Plastic
Food-Grade Plastic
Food-Grade Plastic
Operating Pressure
0.1 to 0.8 MPa (14 to 116 psi)
0.1 to 0.8 MPa (14 to 116 psi)
0.1 to 0.8 MPa (14 to 116 psi)
0.1 to 0.8 MPa (14 to 116 psi)
0.4 MPa (60 psi)
0.4 MPa (60 psi)
0.4 MPa (60 psi)
0.4 MPa (60 psi)
0.4 MPa (60 psi)
0.4 MPa (60 psi)
0.2 MPa (30 psi)
Operating Water Temperature
5℃ to 40℃ (41℉ to 104℉)
5℃ to 40℃ (41℉ to 104℉)
5℃ to 40℃ (41℉ to 104℉)
5℃ to 40℃ (41℉ to 104℉)
4℃ to 60℃ (39.2℉ to 140℉)
4℃ to 60℃ (39.2℉ to 140℉)
4℃ to 60℃ (39.2℉ to 140℉)
4℃ to 60℃ (39.2℉ to 140℉)
4℃ to 60℃ (39.2℉ to 140℉)
5℃ to 40℃ (41℉ to 104℉)
4℃ to 60℃ (39.2℉ to 140℉)
Dimensions
Φ84mm×458mm (Φ3.3in×18in)
Φ84mm×458mm (Φ3.3in×18in)
Φ70mm×338.5mm (Φ2.8in×13.3in)
Φ70mm×253mm (Φ2.76in × 9.96in)
Φ35mm×279mm (Φ1.4in×11in)
Φ35mm×229mm (Φ1.4in×9in)
Φ35mm×185mm (Φ1.38in × 7.3in)
42mm×42mm×225mm (1.7in × 1.7in × 8.9in)
Φ25.4mm×130mm (Φ1in × 5.1in)
Φ42mm×252mm (Φ1.7in × 10in)
18mm×43mm×121mm (0.7in × 1.7in × 4.8in)
(*) The actual sterilization efficiency subjects to the water quality.
The above test results are based on the following test conditions with test strain of Escherichia coli (8099), with 5 × 10⁴ to 5 × 10⁵ CFU/mL dechlorinated sterile test water
pH
UV transmittance
Turbidity
Temperature
TDS
7.5+/-0.5
98+/-2%
< 1.0 NTU
20+/-2.5℃ (68+/-4.5 ℉)
200 to 500 mg / L
>>Application
This UVC LED Flowing Water Disinfection Module is suitable for a wide range of applications. It can be used in drinking water treatment plants to ensure the safety of the water supply. In the food and beverage industry, it can be used to disinfect water used in production processes, preventing contamination and ensuring product quality. It is also applicable in the pharmaceutical industry, where high-purity water is required for manufacturing processes. Additionally, it can be used in swimming pools, spas, and aquaculture systems to maintain water quality and prevent the growth of harmful microorganisms.
>>FAQ
Q: How effective is the UVC LED Flowing Water Disinfection Module in killing all types of microorganisms?
A: Our module is highly effective in killing a wide range of bacteria, viruses, and protozoa. However, the effectiveness may vary depending on the type of microorganism, the initial concentration, and the flow rate of the water. In general, it can achieve a high level of disinfection for most common waterborne pathogens.
Q: Can the module be used with different water flow rates?
A: Yes, the module is designed to be adaptable to different water flow rates. However, it is important to ensure that the flow rate is within the specified range to achieve optimal disinfection results. The residence time of the water in the irradiation zone is a critical factor, and adjusting the flow rate may affect this.
Q: How often do the UVC LED chips need to be replaced?
A: The UVC LED chips have a long lifespan of up to 20,000 hours or more. In most applications, they may not need to be replaced for several years. However, if the module is used in a harsh environment or under heavy usage, the lifespan may be reduced, and replacement may be necessary.
