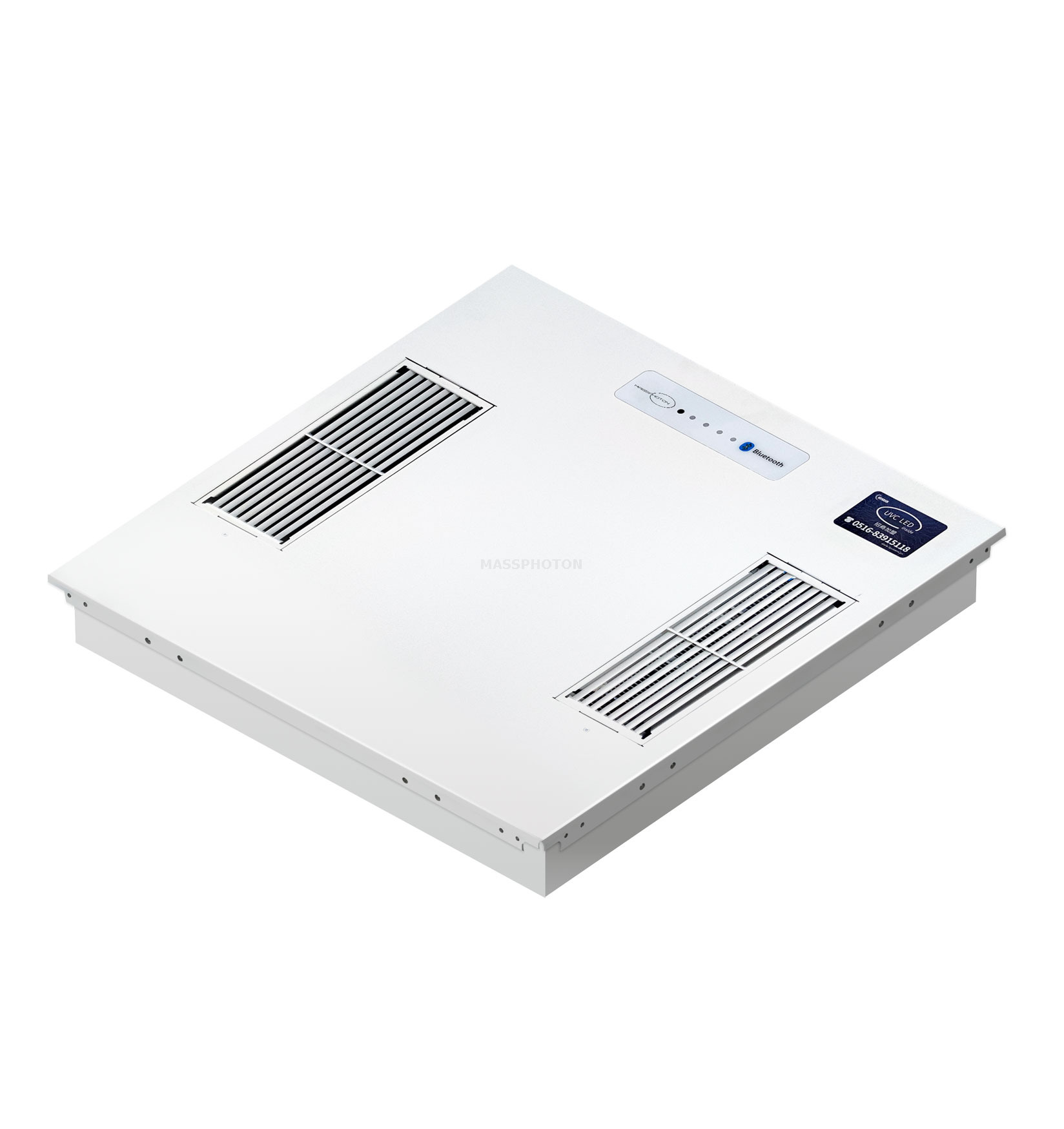

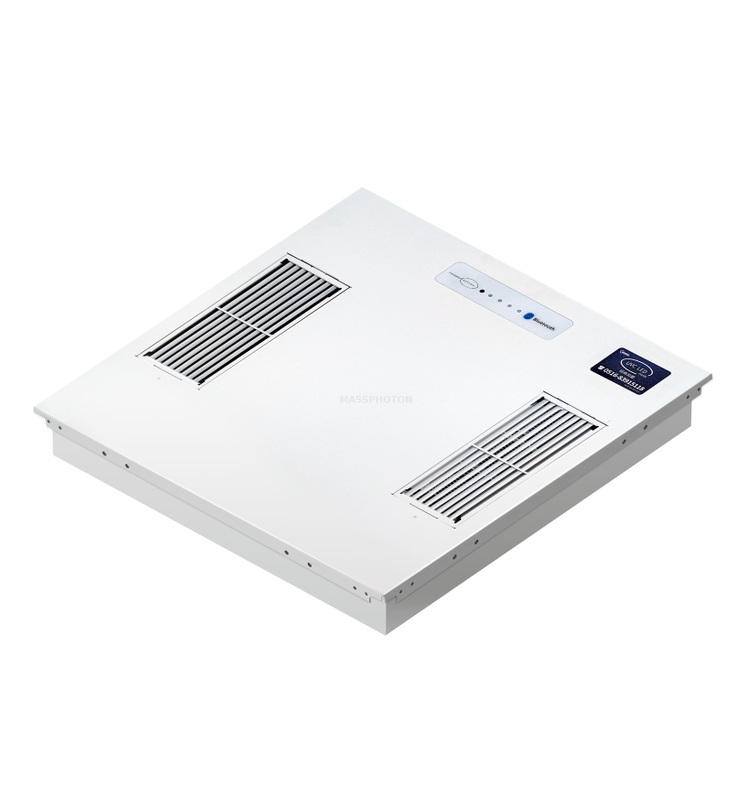

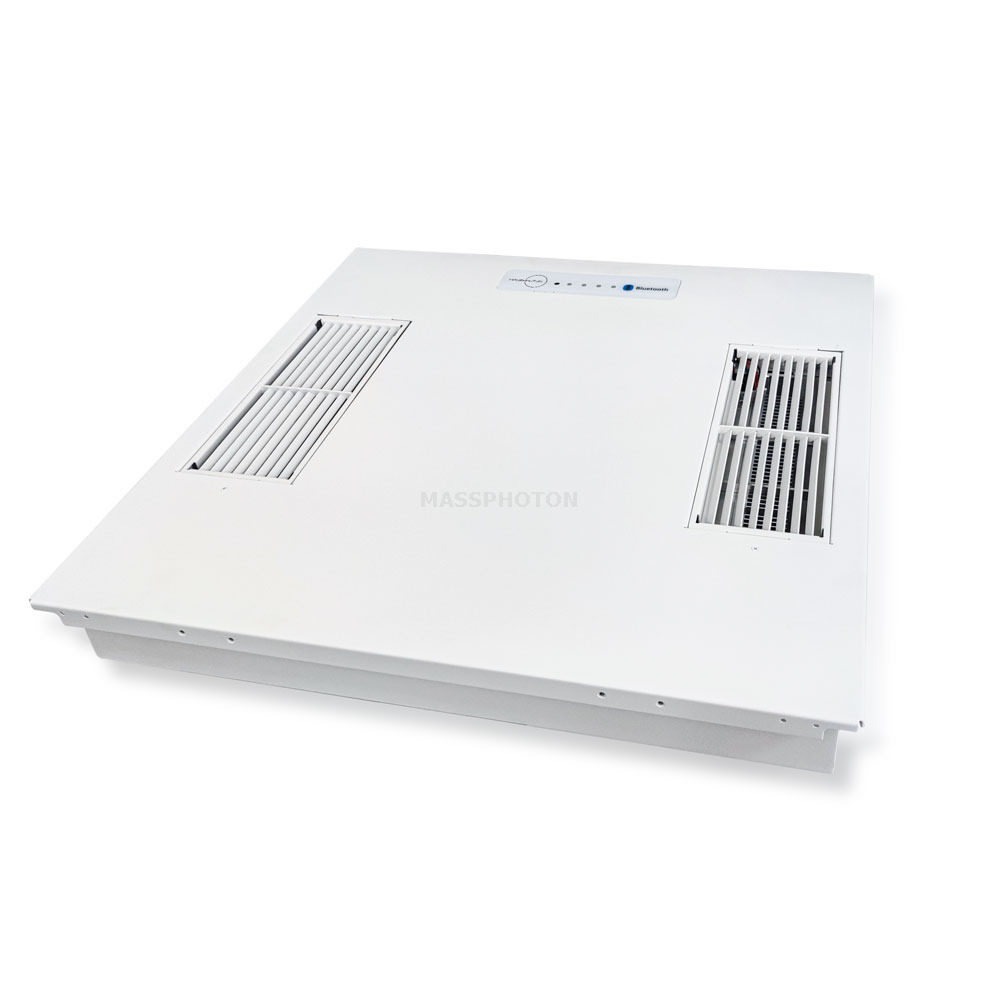

Q6060B Medical-Grade Ceiling-Mounted Air Disinfection System

Name: Q6060B Medical-Grade Ceiling-Mounted Air Disinfection System
Brand: MASSPHOTON
Rating: 5.0 (29 reviews)


Availability:

Quantity:



Inquire Add to Basket

The Q6060B Basic Version is a discreet, ceiling-recessed air disinfection system. It features a compact design that integrates seamlessly into ceiling grids, maximizing valuable floor space.

The unit utilizes a Primary Filter and the core 275nm Deep Ultraviolet UVC LED disinfection module, focusing on high-efficiency sterilization of circulating air, achieving a sterilization rate of > 99.99% .Designed for medical facilities, the system supports remote control, Bluetooth, and APP smart management, utilizing durable industrial fans to ensure efficient air circulation and sustained, low-maintenance performance in continuous operation environments.

Model:
Q6060B
Brand:
MASSPHOTON

>> Product Advantage

>> Technical Parameters

>>Download

>>FAQ

>>Product Overview

Our Medical Grade Ceiling Air Disinfection System is a cutting-edge solution designed to meet the stringent air quality requirements in medical and healthcare settings. Engineered with the latest technology, this device effectively eliminates harmful airborne contaminants, including bacteria, viruses, fungi, and volatile organic compounds (VOCs). The ceiling-mounted design saves valuable floor space while ensuring efficient air circulation and sterilization throughout the room. With a sleek and modern appearance, it seamlessly integrates into any medical environment, providing a reliable and long-lasting solution for maintaining a sterile atmosphere.

生成医院场景图片-(8)

>>Product Features

High-Efficiency Sterilization: 275 nm UVC-LED with high-performance filter delivers dual purification, inactivating microorganisms and removing air pollutants.
Human-Machine Coexistence: No ozone, mercury, or EM radiation; RoHS/REACH compliant for safe, continuous use in occupied spaces.
Low Noise: ≤55 dB operation ensures a quiet, comfortable environment for offices, homes, and classrooms.
Smart Control: Supports remote, Bluetooth (optional 4G), and app control for easy, flexible management.
Flexible Installation: Ceiling-mounted design saves floor space and provides wide-area coverage for quick deployment.
Durable & Energy-Efficient: Long-life components and low-power design ensure reliable, cost-effective performance.

Features

>>Application

1. Hospitals: Ideal for use in operating rooms, intensive care units (ICUs), patient rooms, and waiting areas to prevent the spread of hospital-acquired infections and maintain a sterile environment.

2. Clinics and Medical Offices: Provides a clean and safe air environment for patients and medical staff, reducing the risk of airborne diseases.

3. Dental Clinics: Helps to eliminate dental aerosols and other airborne contaminants, ensuring a hygienic treatment environment.

4. Pharmaceutical Laboratories: Maintains a sterile air environment for the production and handling of pharmaceuticals, preventing contamination.

5. Biomedical Research Facilities: Essential for maintaining a controlled and sterile environment for research activities, protecting samples and researchers from airborne contaminants.

>>Technical Parameters

MASSPHOTON-Q6060 Series of Medical-Grade Ceiling-Mounted Air Disinfection
Product Name(Model)	Q6060B (Basic Version)
Effective Space (m³)	≤100m³/150m³
Disinfection and Sterilization Module	275nm Deep Ultraviolet UVC-LED disinfection module
Sterilization Efficiency	Within the effective space, in 1 hour, > 99.9%
Filter Type	Primary Filter screen or Activated Carbon Filter
Removal of Odors and Formaldehyde	Yes
Air Quality Monitoring	Optional
Number of Wind Speed Levels	3 Levels
Lighting Integration	No
Intelligent Control and Monitoring	Remote control + Bluetooth (4G optional) + APP
Alarm Function	Yes
Automatic Sensing and Dynamic Operation	Optional
Intelligent IoT Management	Optional
Timed Operation	Yes
Reservation Function	Yes
Noise	≤55dB
Input Power Supply	Supports 100 - 240V
Input Power	≤75W
Dimensions and Weight (Length * Width * Thickness)	60cm60cm8.5cm, 16.5Kg
Whole Machine Lifespan	5 Years
Lifespan of the Disinfection Module	> 15,000 Hours
Warranty Period	1 Year

Q6060B-UVC LED Air Disinfection-Product Page.pdf

MASSPHOTON UVC LED Air Disinfection Product manual.pdf

>>FAQ

1. Is the UV sterilization technology safe for humans?

Yes, the UV sterilization technology used in our air sterilizer is safe for humans. The UVC LED are enclosed within the device, and the UV radiation is not exposed to the outside. Additionally, the device is equipped with safety features to prevent accidental exposure to UV radiation.

2. Can the air sterilizer be installed in a small room?

Yes, our Medical Grade Ceiling Air Sterilizer is suitable for installation in both small and large rooms. The device can be adjusted according to the room size and air quality requirements to ensure efficient air sterilization.

3. How long does it take for the air sterilizer to purify the air?

The time required for the air sterilizer to purify the air depends on the room size, air quality, and the settings of the device. Generally, it takes about 30 minutes to 1 hour for the air sterilizer to significantly improve the air quality in a medium-sized room.

4. Does the air sterilizer come with a warranty?

Yes, our Medical Grade Ceiling Air Sterilizer comes with a warranty of 1 years. During the warranty period, we will provide free repair and replacement services for any quality problems caused by the manufacturer.
