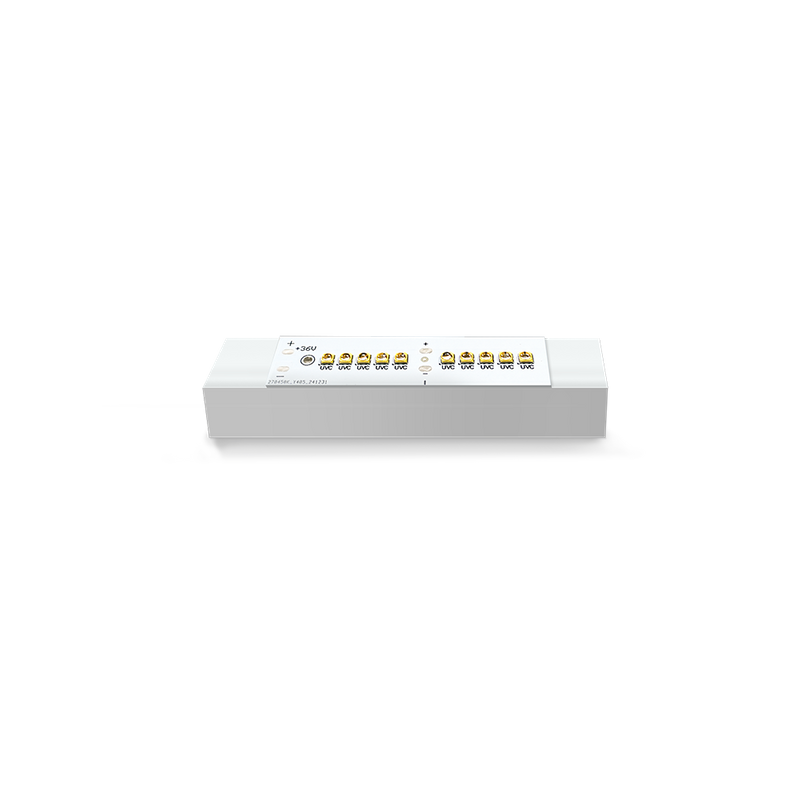

MP-UVCMZ-2T
MASSPHOTON
>> Product Advantage
• Product model: MP-UVCMZ-2T
• Size: 76*20*3.2 mm
• The circuit board uses a 1.6 mm thickened aluminum substrate, which has more efficient heat dissipation and more stable effects.
• The wavelength range of the UVC LED used is 270-280 nm,which has excellent andefficient sterilization and disinfection.
Efficient
Sterilization
Environmental
Friendly
Low
Power
Long
Lifespan
Wide range
of uses
>> Technical Parameters
Model | MP-UV CMZ-2T |
Electric power | 11 W |
Input voltage | 35 V |
Input current | 300~350 mA |
UVC LED Power (per piece) | 30~40 mW |
LED Quantity | 10 pcs |
Radiation flux | 300~400 mW |
Product size | 76*20 mm |
UVC Wavelength | 270-280 nm |
Lamp life | 10000~20000 H |
Notes:
1.The accuracy of radiation flux testing is ± 5%.
2.All tests are conducted under standard conditions.
>> Applications
Disinfection and sterilization of object surface
Water disinfection and sterilization
And other disinfection and sterilization products
