With growing demand for clean and safe drinking water, highly efficient and reliable microbial inactivation technologies have become a core differentiator for high-end water purifiers. Ultraviolet (UV) disinfection, as a chemical-free and highly effective sterilization method, has become the standard in premium systems. Among UV technologies, two main approaches dominate: traditional UV mercury lamps and next-generation UV-C LEDs.
While mercury-based UV lamps have long held the market lead, UV-C LEDs (deep ultraviolet light-emitting diodes) are emerging as the preferred solution, thanks to their compact form factor, instant on/off capability, low maintenance, and environmental friendliness.
For system designers, OEM manufacturers, and engineers, choosing between these two technologies impacts not just sterilization performance, but also system flexibility, operating costs, user experience, and long-term competitiveness. This article offers a detailed multidimensional comparison to support informed decision-making.
1.Wavelength Precision and Disinfection Efficiency

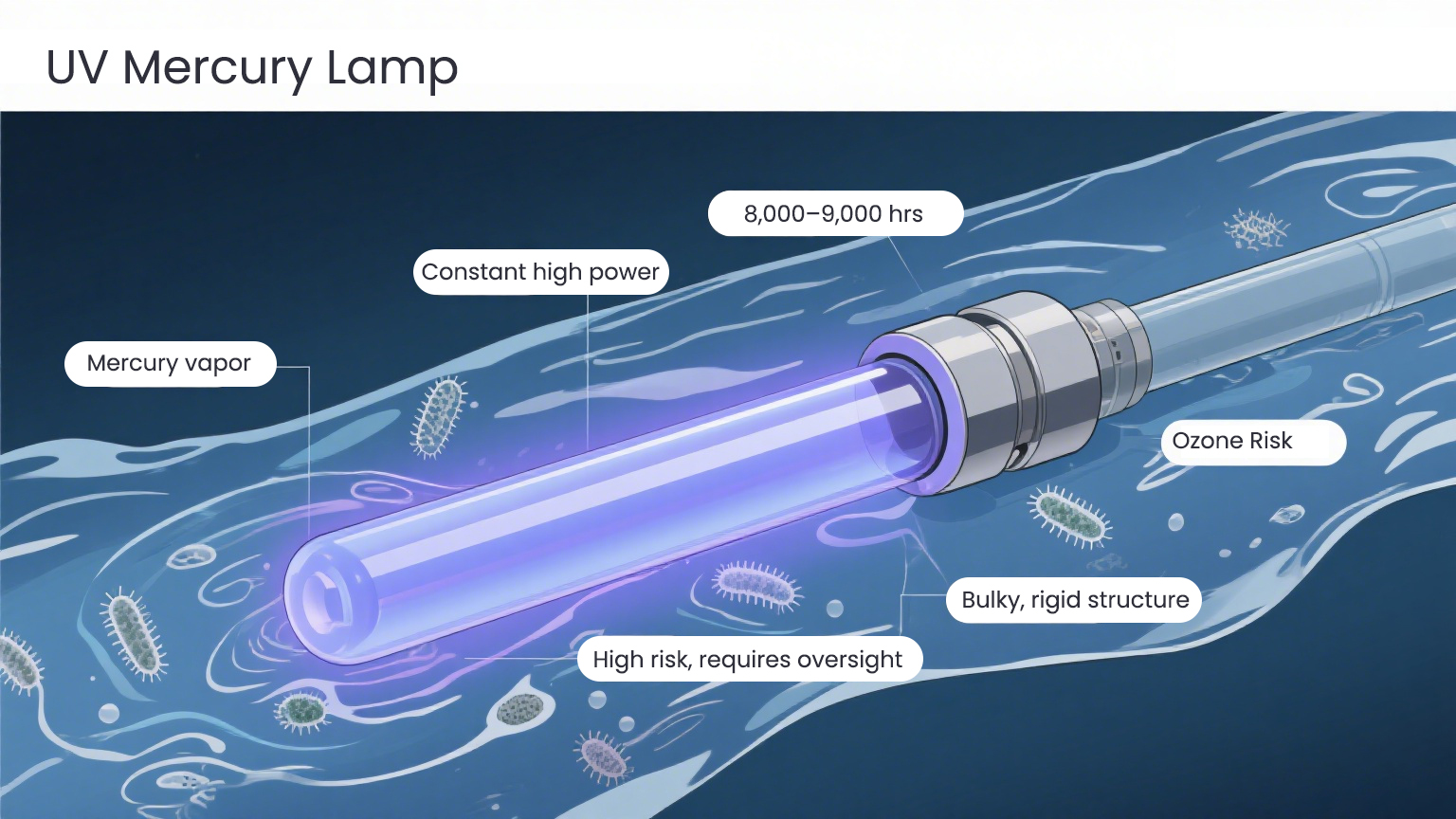

UV Mercury Lamp:
Emits light at ~254 nm, which is near—but not exactly aligned with—the DNA/RNA absorption peak (260–265 nm). As a result, some emitted energy is not effectively utilized, reducing disinfection efficiency. Under standard test conditions, typical inactivation rates for common pathogens like E. coli are around 90–95%. It's less effective against resistant organisms such as Cryptosporidium and Giardia. Also, shorter wavelengths suffer higher absorption in water, reducing usable UV intensity at the point of action.
UV-C LED:
Allows precise emission control within the 265–275 nm range, closely matching DNA absorption peaks. This dramatically improves germicidal efficiency. Laboratory data shows UV-C LEDs can achieve >99.999% (5-log) inactivation of bacteria and viruses—far exceeding traditional mercury lamps.
Technical Insight:
Both technologies can inactivate microorganisms, but UV-C LEDs offer higher energy utilization and targeted effectiveness.
UV Mercury Lamp:
Requires 30 seconds to 2 minutes of preheating due to mercury vapor ionization. It runs at constant power even when water is not flowing, leading to energy waste and two major risks:
Frequent on/off cycles also degrade the electrodes, shortening lamp lifespan.
Scalding Risk: Constant heating can raise the temperature of residual water in the pipes, potentially scalding users upon first use.
Biofouling & Scaling: Prolonged heat exposure promotes scale buildup and microbial biofilm formation, compromising long-term disinfection.

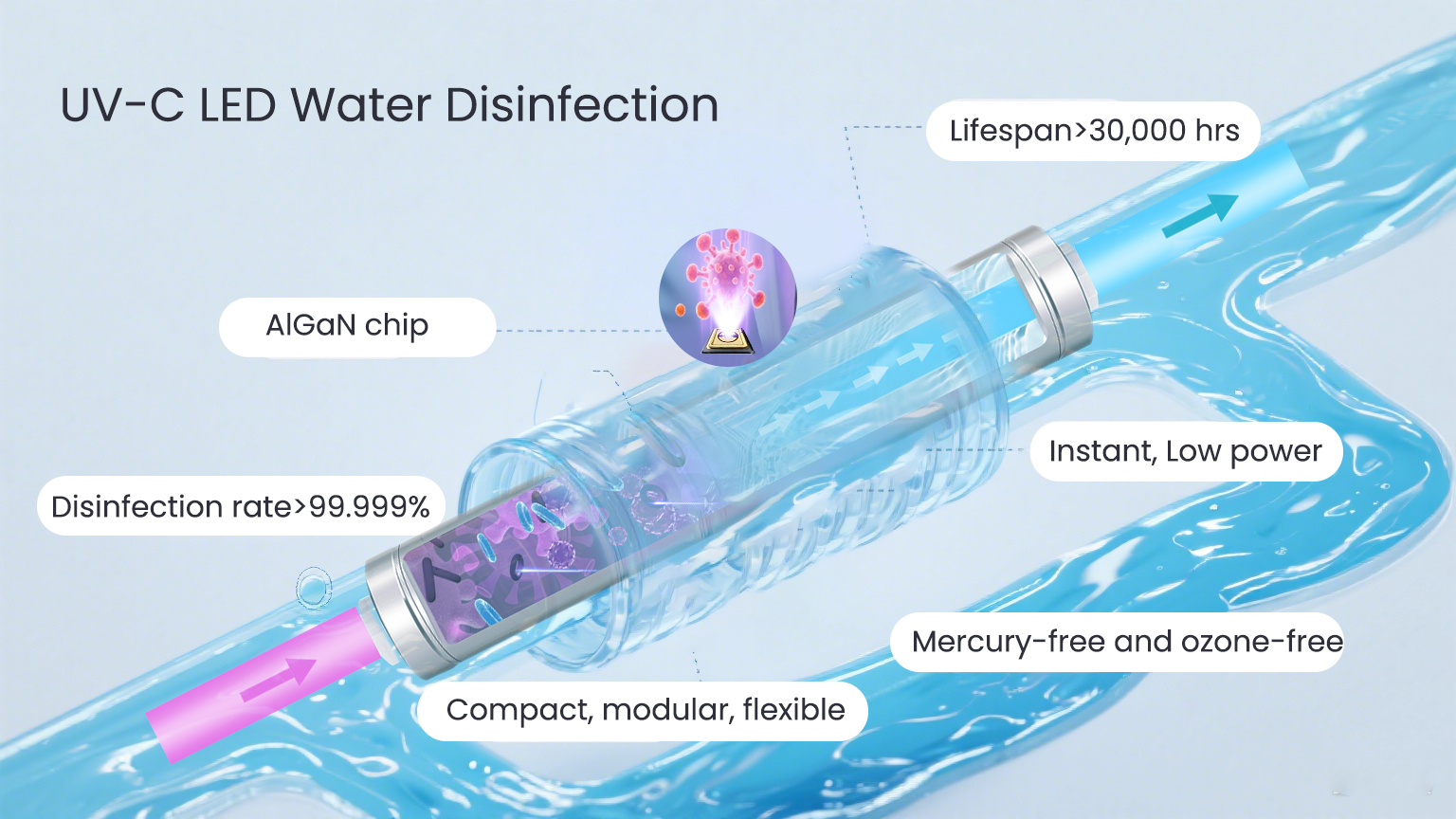

UV-C LED:
As a solid-state device, it supports millisecond-level instant startup. Combined with flow sensors, it enables on-demand operation. In residential settings, LEDs activate only during water flow, reducing energy usage by over 70%.
Efficiency Takeaway:
UV-C LEDs are ideal for intermittent or energy-conscious applications, ensuring long-term reliability and safety.
UV Mercury Lamp:
Requires additional components like quartz sleeves (to prevent scaling), ballasts, and cooling fans. These add bulk and limit design freedom, making integration into compact devices more difficult.
UV-C LED:
A chip-level light source measuring just a few mm². Its small size and modularity allow seamless integration into various compact systems—end-of-line purifiers, portable filters, RO dispensers—unlocking new product design possibilities.
Design Implication:
For miniaturized or flexible designs, UV-C LEDs provide unmatched integration versatility.
UV Mercury Lamp:
Typically rated for 8,000–9,000 hours (continuous use), but in practice may drop to 5,000–6,000 hours due to frequent cycling and water quality issues. Requires regular replacement of lamps and quartz sleeves (every 6–12 months), costing ~$30–70 per session. Ballasts may need replacement every 2–3 years.
UV-C LED:
Solid-state and non-fragile, with excellent mechanical durability. Lifespan exceeds 30,000 hours (over 10 years in typical use), requiring little to no maintenance.
Reliability Advantage:
UV-C LEDs drastically reduce maintenance needs and long-term costs, especially in hard-to-service installations.
UV Mercury Lamp:
Contains 5–10 mg of mercury (Hg), a toxic heavy metal. Subject to strict regulations (RoHS, WEEE, Minamata Convention). The EU RoHS mercury exemption ends in 2027, signaling a global phase-out of mercury-based products.
UV-C LED:
Mercury-free and ozone-free. Fully RoHS-compliant, with no need for special handling during shipping or disposal. Poses minimal environmental risk.
Regulatory Guidance:
For markets with strict environmental rules or export controls, UV-C LEDs simplify compliance and align with future sustainability goals.
UV Mercury Lamp:
Lower initial cost and suited for high-flow, budget-sensitive installations. However, hidden costs from energy usage, frequent maintenance, lamp replacements, and regulatory risks make it more expensive over time.
UV-C LED:
Higher upfront cost, but offers significantly lower long-term operating expenses. Energy savings, low maintenance, and easier compliance result in a lower TCO.
Economic Insight:
For long-life, low-maintenance, and energy-efficient applications, UV-C LEDs provide superior cost-effectiveness across the product lifecycle.

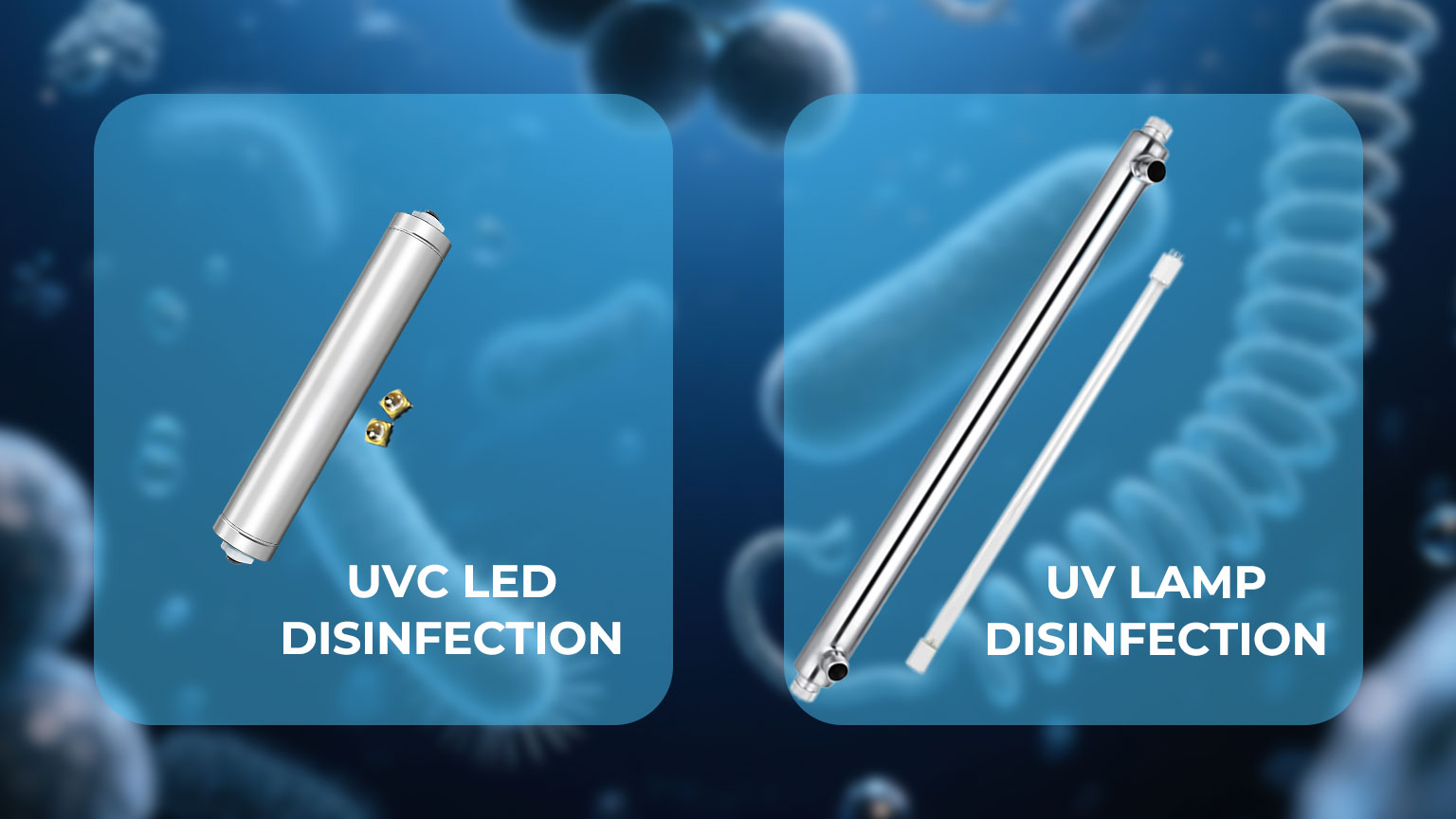

Comparison Table
| Comparison Dimension | UV Mercury Lamp | UVC-LED (Deep UV LED) |
| Emission Principle | Mercury vapor discharge → 254 nm | AlGaN semiconductor → 275 nm |
| Startup Time | Requires 30s–2 min preheating | Instant start |
| Mercury Content | Yes (EU RoHS exempt until 2027) | No |
| Energy Consumption | Constant high-power consumption | On-demand, energy-efficient |
| Maintenance Cycle | Regular lamp/sleeve replacement | Almost maintenance-free |
| Lifespan | 8,000–9,000 hrs (continuous use) | 30,000+ hrs (intermittent use, >10 yrs) |
| Thermal Management | Requires ballast + cooling fan | Low heat, passive cooling possible |
| Ozone Risk | Present | None |
| Environmental Risk | High (mercury handling required) | RoHS compliant, eco-safe |
| Size and Integration | Bulky, complex structure | Compact, flexible form factor |
MASSPHOTON’s proprietary UV-C LED chip technology and optical design empower high-efficiency microbial disinfection equal to or better than mercury lamps, while drastically cutting energy usage and light decay. This ensures stable long-term sterilization performance.
For OEMs, system integrators, and product designers aiming to enhance core competitiveness, environmental value, and user experience — switching from mercury lamps to UV-C LEDs is the key step to capturing the future of the water purification market.
Embracing UV-C LED means embracing the future of water purification — delivering safer, smarter, and more sustainable drinking water solutions.
