12 GPM UVC LED Water Disinfection system whole-house water puriﬁcation MP-UVC-48LC

Home » Products » UVC LED Water Treatment Products » Flowing Water-C Series » 12 GPM UVC LED Water Disinfection system whole-house water puriﬁcation MP-UVC-48LC

12 GPM UVC LED Water Disinfection system whole-house water puriﬁcation MP-UVC-48LC

Name: 12 GPM UVC LED Water Disinfection system whole-house water puriﬁcation MP-UVC-48LC
Brand: MASSPHOTON
Rating: 5.0 (24 reviews)


Availability:

Quantity:



Inquire Add to Basket

The MASSPHOTON UV-C LED Water Disinfection System features independently developed high-performance UV-C LED devices and a unique structure. It outperforms traditional mercury-lamp solutions with higher disinfec-tion efﬁciency, better stability, and faster response. The system meets the continuous high-ﬂow disinfection needs of whole-house water puriﬁcation, commercial water supply, and food processing, achieving 99.999% bacterial inactivation with zero maintenance and mercury-free safety.

Model:
MP-UVC-48LC
Brand:
MASSPHOTON

Product Description

>> Application Scenarios

>>Technical Parameters

>>Download

>>Product Description

MP-UVC-48LC is a high-flow UVC LED water disinfection module designed for whole-house purification at 12 GPM. It delivers mercury-free, chemical-free disinfection for residential and commercial central water systems.

This system uses 270-280 nm UVC LEDs for instant 99.999% (5.0 Log) pathogen reduction, including bacteria, viruses, and protozoa like E. coli. The aluminum casing and stainless steel 1-inch threaded interfaces handle up to 0.8 MPa (120 psi) pressure, with a compact Φ70 mm × 253 mm design for easy main inlet integration. It supports whole-house coverage for kitchens, bathrooms, and laundry, offering eco-friendly reliability over mercury lamps.

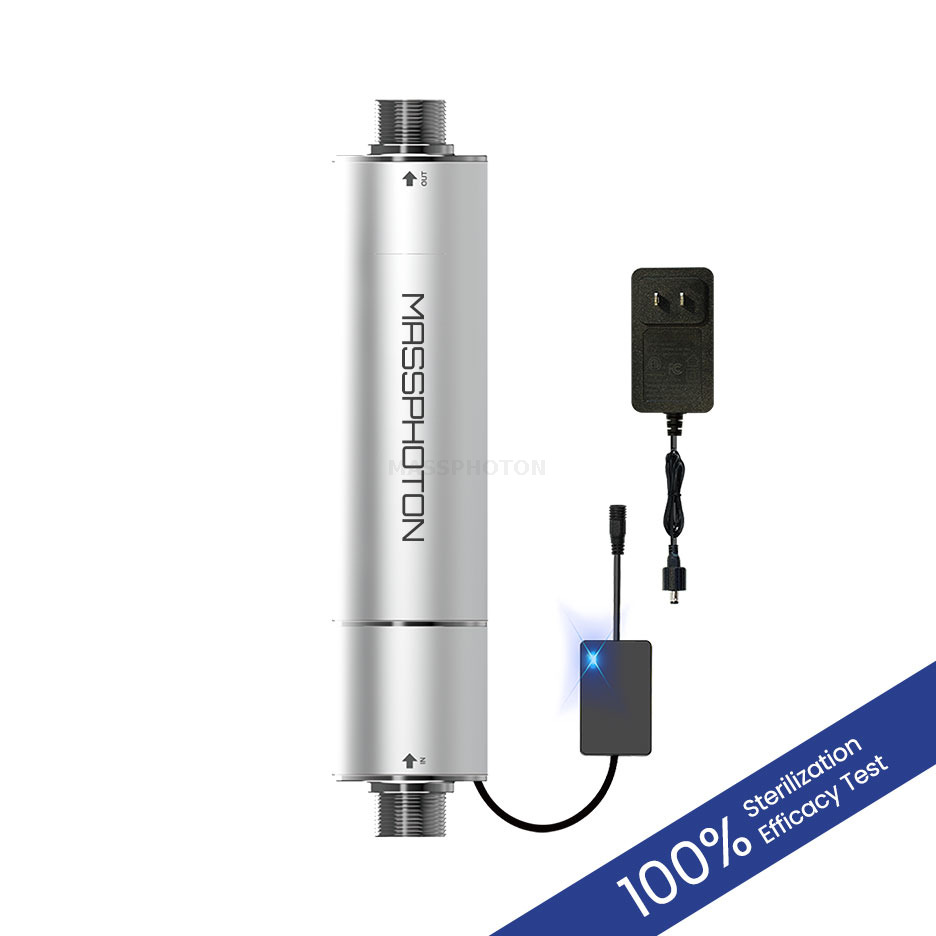

The silver cylindrical unit shown ensures uniform water exposure via optimized channels, with RoHS/REACH-compliant materials for durability.

High-efficiency Sterilization

The 270–280nm UVC wavelength provides 99.999% germicidal effectiveness, capable of inactivating pathogens such as E. coli, Salmonella, and influenza viruses.

Instant Flow-by Disinfection

Water is purified the moment it passes through, bypassing the need for storage or extended processing, ensuring hassle-free usage.

Safe and Durable

The fully sealed, IPX68-rated UV-proof design with heat and corrosion resistance ensures safe, reliable operation in harsh water conditions.

Long Lifespan and Low Energy

Energy-saving UVC LED lasts 15,000+ hours with 67% lower power consumption than traditional solutions, it's energy-efficient and ideal for long-term use.

whole-house water puriﬁcation

Applications

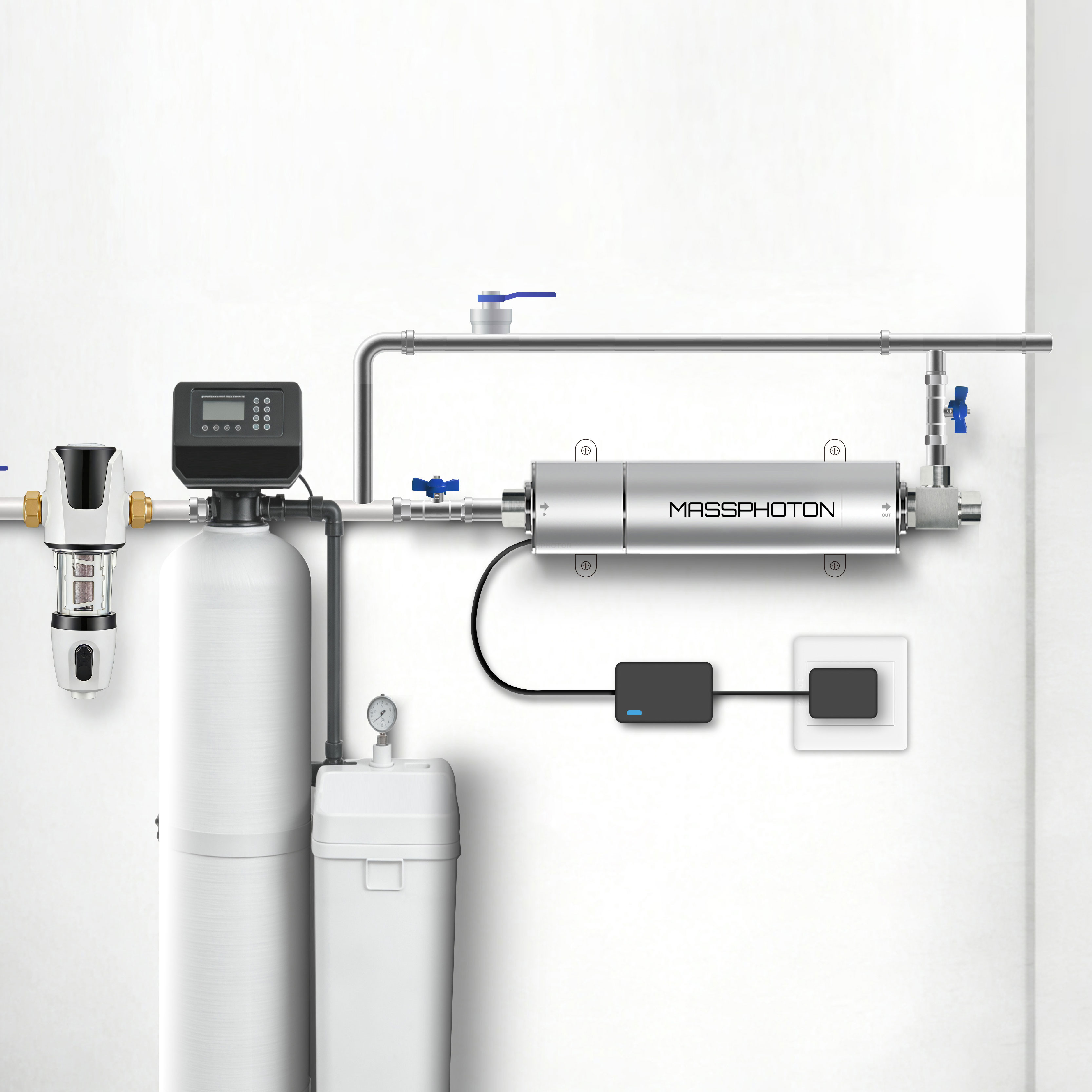

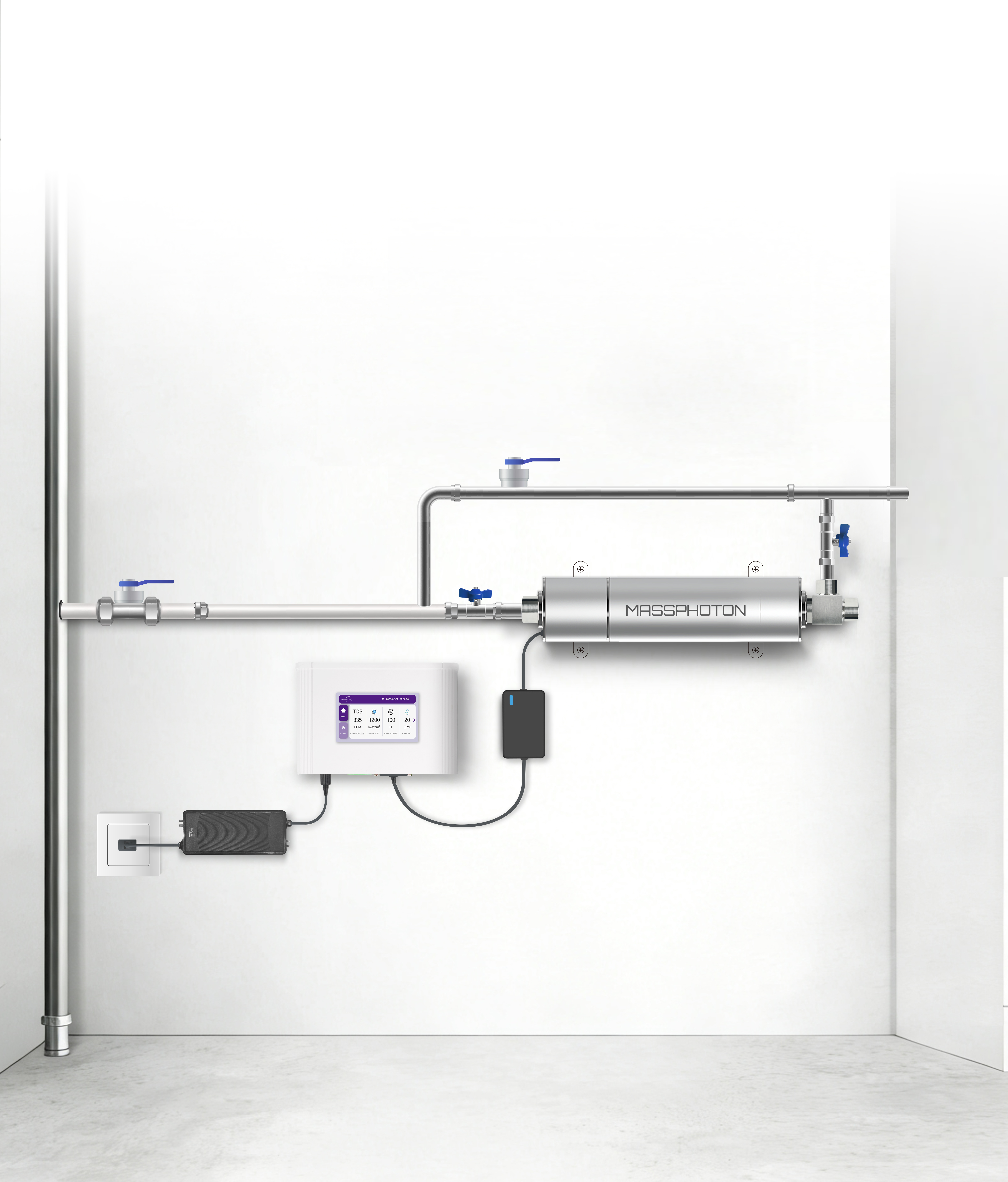

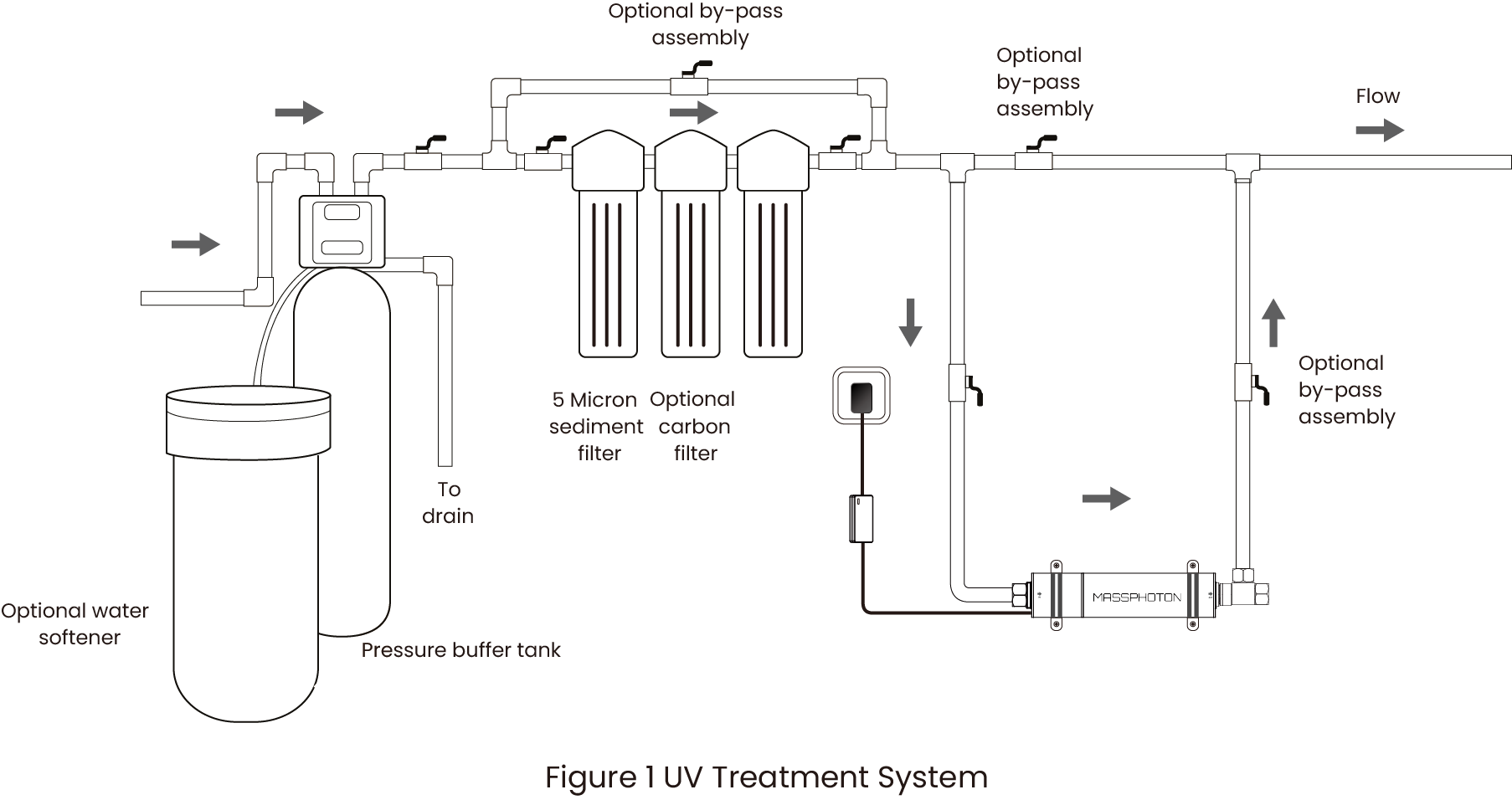

Ideal for apartments, hotels, hospitals, and food processing as pre-treatment for high-volume lines. It controls Legionella in centralized systems while enabling multi-endpoint safety without chemicals. Integrate at the main inlet for full-building protection.

Residential Apartments

Installs at main inlet for whole-building disinfection, protecting all units' taps from pathogens like E. coli without chemicals. Handles 12 GPM peaks
Hospitality Hotels

Central treatment for rooms, pools, and kitchens; controls Legionella in hot water loops for safe guest use. Eco-friendly mercury-free design.
Healthcare Hospitals

Post-entry safeguard for wards and ORs; neutralizes Pseudomonas and viruses in high-risk areas. Meets sterile standards.
Food Processing Facilities

Pre-treatment for production lines; inactivates Salmonella and Listeria. HACCP-compliant, compact inline fit.
Agricultural Water Systems

Purifies borehole water for irrigation and livestock; removes Giardia. Chemical-free for mid-sized farms.
Commercial Buildings

Central for offices and malls' restrooms/HVAC; curbs biofilm in large pipes. Low-maintenance LED life.

>>Technical Parameters

Model	MP-UVC-45LB	MP-UVC-10LB	MP-UVC-4LB	MP-UVC-4LC	MP-UVC-48LC
Rated Flow Rate	45 L/min (12 GPM)	10 L/min (2.6 GPM)	4 L/min (1 GPM)	4 L/min (1 GPM)	48 L/min (12 GPM)
Power Adapter input	100-240 V~50/60 Hz	DC 24V	DC 24V	100-240 V~50/60 Hz	100~240 V 50/60 Hz
Total Power	43W	7.2 W	5 W	5 W	24 V, 2.7 A
Power Supply Method	Adapter	Terminal	Terminal	Adapter	-
UV-C LED Wavelength	270 nm-280 nm	270 nm-280 nm	270 nm-280 nm	270 nm-280 nm	270 nm-280 nm
Product Lifetime	≥ 15,000 Hours	≥ 15,000 Hours	≥ 15,000 Hours	≥ 15,000 Hours	≥ 15,000 Hours
Sterilization Efficiency	Up to 99.999% or 5.0 Log Reduction (*)	Up to 99.999% or 5.0 Log Reduction (*)	Up to 99.999% or 5.0 Log Reduction (*)	Up to 99.999% or 5.0 Log Reduction (*)	Up to 99.999% or 5.0 Log Reduction (*)
Flow Switch	Optional	None	None	Optional	Optional
Water Pipe Interface Specification	1 Inch Thread	1/2 Inch Thread	1/4" Quick Connect	1/4" Quick Connect	1″
Inlet/Outlet Material	Stainless Steel	Stainless Steel	Stainless Steel	Food-Grade Plastic	Stainless Steel
Maximum Inlet Pressure	0.8 Mpa (120 psi)	0.4 MPa (60 psi)	0.4 MPa (60 psi)	0.4 MPa (60 psi)	0.1-0.8 MPa (Max 1.6 MPa)
Operating Temperature Range	5℃ to 40℃	4℃ to 60℃	4℃ to 60℃	5℃ to 40℃	5 ℃ to 40 ℃

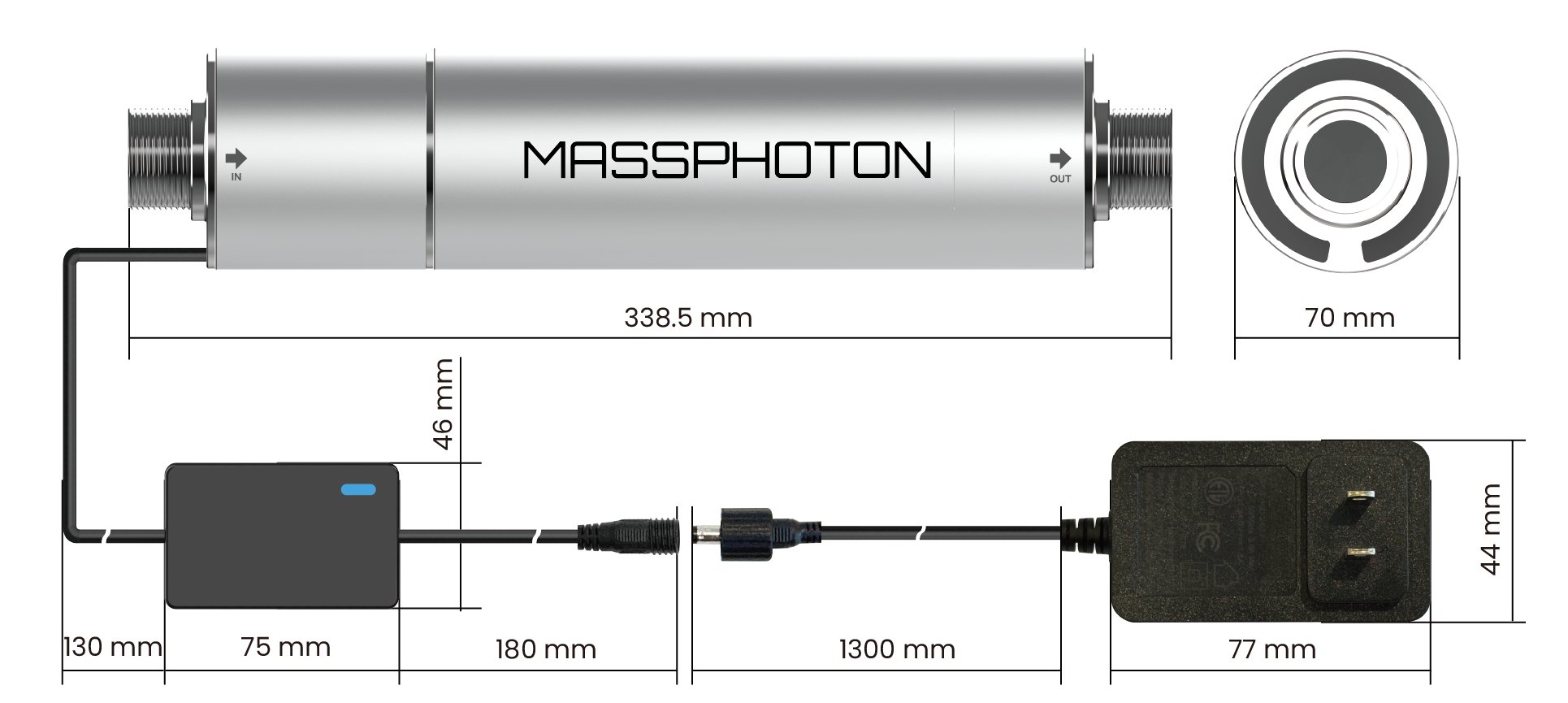

Product Dimensions	Φ70 mm × 253 mm (Φ2.8in ×10in)	Φ35 mm × 185 mm (Φ1.4in ×7.3in)	Φ25.4 mm × 130 mm (Φ1in ×5.1in)	Φ42 mm × 252 mm (Φ1.7in ×9.9in)	Ф70 mm * 338.5 mm (Ф2.8 in * 13.3 in)
Exterior Material	Aluminum	Aluminum	Aluminum	Stainless Steel	Aluminum

(*) The actual sterilization efficiency subjects to the water quality.

The above test results are based on the following test conditions with test strain of Escherichia coli (8099), with 5 × 10⁴ to 5 × 10⁵ CFU/mL dechlorinated sterile test water
