How UVC LEDs Reshape Disinfection Paradigms in High-Flow Environments

As global demand for public health and biosafety reaches unprecedented heights, ultraviolet (UV) disinfection technology, particularly in the UVC wavelength range (200-280 nm), has emerged as a critical tool for interrupting pathogen transmission. While traditional mercury-vapor lamps have been used for years in static or low-flow environments, their limitations become glaringly evident in high-flow scenarios. This article delves into the disinfection principles of UV-C LED (light-emitting diode) technology—a crystallization of third-generation semiconductor advancements—and analyzes its unique advantages over traditional methods in dynamic, high-flow environments, supported by authoritative domestic and international research data, while exploring its future applications.

I. Core Principles of UVC Disinfection

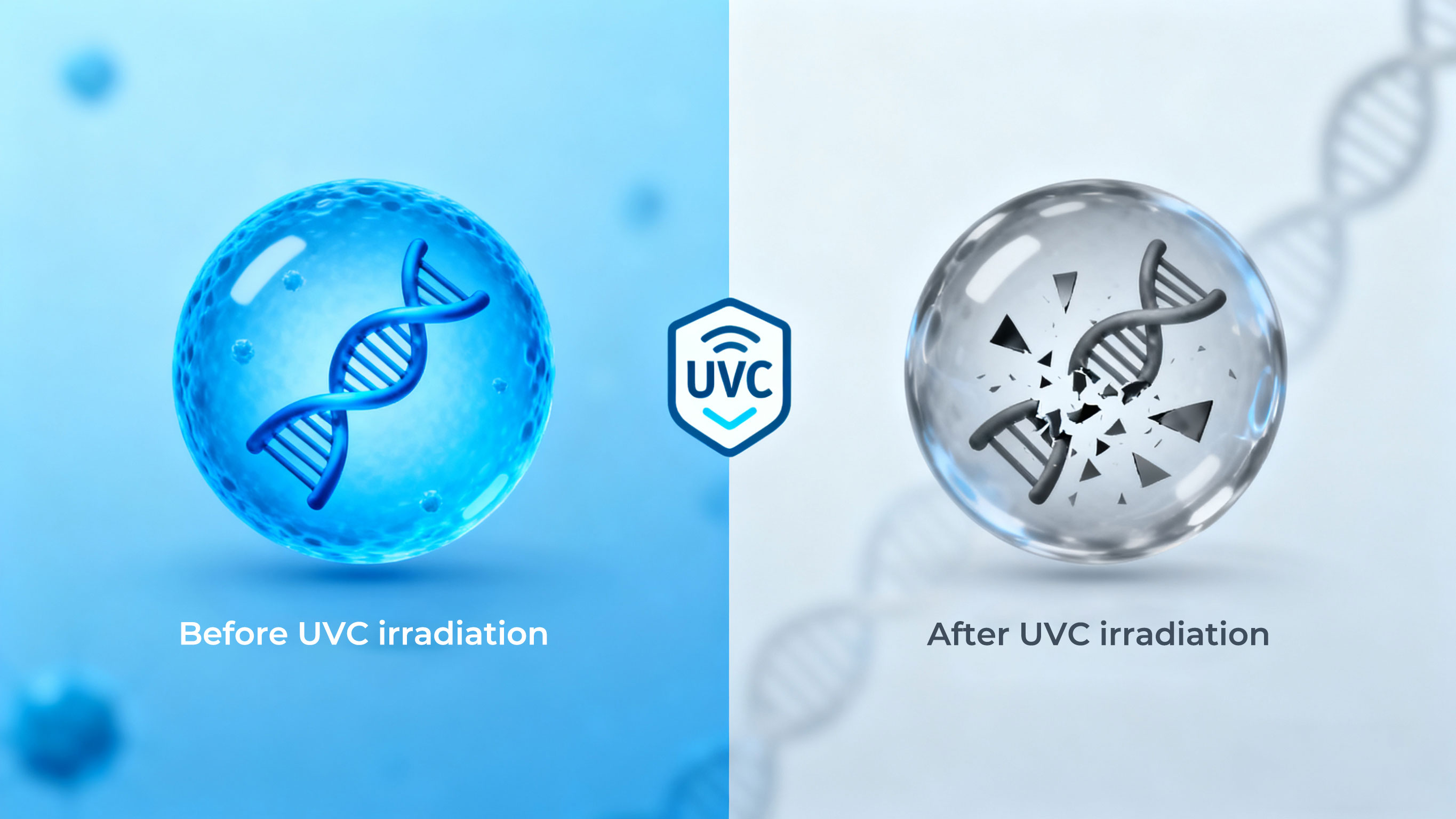

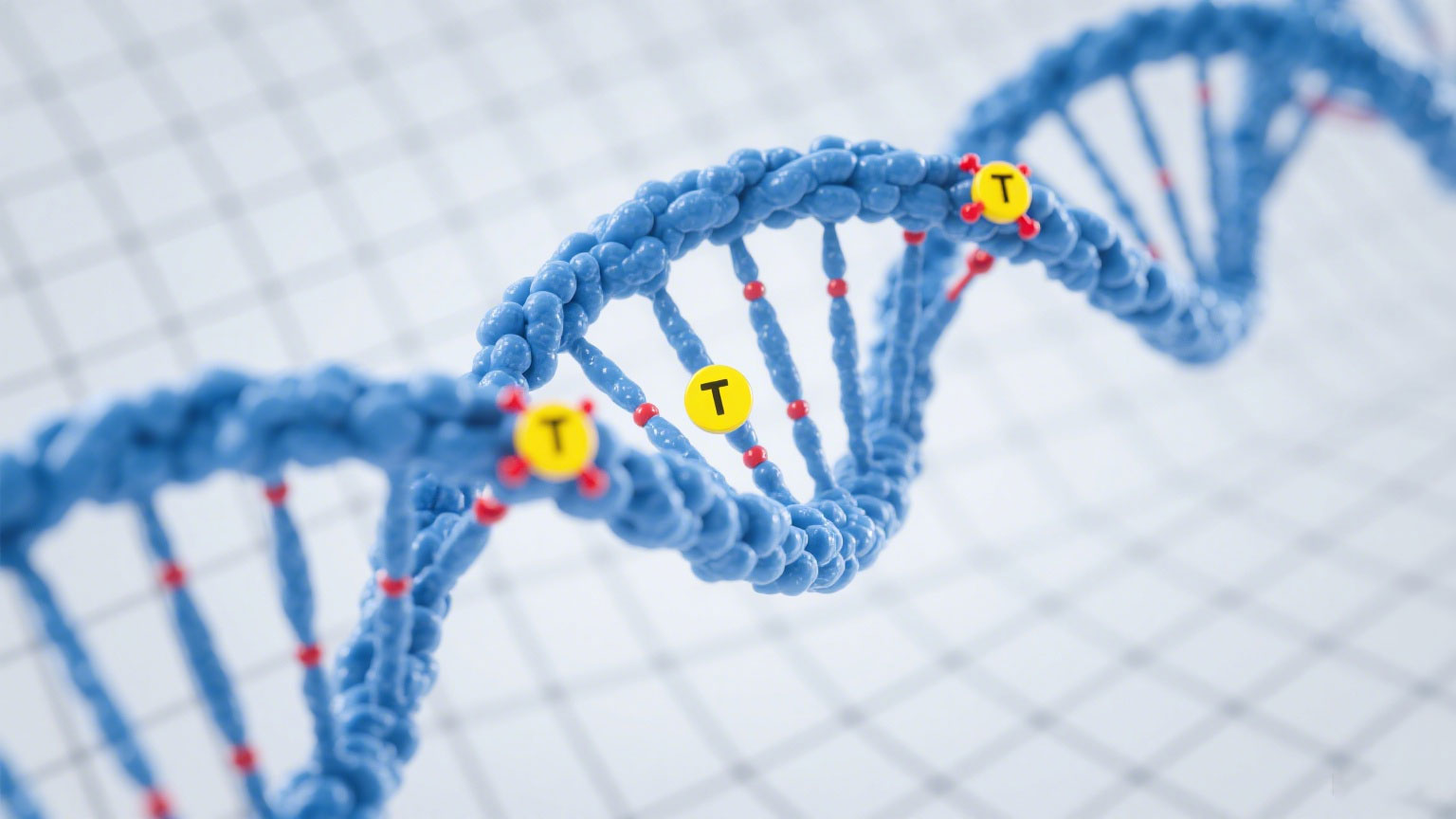

A Photochemical Weapon Against MicrobesUVC disinfection is fundamentally a photochemical destruction process. Its core mechanism lies in the high-energy UVC photons (most effective around 265 nm) being absorbed by the deoxyribonucleic acid (DNA) or ribonucleic acid (RNA) of microorganisms such as viruses, bacteria, and molds. This absorption triggers photochemical reactions, primarily forming covalent bonds between adjacent pyrimidine bases (e.g., thymine), creating pyrimidine dimers. These dimers distort the DNA double-helix structure, rendering replication and transcription impossible, thus preventing microbial proliferation and infection. This process is physical, instantaneous, and leaves no chemical residue, making it an efficient and environmentally friendly disinfection method.

Dosage Determines EfficacyThe key parameter for disinfection efficacy is the UV dose, typically measured in millijoules per square centimeter (mJ/cm²). The formula is:UV Dose (mJ/cm²) = UV Irradiance (μW/cm²) × Exposure Time (s) / 1000In high-flow environments, the rapid movement of fluids drastically shortens exposure time. To ensure sufficient inactivation dosage, extremely high UV irradiance must be delivered in a very short time. This is the bottleneck of traditional UVC mercury lamps and the breakthrough point for UV-C LED technology.

II. Challenges in High-Flow Environments and Limitations of Traditional Mercury Lamps

In high-flow air handling units (AHUs) or water treatment systems, fluid velocities can reach several meters per second, presenting two core challenges:

1. Extremely Short Residence Time: Microbes are exposed to UV light for only a brief moment.

2. Uneven Flow Distribution: This can lead to "short-circuiting," where some fluid escapes adequate irradiation.

Traditional low-pressure mercury lamps (emitting primarily at 253.7 nm) are mature and cost-effective but face amplified limitations in high-flow scenarios:

1. Slow Startup: They require minutes to warm up to full power, unable to respond instantly to flow changes.

2. Limited Power Density: It’s challenging to increase irradiance per unit length, making it difficult to deliver ultra-high UVC intensity instantly.

3. Bulky Design: Achieving sufficient dosage often requires long lamp tubes and reactors, limiting system design flexibility.

4. Mercury-Related Environmental Risks: Lamp breakage can cause mercury pollution, conflicting with the global Minamata Convention on Mercury reduction.

5. Temperature Sensitivity: Output intensity is heavily affected by environmental temperature, with efficiency dropping sharply in cold water.

III. Disruptive Advantages of UVC LEDs in High-Flow Environments

As a solid-state, cold-light source, UV-C LEDs are ideally suited for the demands of high-flow dynamic disinfection.

1. Ultra-High Power Density and Instant StartupThe most significant advantage of UVC LEDs is their extremely high surface irradiance. Studies show that a single UVC LED chip can achieve power densities tens or even hundreds of times greater than traditional mercury lamps. This allows them to deliver sufficient photon energy to inactivate pathogens within extremely short fluid residence times. Additionally, UVC LEDs offer nanosecond-level instant switching, enabling synchronized operation with fluid pumps or fans for "on-demand disinfection." This prevents energy waste and ensures stable, reliable dosage delivery despite flow fluctuations.

2. Design Flexibility and MiniaturizationUVC LEDs are compact (chip sizes can be less than 1 mm²), allowing designers to create dense arrays that integrate massive UVC power into small spaces. According to a study in the Chinese Journal of Disinfection, researchers designed a miniature reactor with multiple UVC LED arrays arranged in a circular pattern for high-speed water flow. This ensured 360° high-intensity irradiation with no blind spots, achieving logarithmic inactivation of Escherichia coli in sub-second contact times—a feat unattainable by traditional mercury lamps.

3. Environmental Robustness and ReliabilityUVC LEDs are far less affected by environmental temperature than mercury lamps, maintaining stable light output across a broader temperature range, particularly in cold water. A study published in a PubMed-indexed journal compared the performance of UVC LEDs and low-pressure mercury lamps in 10°C cold water, finding that UVC LEDs exhibited significantly less efficiency decay. This is critical for applications like cold-water washing or chilled water circulation systems.

4. Precise Wavelength and Optical ControlUVC LEDs emit a narrow spectrum, tunable to the 270–280 nm range optimal for microbial inactivation. Their directional emission allows light to be focused and directed via optical lenses, concentrating energy on the fluid core and minimizing light waste. For example, in air ducts, lens designs can create a high-intensity "light curtain" to effectively neutralize aerosols passing through.

5. Safety and Environmental FriendlinessBeing solid-state and mercury-free, UVC LEDs are safer and comply with environmental regulations. Their low-voltage DC operation eliminates high-voltage arc risks, making them suitable for explosive environments.

IV. Data and Empirical Evidence

Air DisinfectionAccording to an experimental report from a Chinese university indexed on the Wanfang Data platform, a UVC LED array (total power 36W) was used to disinfect an air duct with a flow rate of 2000 m³/h, achieving an average inactivation efficiency of over 90% for natural bacteria, with significantly lower resistance losses compared to traditional mercury lamp systems.

Water DisinfectionA Google Scholar article on ship ballast water treatment reported that a high-power UVC LED system achieved over 99.9% inactivation of indicator microbes in high-flow, high-turbidity seawater during a single pass, demonstrating its effectiveness in harsh fluid environments.

V. Future Outlook

With their high power density, instant response, design flexibility, and robust environmental adaptability, UVC LEDs are revolutionizing disinfection in high-flow air and water systems. They address the fundamental shortcomings of traditional mercury lamps, such as insufficient dosage delivery, slow response, and bulky systems.

Although their initial costs remain higher than mercury lamps, advancements in chip technology, packaging processes, and economies of scale are rapidly driving costs down. In the future, integrating UVC LED systems with sensors and the Internet of Things (IoT) will enable real-time microbial monitoring and precise dose-adjustment disinfection networks.

UVC LEDs are poised to go beyond merely replacing mercury lamps, unlocking innovative applications in high-flow scenarios such as central air conditioning ducts, high-rise building water supply systems, industrial process water, and ventilation systems for high-speed trains or aircraft. They will provide robust technological support for building safer, healthier public environments.
