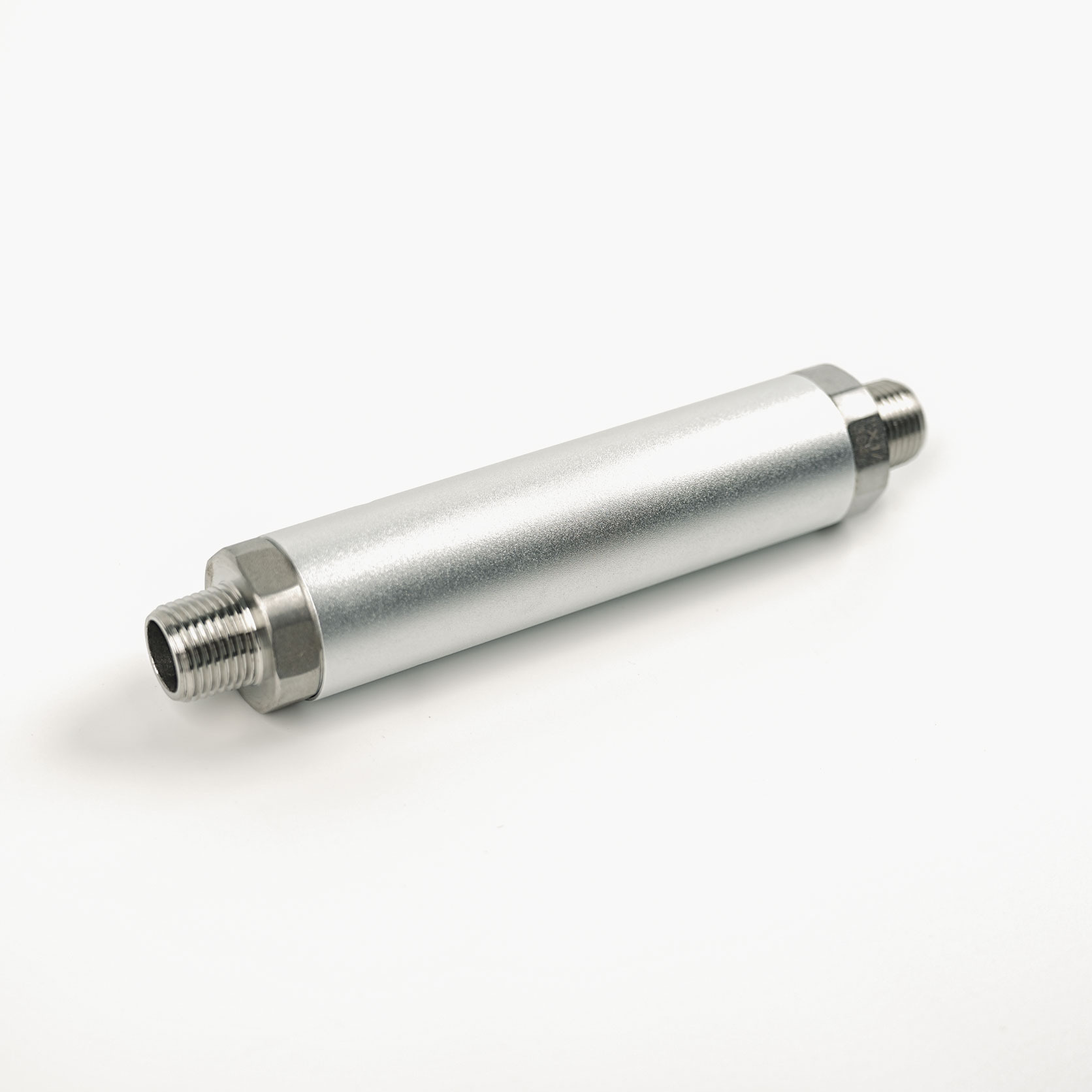

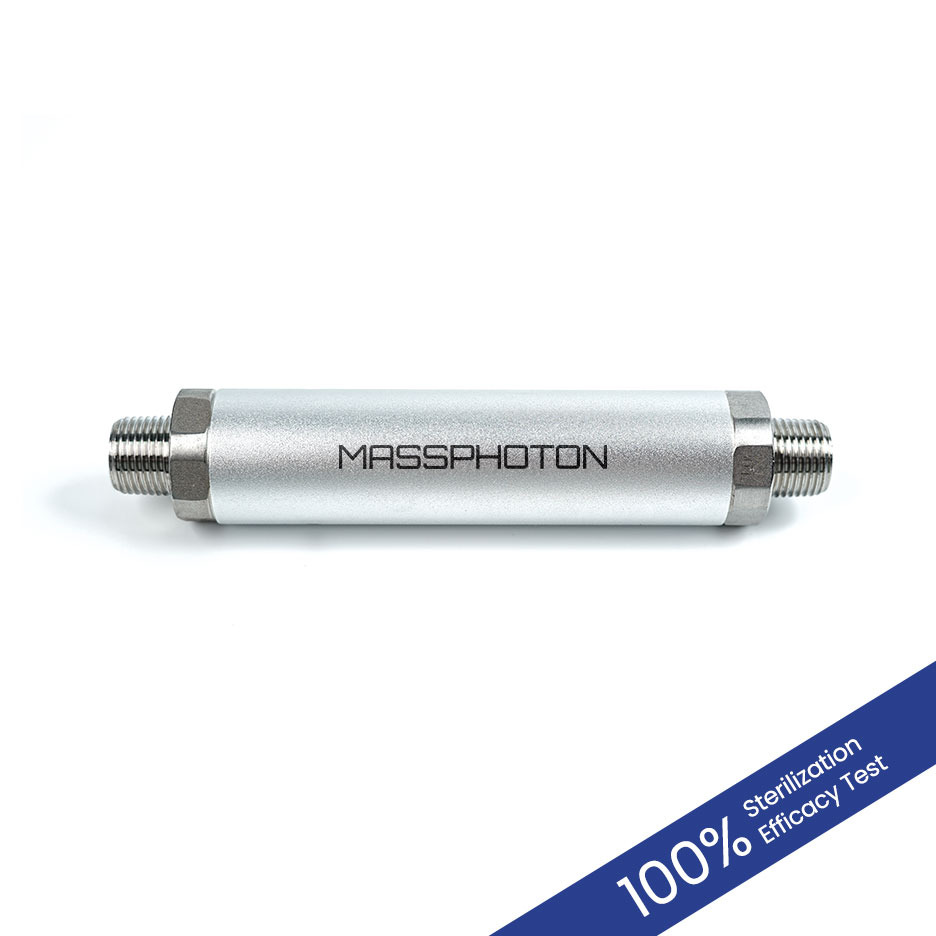

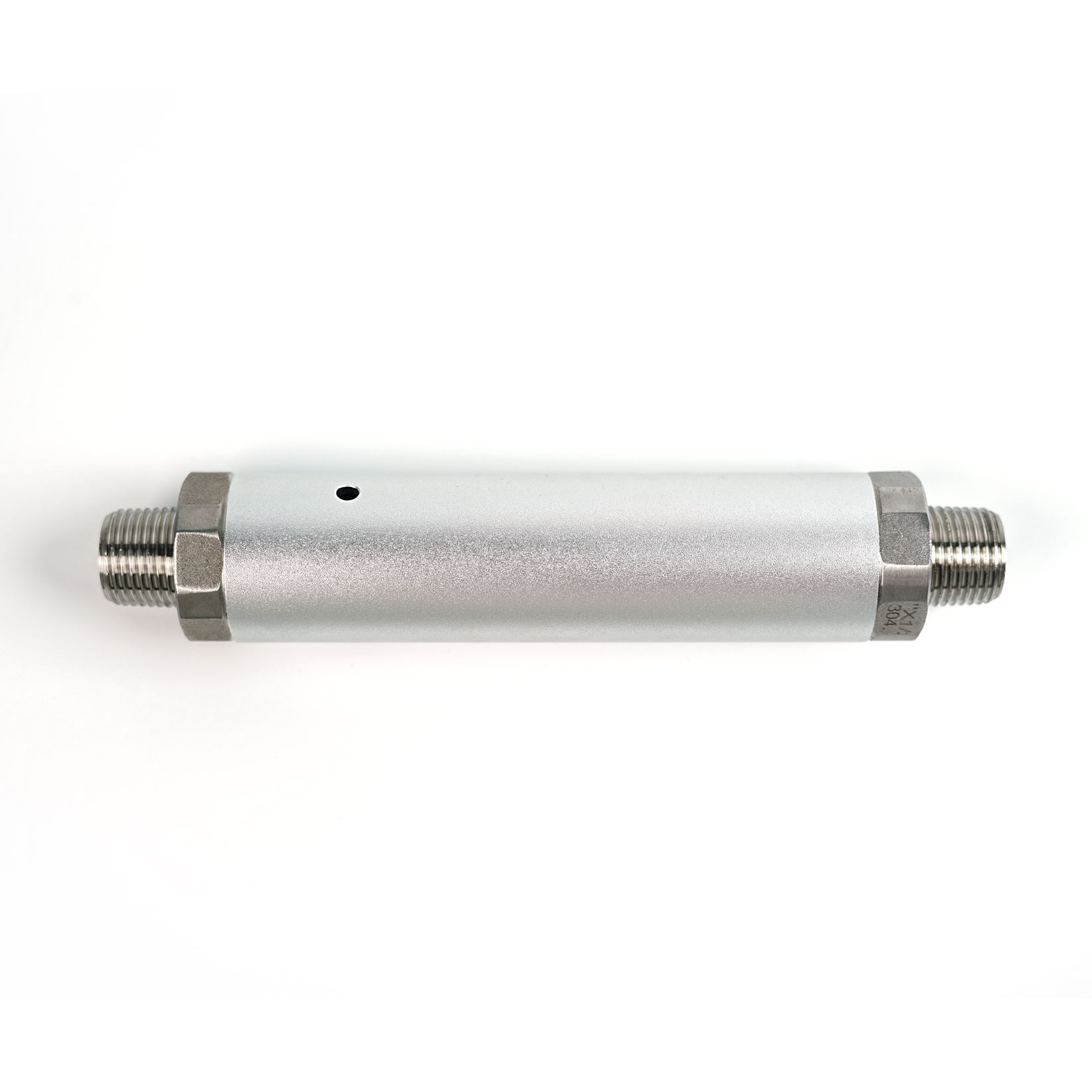

MP-UVC-10LB UVC LED Water Disinfection System


Availability:

Quantity:



Inquire Add to Basket

A high-performance medium-to-large flow disinfection module, achieving 99.999% pathogen inactivation upon instant startup. Specifically designed for office drinking water, commercial vending machines, and restaurant kitchens. Robust and durable in structure, it avoids heat impact on water quality and passes rigorous performance and waterproof testing, providing stable and safe professional disinfection support for commercial water systems.

Model:
MP-UVC-10LB
Brand:
MASSPHOTON

Product Description

>>Technical Parameters

>>Product Description

High-efficiency Sterilization

The 270–280nm UVC wavelength provides 99.999% germicidal effectiveness, capable of inactivating pathogens such as E. coli, Salmonella, and influenza viruses.

Instant Flow-by Disinfection

Water is purified the moment it passes through, bypassing the need for storage or extended processing, ensuring hassle-free usage.

Safe and Durable

The fully sealed, IPX68-rated UV-proof design with heat and corrosion resistance ensures safe, reliable operation in harsh water conditions.

Long Lifespan and Low Energy

Energy-saving UVC LED lasts 20,000+ hours with 67% lower power consumption than traditional solutions, it's energy-efficient and ideal for long-term use.

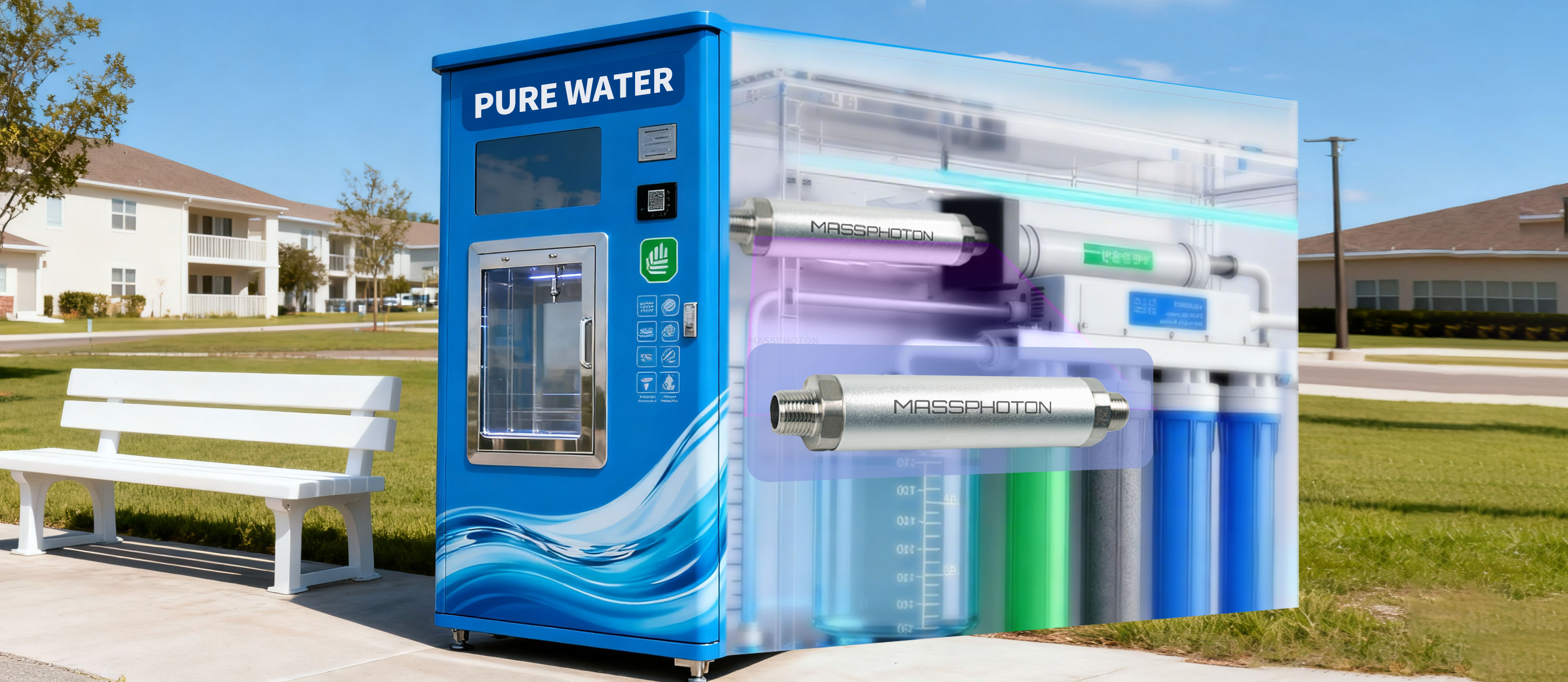

制作自动售水机图片-(2)

资源 24x

>>Technical Parameters

Model	MP-UVC-45LB	MP-UVC-10LB	MP-UVC-4LB	MP-UVC-4LC	MP-UVC-2LB
Rated Flow Rate	45 L/min (12 GPM)	10 L/min (2.6 GPM)	4 L/min (1 GPM)	4 L/min (1 GPM)	2 L/min (0.4 GPM)
Power Adapter input	100-240 V~50/60 Hz	DC 24V	DC 24V	100-240 V~50/60 Hz	DC 24 V
Total Power	43W	7.2 W	5 W	5 W	3 W
Power Supply Method	Adapter	Terminal	Terminal	Adapter	-
UV-C LED Wavelength	270 nm-280 nm	270 nm-280 nm	270 nm-280 nm	270 nm-280 nm	270 nm-280 nm
Product Lifetime	≥ 10,000 Hours	≥ 10,000 Hours	≥ 10,000 Hours	≥ 10,000 Hours	≥ 10,000 Hours
Sterilization Efficiency	Up to 99.999% or 5.0 Log Reduction (*)	Up to 99.999% or 5.0 Log Reduction (*)	Up to 99.999% or 5.0 Log Reduction (*)	Up to 99.999% or 5.0 Log Reduction (*)	Up to 99.999% or 5.0 Log Reduction (*)
Flow Switch	Optional	None	None	Optional	None
Water Pipe Interface Specification	1 Inch Thread	1/2 Inch Thread	1/4" Quick Connect	1/4" Quick Connect	OD 8.5mm Barb
Inlet/Outlet Material	Stainless Steel	Stainless Steel	Stainless Steel	Food-Grade Plastic	POM
Maximum Inlet Pressure	0.8 Mpa (120 psi)	0.4 MPa (60 psi)	0.4 MPa (60 psi)	0.4 MPa (60 psi)	0.2 MPa (30 psi)
Operating Temperature Range	5℃ to 40℃	4℃ to 60℃	4℃ to 60℃	5℃ to 40℃	4℃ to 60℃
Product Dimensions	Φ70 mm × 253 mm (Φ2.8in ×10in)	Φ35 mm × 185 mm (Φ1.4in ×7.3in)	Φ25.4 mm × 130 mm (Φ1in ×5.1in)	Φ42 mm × 252 mm (Φ1.7in ×9.9in)	18 mm × 43 mm ×121 mm (0.7in ×1.7in ×4.8in)
Exterior Material	Aluminum	Aluminum	Aluminum	Stainless Steel	POM

(*) The actual sterilization efficiency subjects to the water quality.

The above test results are based on the following test conditions with test strain of Escherichia coli (8099), with 5 × 10⁴ to 5 × 10⁵ CFU/mL dechlorinated sterile test water
