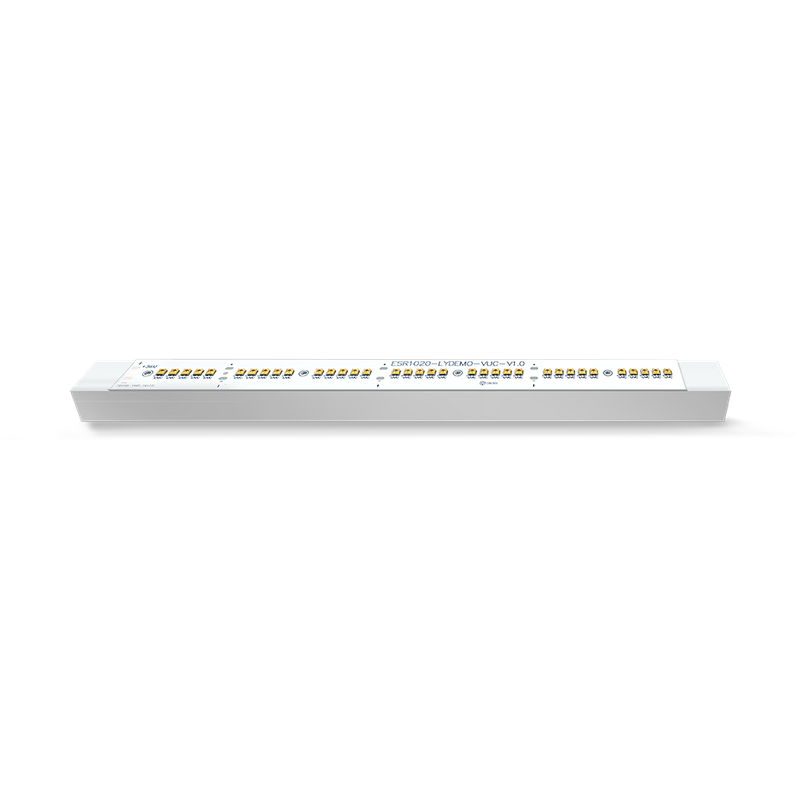

Utilizing the latest 270-280nm UVC LED chip technology, this UVC LED strip delivers consistent deep UV irradiation with minimal power consumption. Its robust design ensures extended operational lifespan compared to traditional mercury lamps, offering an eco-friendly and maintenance-reducing sterilization solution.
MP-UVCMZ-7
MASSPHOTON
Previous:
Next:
>> Product Advantage
>> Technical Parameters
>> Product Uses
>>Download
>>FAQ
>> Product Advantage
• Product model: MP-UVCMZ-7
• Size: 250*20*3.2 mm
• The circuit board uses a 1.6 mm thickened aluminum substrate, which has more efficient heat dissipation and more stable effects.
• The wavelength range of the UVC LED used is 270-280 nm,which has excellent andefficient sterilization and disinfection.
Efficient
Sterilization
Environmental
Friendly
Low
Power
Long
Lifespan
Wide range
of uses
>> Technical Parameters
Model
MP-UV CMZ-7
Electric power
37 W
Input voltage
35 V
Input current
1.05~1.225 A
UVC LED Power (per piece)
30~40 mW
LED Quantity
35 pcs
Radiation flux
1050~1400 mW
Product size
250*20 mm
UVC Wavelength
270-280 nm
Lamp life
10000~20000 H
Notes:
1.The accuracy of radiation flux testing is ± 5%.
2.All tests are conducted under standard conditions.
>> Applications
With their modern, safe, and efficient characteristics, UVC LED strips instantly inactivate bacteria, viruses, and mold through short-wave ultraviolet light, making them an ideal alternative to chemical disinfection. Their core applications span across various major fields:
1. Environment and Object Disinfection
Air Purification: Integrated into HVAC systems and air ducts to continuously purify circulating air.
Surface Disinfection: Widely used in sterilization cabinets, refrigerators, storage cabinets, etc., effectively inhibiting microorganisms to ensure item cleanliness and food preservation.
Water and Surface Treatment: Provides rapid disinfection of high-touch surfaces in medical institutions and enables sterile purification of water in laboratories and for drinking purposes.
2. Professional and Industrial Applications
Medical Safety: Integrated into biosafety cabinets and medical equipment for automated disinfection.
Food Industry: Enables high-efficiency, chemical-residue-free disinfection of food production lines, packaging, and the products themselves.
Q1: Are UVC LED Strips safe to use? A: UVC light is harmful to all living cells, including human skin and eyes. Direct exposure must be avoided. The strips are safe when installed in enclosed or automated systems where humans are not present during operation (e.g., inside an air duct, a water purifier, or a cabinet that turns on only when closed). Always look for products with safety features like motion sensors or timers.
Q2: Can UVC LED Strips kill COVID-19 and other viruses? A: Yes, UVC light has been proven to inactivate a wide range of viruses and bacteria, including coronaviruses. The effectiveness depends on providing a sufficient UVC dose (a combination of intensity and exposure time). It is a powerful tool for surface and air disinfection but should be used as part of a comprehensive hygiene strategy.
Q3: How are UVC LED Strips different from traditional UVC lamps? A: Unlike traditional mercury-vapor UVC lamps, UVC LED Strips are:
Mercury-free: More environmentally friendly.
Compact & Flexible: Can be installed in tight or curved spaces.
Instant On/Off: Reach full power instantly with no warm-up time.
Durable: More resistant to vibration and physical shock.
Q4: How long do UVC LED Strips last? A: UVC LEDs have a long operational lifespan, typically rated for 10,000 to 20,000 hours. However, their UVC output gradually degrades over time. It's important to follow the manufacturer's guidelines for replacement to ensure they remain effective for disinfection.
