Author: Site Editor Publish Time: 30-09-2025 Origin: Site
In campuses, transportation hubs, communities, and office buildings, commercial water vending machines have become an important source of daily drinking water. Water quality safety remains the primary concern for users. Given the complex and variable usage environments, how to ensure continuous water hygiene has become a common challenge for equipment manufacturers and operators.
Environmental Complexity: Vending machines are often deployed in high-traffic areas with fluctuating temperature and humidity, creating conditions favorable for microbial growth.
Storage and Pipeline Risks: Water tanks and internal pipelines may face secondary contamination risks after long periods of stagnation.
Limitations of Traditional Technology: Mercury UV lamps face issues such as delayed startup, high energy consumption, and mercury-related environmental concerns.

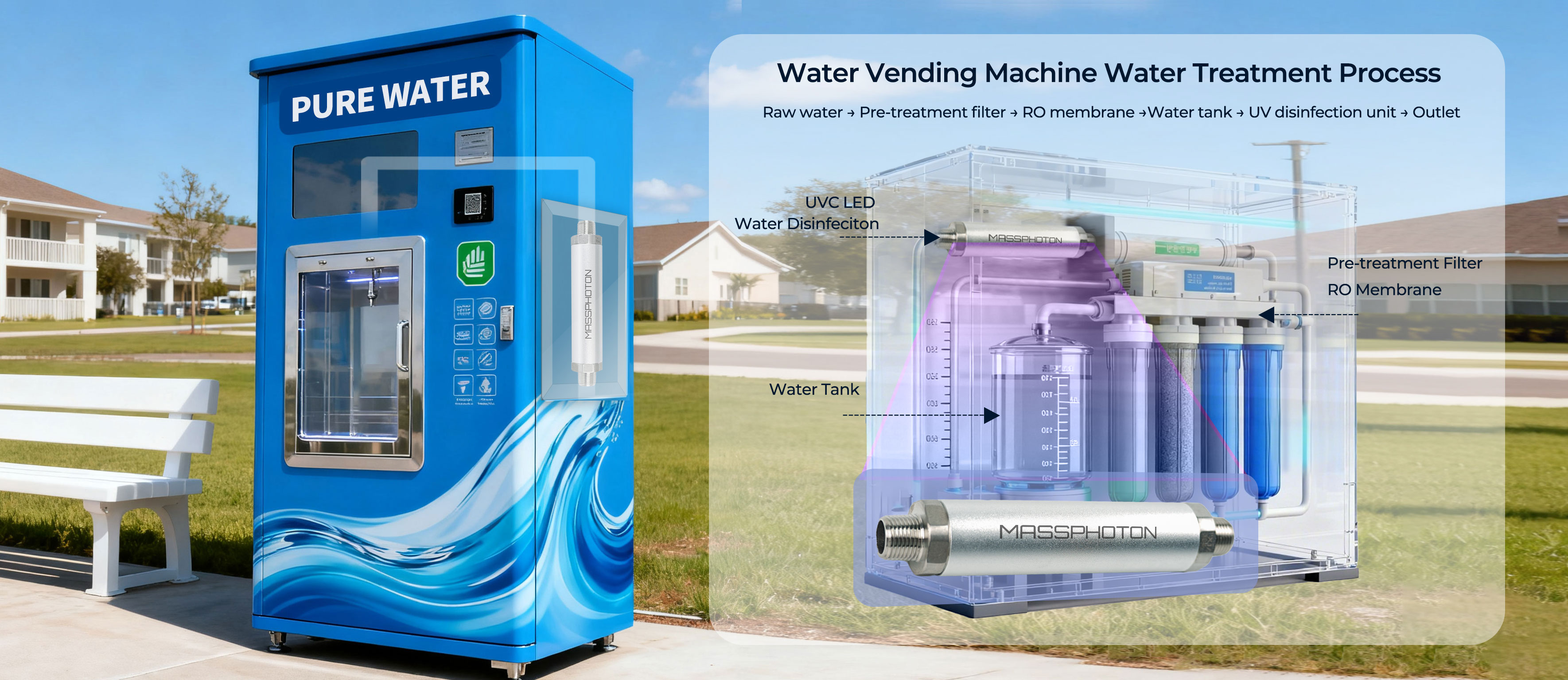

The core process of commercial water vending machines revolves around filtration – storage – sterilization, typically following the flow: pretreatment → deep filtration → storage → terminal sterilization.
Raw Water Pretreatment (Multi-Stage Filtration)
PP cotton filter (5μm/1μm): Blocks sand, rust, and large particles to protect downstream filters.
Activated carbon filter: Adsorbs chlorine, odor, and organics, preventing RO membrane damage.
Precision filter (optional): Further removes fine particles, improving RO feed water quality.
Sequence: Raw water → PP cotton filter → Activated carbon filter → Precision filter (optional)
Functions:
RO Membrane Deep Filtration
RO membrane: Removes heavy metals, bacteria, viruses with >98% desalination efficiency.
Booster pump: Provides 0.8–1.2 MPa pressure, ensuring stable filtration.
Sequence: Pretreated water → Booster pump (in some models) → RO membrane
Functions:
Clean Water Storage and Tank
Sequence: RO product water → Storage tank
Functions: Temporary storage to meet continuous demand; some systems use water-level sensors for automatic control.
Terminal Sterilization (UV Disinfection Unit)
Sequence: Tank outlet → UV disinfection → Water outlet
Functions: UV disrupts microbial DNA, killing bacteria and viruses to prevent secondary contamination.
Advantages: Unlike ozone, UV leaves no chemical residues and provides fast, efficient sterilization.
For high-frequency vending machine usage, traditional disinfection technologies often fall short. The MASSPHOTON 10 L/min UVC LED water disinfection module offers a more precise solution. With a wavelength of 270–280 nm—the most effective germicidal “golden range”—its advantages are tailored to the demands of commercial use:
| Advantage Dimension | MASSPHOTON 10 L/min Module Performance | Compared with Mercury Lamps / Conventional UVC LED Modules |
|---|---|---|
| Instant Start | Millisecond-level on-demand activation; auto-starts during dispensing | Mercury lamps require minutes of preheating; conventional LEDs show delays |
| High Disinfection Efficiency | Consistently inactivates bacteria/viruses even at high flow rates | Performance declines at high flow |
| Eco-Safe | Mercury-free, compliant with global safety and environmental standards | Mercury lamps contain toxic materials, posing recycling risks |
| Long Life, Low Decay | Longer service life, slower light decay | Shorter lifespan, faster degradation |
| Low Energy Consumption | Low operating power, significantly reduces electricity costs | Higher energy usage and lower efficiency |
UVC LED is more than just a sterilization tool—it delivers value to operators, users, and brands alike. Its effectiveness has been validated across global markets:
End-Point Safety: Higher Water Quality Compliance
Installed before the outlet, UVC LED effectively inactivates microbes in tanks and pipelines. Proprietary flow-channel design ensures complete sterilization even during high-volume dispensing. Real-world data show a significant increase in compliance rates for bacterial counts after UVC LED integration.
Operational Efficiency: Long-Term Cost Reduction
With low energy use and extended lifespan, UVC LEDs reduce electricity bills and maintenance costs. Operators save on replacement parts and labor, achieving substantial cost efficiency.
User Experience: Enhanced Safety Confidence
Some modules include visual indicators showing real-time sterilization status during dispensing, giving users peace of mind. Market data suggest increased loyalty and willingness to pay for such enhanced safety.
Brand Competitiveness: Aligned with Sustainability Trends
As global regulations on mercury and water safety tighten, UVC LED is becoming the industry standard. Adopting this technology strengthens a brand’s “green, healthy, and tech-forward” image, helping build differentiation in competitive markets.
As demand for public drinking water grows and safety standards rise, UVC LED technology not only ensures reliable disinfection under heavy use but also aligns with global energy-saving and mercury-free compliance trends. Looking forward, by integrating with IoT and smart monitoring platforms, UVC LED can enable “sensing – sterilization – alert” functions, cementing its role as the indispensable guardian of public drinking water safety.
