MP-UVCMZ-3
MASSPHOTON
>> Product Advantage

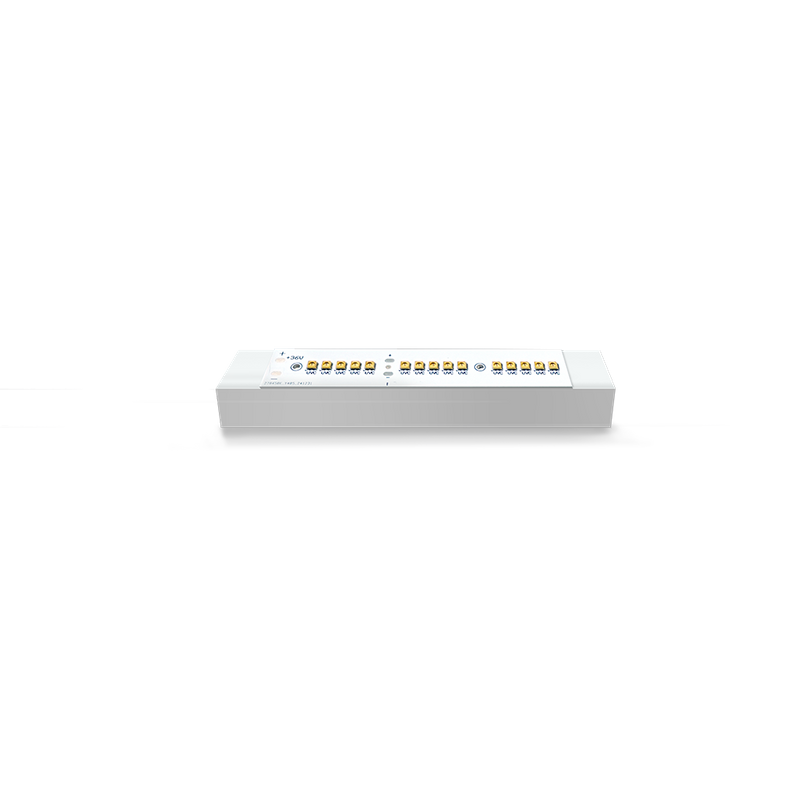

• Product model: MP-UVCMZ-3
• Size: 110*20*3.2 mm
• The circuit board uses a 1.6 mm thickened aluminum substrate, which has more efficient heat dissipation and more stable effects.
• The wavelength range of the UVC LED used is 270-280 nm,which has excellent andefficient sterilization and disinfection.

Efficient
Sterilization

Environmental
Friendly

Low
Power

Long
Lifespan

Wide range
of uses
>> Technical Parameters
| Model | MP-UV CMZ-3 |
| Electric power | 16 W |
| Input voltage | 35 V |
| Input current | 450~525 mA |
| UVC LED Power (per piece) | 30~40 mW |
| LED Quantity | 15 pcs |
| Radiation flux | 450~600 mW |
| Product size | 110*20 mm |
| UVC Wavelength | 270-280 nm |
| Lamp life | 10000~20000 H |
Notes:
1.The accuracy of radiation flux testing is ± 5%.
2.All tests are conducted under standard conditions.
>> Applications
Disinfection and sterilization of object surface
Water disinfection and sterilization
And other disinfection and sterilization products
