18 GPM UVC LED Water Disinfection system MP-UVC-70LP

Home » Products » UVC LED Water Treatment Products » Flowing Water-C Series » 18 GPM UVC LED Water Disinfection system MP-UVC-70LP

18 GPM UVC LED Water Disinfection system MP-UVC-70LP

Name: 18 GPM UVC LED Water Disinfection system MP-UVC-70LP
Brand: MASSPHOTON
Rating: 5.0 (48 reviews)


Availability:

Quantity:



Inquire Add to Basket

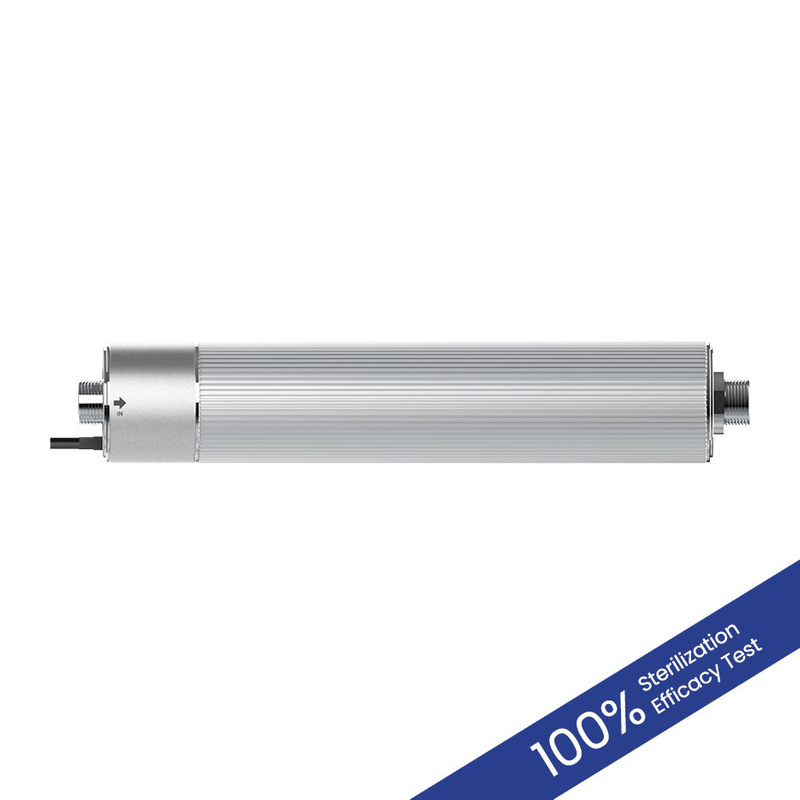

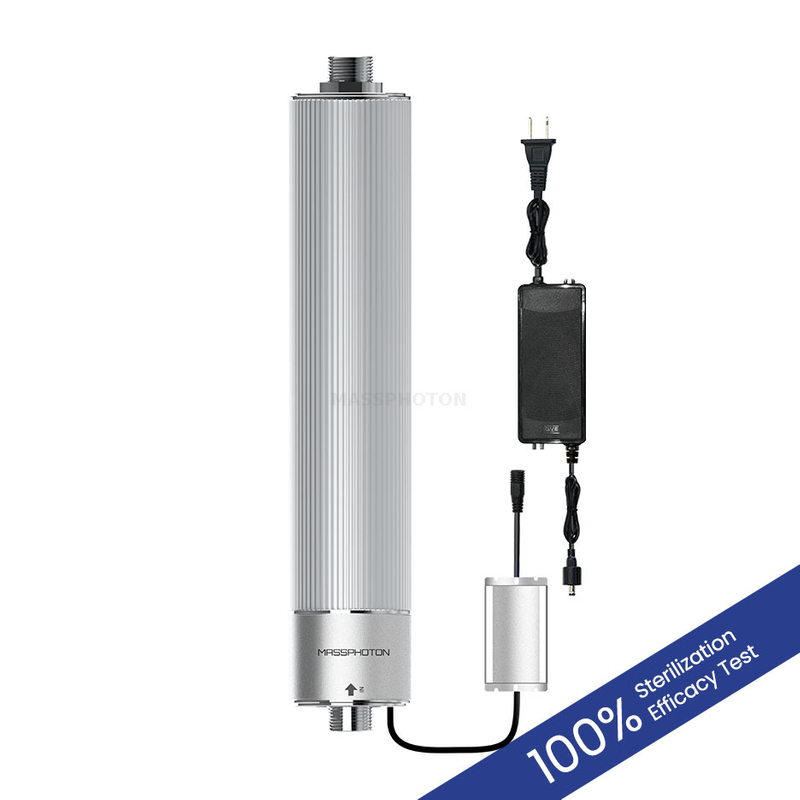

The MP-UVC-70LP is MASSPHOTON's next-generation mercury-free UVC LED water disinfection system, utilizing advanced deep UVC LED technology to provide a chemical-free water treatment solution. It features a compact design, low energy consumption, and easy maintenance, effectively inactivating bacteria, viruses, and protozoa.

It is suitable for whole house water purifier system, agricultural irrigation, aquaculture, food processing, laboratories, and other applications.

Model:
MP-UVC-70LP
Brand:
MASSPHOTON

Product Description

>> Application Scenarios

>>Technical Parameters

>>Download

>>Product Description

High-Efficiency Disinfection with Broad-Spectrum Protection
Operating at the optimal germicidal wavelength of 270–280 nm, the system achieves up to 99.999% (5-log) inactivation of E. coli, and effectively inactivates Cryptosporidium, Giardia, viruses, and other pathogens.
Chemical-Free Disinfection, No Residuals
A purely physical disinfection process with no chemical additives, preserving water taste and odor while producing no harmful disinfection by-products.
Mercury-Free and Long-Lasting
Free of hazardous mercury and environmentally friendly, with a lifespan exceeding 15,000 hours—up to 10 times longer than conventional UV lamps.
Instant Disinfection with Smart Energy Saving
Activated instantly by water flow and automatically shuts off when flow stops, with no preheating required and zero standby energy consumption.
Fully Enclosed Design for Safe Operation
The sealed optical chamber prevents UV leakage, ensuring safe and reliable use.

High-efficiency Sterilization

99.999% disinfection rate

Instant Flow-by Disinfection

Mercury-free &

chemical-free

Long Lifespan and Low Energy

15,000+ hours

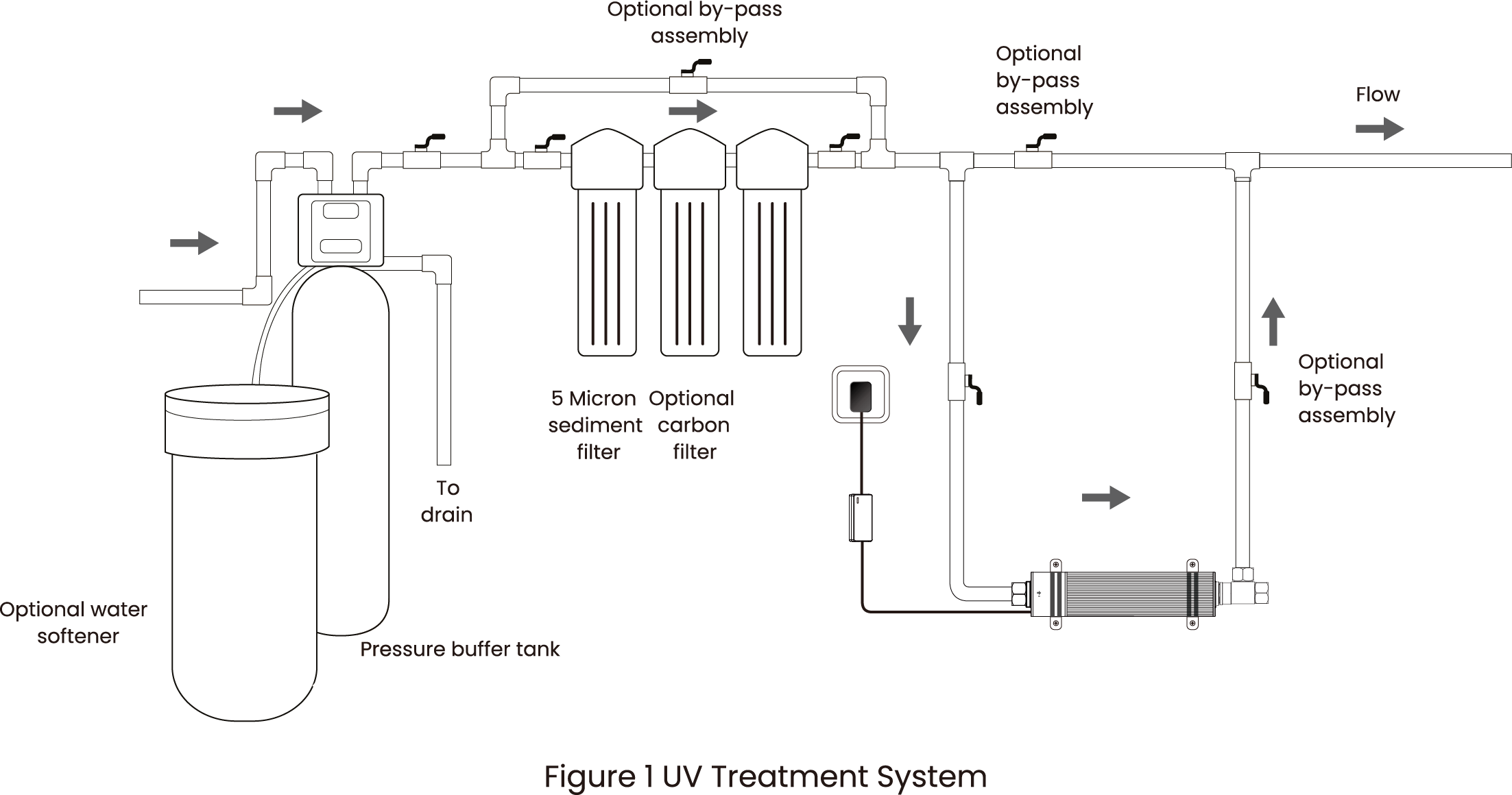

Unlike conventional mercury-based UV systems, this product is completely mercury-free and environmentally friendly, eliminating the risk of mercury leakage and enabling safer disposal. The system features an aluminum alloy housing and a fully sealed optical chamber, effectively preventing any UV leakage and ensuring safe operation. It supports both horizontal and vertical installation and can be integrated downstream of filtration and softening systems for flexible deployment. A three-color indicator provides real-time status monitoring with clear fault alerts, while the optional bypass design allows uninterrupted water supply during maintenance.

资源 74x

资源 3764x

Applications

Ideal for apartments, hotels, hospitals, and food processing as pre-treatment for high-volume lines. It controls Legionella in centralized systems while enabling multi-endpoint safety without chemicals. Integrate at the main inlet for full-building protection.

Residential Apartments

Installs at main inlet for whole-building disinfection, protecting all units' taps from pathogens like E. coli without chemicals. Handles 12 GPM peaks
Hospitality Hotels

Central treatment for rooms, pools, and kitchens; controls Legionella in hot water loops for safe guest use. Eco-friendly mercury-free design.
Healthcare Hospitals

Post-entry safeguard for wards and ORs; neutralizes Pseudomonas and viruses in high-risk areas. Meets sterile standards.
Food Processing Facilities

Pre-treatment for production lines; inactivates Salmonella and Listeria. HACCP-compliant, compact inline fit.
Agricultural Water Systems

Purifies borehole water for irrigation and livestock; removes Giardia. Chemical-free for mid-sized farms.
Commercial Buildings

Central for offices and malls' restrooms/HVAC; curbs biofilm in large pipes. Low-maintenance LED life.

>>Technical Parameters

Parameter	MP-UVC-200LP	MP-UVC-70LP	MP-UVC-48LC	MP-UVC-45LB	MP-UVC-24LB	MP-UVC-16LB	MP-UVC-10LB	MP-UVC-10LC	MP-UVC-4LB	MP-UVC-4LC	MP-UVC-2LB
Flow Rates	200 L/min ( 53GPM/12TPH)	70 L/min (4.2TPH)	48 L/min (2.8TPH)	45 L/min (12 GPM)	24 L/min (6 GPM)	16 L/min (4 GPM)	10 L/min (2.6 GPM)	10 L/min (2.6 GPM)	4 L/min (1 GPM)	4 L/min (1 GPM)	2 L/min (0.5 GPM)
Electrical	100~240 V 50/60 Hz	100~240 V 50/60 Hz	100~240 V 50/60 Hz	100~240 V 50/60 Hz	DC 24 V	DC 24 V	DC 24 V	100~240 V 50/60 Hz	DC 24 V	100~240 V 50/60 Hz	DC 24 V
Total Power	65 W	49 W	26 W	26 W	11 W	19 W	12 W	12 W	9 W	9 W	3 W
Power Supply Method	Adapter	Adapter	Adapter	Terminal	Terminal	Terminal	Terminal	Adapter	Terminal	Adapter	Terminal
UV-C LED Wavelength	270 nm~280 nm	270 nm~280 nm	270 nm~280 nm	270 nm~280 nm	270 nm~280 nm	270 nm~280 nm	270 nm~280 nm	270 nm~280 nm	270 nm~280 nm	270 nm~280 nm	270 nm~280 nm
Product Lifetime	≥15,000 h	≥15,000 h	≥15,000 h	≥15,000 h	≥15,000 h	≥15,000 h	≥15,000 h	≥15,000 h	≥15,000 h	≥15,000 h	≥15,000 h
Disinfection Efficiency	Up to 99.999% / 5.0 Log Reduction (*)	Up to 99.999% / 5.0 Log Reduction (*)	Up to 99.999% / 5.0 Log Reduction (*)	Up to 99.999% / 5.0 Log Reduction (*)	Up to 99.999% / 5.0 Log Reduction (*)	Up to 99.999% / 5.0 Log Reduction (*)	Up to 99.999% / 5.0 Log Reduction (*)	Up to 99.999% / 5.0 Log Reduction (*)	Up to 99.999% / 5.0 Log Reduction (*)	Up to 99.999% / 5.0 Log Reduction (*)	Up to 99.999% / 5.0 Log Reduction (*)
Flow Switch	Built-in	Built-in	Built-in	None	None	None	None	Built-in	None	Built-in	None
Connection Size	1" MNPT	1" MNPT	1" MNPT	1" MNPT	ZG 1/2"	ZG 1/2"	ZG 1/2"	ZG 1/2"	3/8" Quick Connect	1/4" Quick Connect	OD 8.5mm Barb connector
Inlet/Outlet Material	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel	Food-Grade Plastic	Food-Grade Plastic	Food-Grade Plastic
Operating Pressure	0.1 to 0.8 MPa (14 to 116 psi)	0.1 to 0.8 MPa (14 to 116 psi)	0.1 to 0.8 MPa (14 to 116 psi)	0.1 to 0.8 MPa (14 to 116 psi)	0.4 MPa (60 psi)	0.4 MPa (60 psi)	0.4 MPa (60 psi)	0.4 MPa (60 psi)	0.4 MPa (60 psi)	0.4 MPa (60 psi)	0.2 MPa (30 psi)
Operating Water Temperature	5℃ to 40℃ (41℉ to 104℉)	5℃ to 40℃ (41℉ to 104℉)	5℃ to 40℃ (41℉ to 104℉)	5℃ to 40℃ (41℉ to 104℉)	4℃ to 60℃ (39.2℉ to 140℉)	4℃ to 60℃ (39.2℉ to 140℉)	4℃ to 60℃ (39.2℉ to 140℉)	4℃ to 60℃ (39.2℉ to 140℉)	4℃ to 60℃ (39.2℉ to 140℉)	5℃ to 40℃ (41℉ to 104℉)	4℃ to 60℃ (39.2℉ to 140℉)

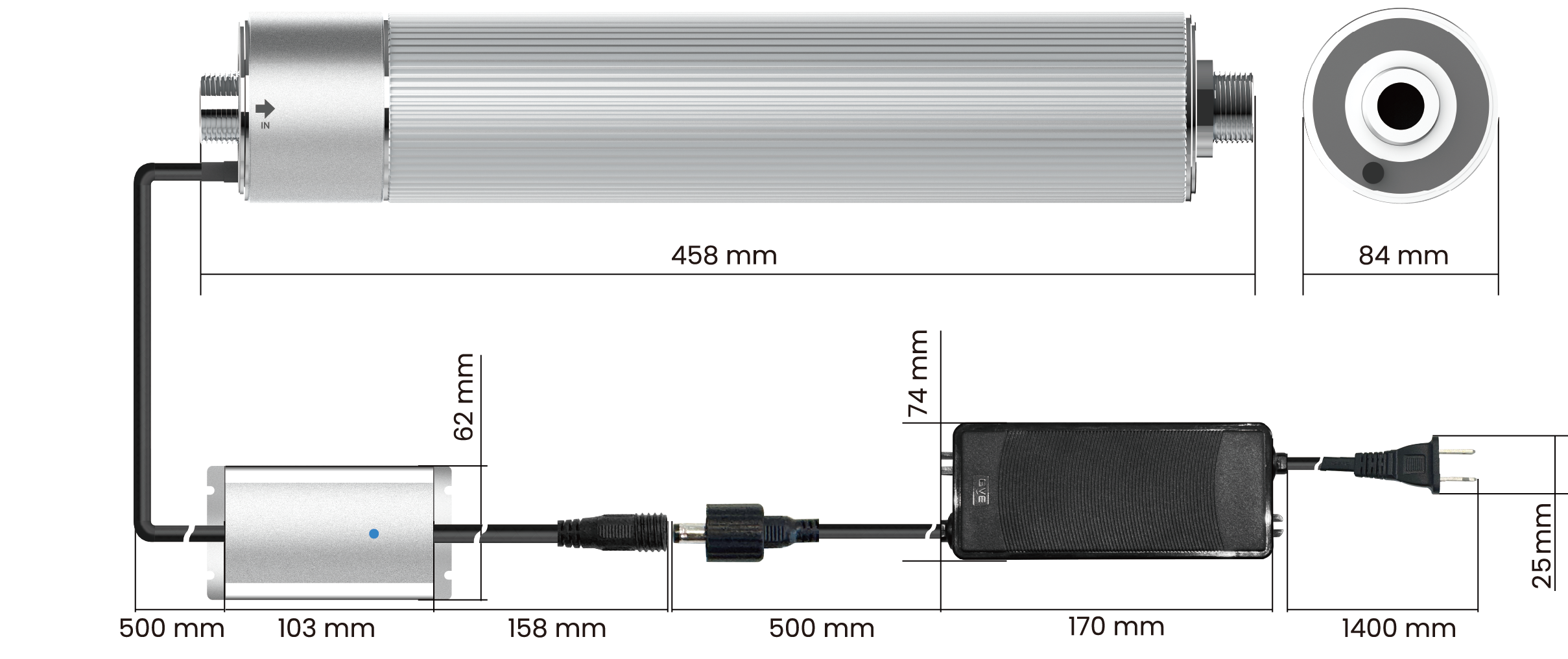

Dimensions	Φ84mm×458mm (Φ3.3in×18in)	Φ84mm×458mm (Φ3.3in×18in)	Φ70mm×338.5mm (Φ2.8in×13.3in)	Φ70mm×253mm (Φ2.76in × 9.96in)	Φ35mm×279mm (Φ1.4in×11in)	Φ35mm×229mm (Φ1.4in×9in)	Φ35mm×185mm (Φ1.38in × 7.3in)	42mm×42mm×225mm (1.7in × 1.7in × 8.9in)	Φ25.4mm×130mm (Φ1in × 5.1in)	Φ42mm×252mm (Φ1.7in × 10in)	18mm×43mm×121mm (0.7in × 1.7in × 4.8in)

(*) The actual sterilization efficiency subjects to the water quality.

The above test results are based on the following test conditions with test strain of Escherichia coli (8099), with 5 × 10⁴ to 5 × 10⁵ CFU/mL dechlorinated sterile test water
