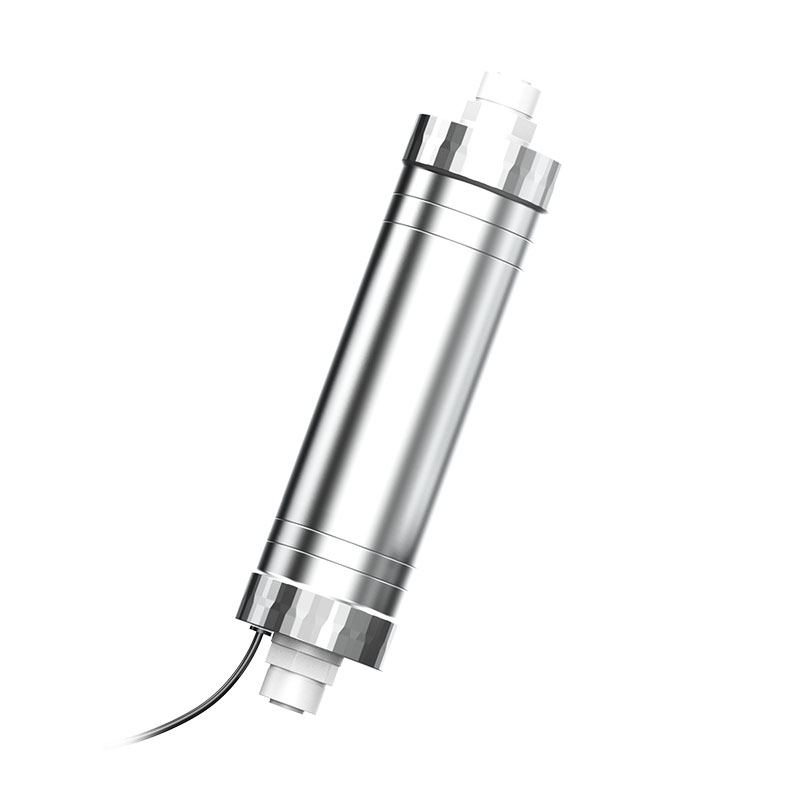

UVC-LED Flowing Water Disinfection Module-MP-UVC-3L


Availability:

Removes 99.99% of bacteria and viruses from drinking water, preventing harmful microorganisms from contaminating the water.

>> Product Advantage

>> Technical Parameters

>> Product Uses

>> FAQ

1.Effective Sterilization Capability: This UVC LED module provides a powerful 270-280nm wavelength to effectively kill bacteria, viruses, and other microorganisms in flowing water, ensuring a safe and healthy drinking experience.

2.Long-Lasting Performance: With a lifespan of 10,000-25,000 hours, this module is designed to provide reliable performance over an extended period, reducing maintenance costs and downtime.

3.Durable Construction: The housing material is made of high-quality 304 food-grade stainless steel , ensuring resistance to corrosion and durability in various water environments.

4.Compliance with Safety Standards: This product meets international safety standards, providing peace of mind for users.

5.Compact and Versatile: The module has a compact design with a diameter of 29mm and a length of 164mm, this module is perfect for integration into various water dispensers and systems, making it an ideal choice for a wide range of applications.

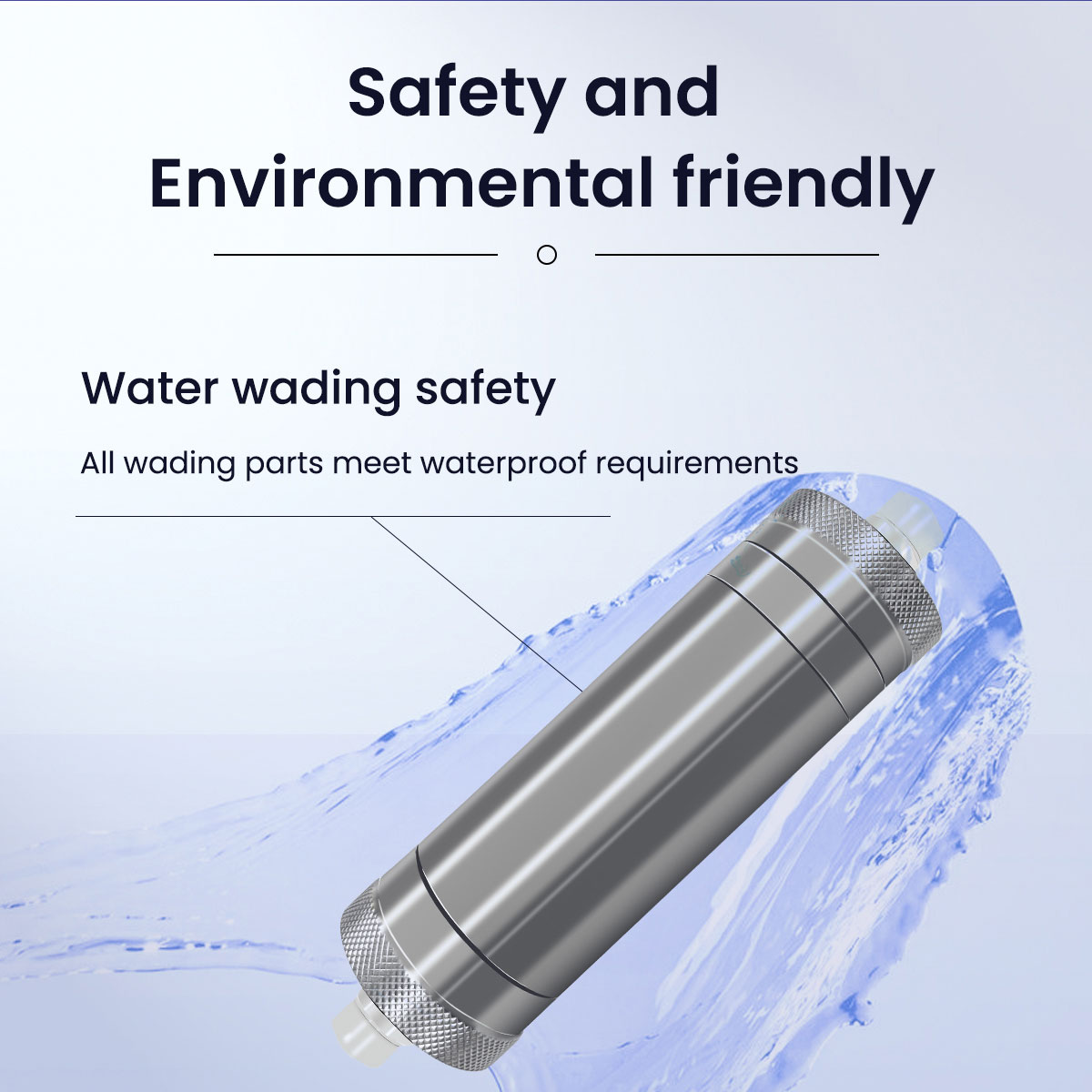

6.Easy Installation and Maintenance: Featuring a waterproof level of IP65 and easy-to-use connectors, this module is simple to install and maintain, reducing downtime and ensuring minimal disruption to your water supply.

Model	MP-UVC-3L
Effective Flow Rate	2.0-3.0L/min
UVC Radiant Flux	120~200mW
UVC Wavelength	270-280nm
Lamp Bead Lifespan	10,000-25,000Hours

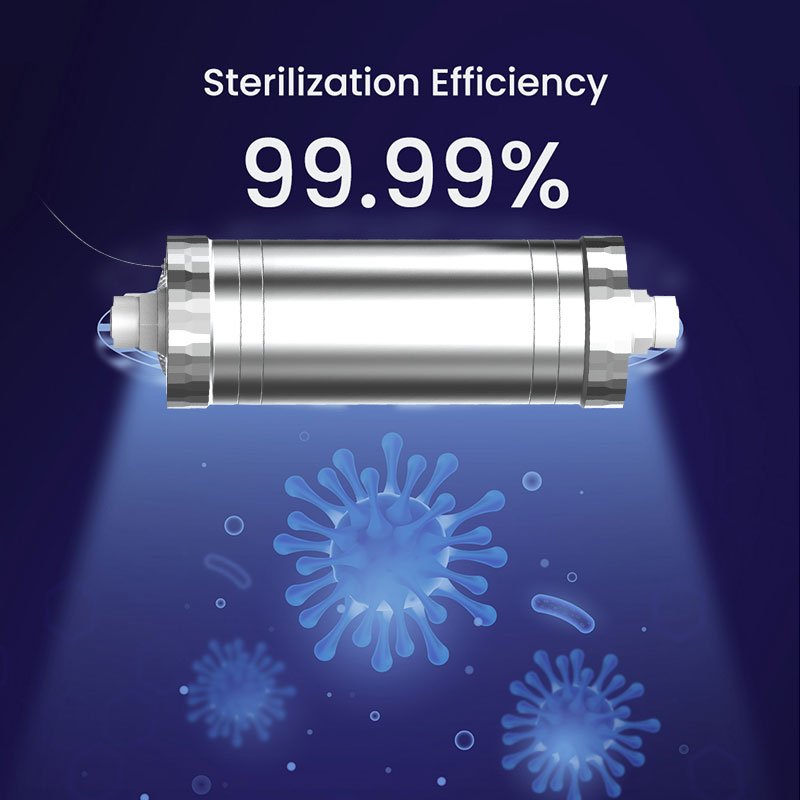

Sterilization Efficiency	99.99%
Rated Voltage	DC12-36V
Input Current	100mA
Waterproof Rating	IP65
Dimensions	Φ38*164mm
Material	304 food-grade stainless steel + quartz glass + food-grade rubber
Operating Temperature	5℃~65℃

Drinking Water Purifier

Commercial Water Dispenser

Water Dispenser

Humidifier

Lce Makingmachine

1. Why choose us?

The MASSPHOTON team has launched successfully various sterilization module based on UVC LED chip technology, and tested by third party agencies such as SGS, with sterilization rate of air, surface and water reaching 99.99%, and widely accepted by the market, including winning 2019 Red Dot Design Award and 2019 CES production innovation awards, etc.

2. How can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;

3. What can you buy from us?

UVC air disinfection machine, UVC LED Sterilizer, UVC LED Module

4. I don't know what model of the machine I need?

Don't worry. You can tell us the application and room area,we can recommend for you.

5. How long is the warranty time?

The warranty time is one year.

During warranty time,the repair and parts replacement are free.

After warranty time,it only charge the parts replacement when repairing.
