For households relying on private wells or off-grid water systems, water quality management often involves greater uncertainty. Unlike public water systems, the safety of private well water is primarily the responsibility of the homeowner, and these sources are not subject to the same regulatory oversight under the Safe Drinking Water Act. This means that continuous monitoring and treatment for microbial risks, seasonal fluctuations, and localized contamination sources must often be addressed through tailored, on-site water treatment strategies. In this context, UVC LEDs offer a flexible ultraviolet disinfection solution that can be applied both at the point of use (POU) for targeted drinking water treatment and at the point of entry (POE) as a supplementary whole-house disinfection measure. Together with upstream filtration and basic purification, this enables a layered protection approach with focused reinforcement.
Application Background
Off-grid homes that rely on private wells, mountain streams, or rainwater harvesting systems face multiple uncontrollable risks despite their water independence. Unlike centralized municipal systems with continuous treatment and real-time monitoring, decentralized water sources lack ongoing professional oversight and are highly susceptible to both environmental and human influences, resulting in significant variability and uncertainty in water quality.
A study conducted in Virginia, USA, analyzing 538 private wells found that 41% exceeded limits for total coliform bacteria, and 10% tested positive for E. coli. Some samples were confirmed to be contaminated by human wastewater. This is not an isolated case. In agricultural regions, pesticide residues during planting seasons and organic decay after harvest can infiltrate groundwater through rainfall. During rainy seasons, well water turbidity can surge from 8 NTU on clear days to as high as 320 NTU. Suspended particles such as clay can carry pathogens like Salmonella and Shigella, posing hidden risks of gastrointestinal illness.
More critically, contamination in decentralized water sources is often both hidden and sudden. Homeowners in rural areas frequently encounter situations where water appears clear in dry weather but turns muddy during rainfall. Traditional testing methods are costly and time-consuming, making routine monitoring difficult. The U.S. Environmental Protection Agency (EPA) recommends that private wells be tested at least once a year for key indicators such as total coliforms, nitrates, total dissolved solids (TDS), and pH. More frequent testing is advised in high-risk areas, but in practice, many homeowners cannot meet these requirements due to cost and accessibility constraints, leaving long-term exposure risks unaddressed. Moreover, testing only reflects water quality at a specific moment and cannot capture daily fluctuations. Therefore, integrating continuous disinfection and protective measures alongside testing becomes essential for improving system reliability.
Technical Characteristics
The core value of UVC LEDs lies in their flexibility, rapid response, and ease of system integration, making them especially suitable for low-flow, intermittent residential water use scenarios. Compared to traditional mercury-based UV systems, UVC LEDs require no warm-up time, can start within milliseconds, and support frequent on-off cycling without affecting lifespan. This enables true “on-demand disinfection.”

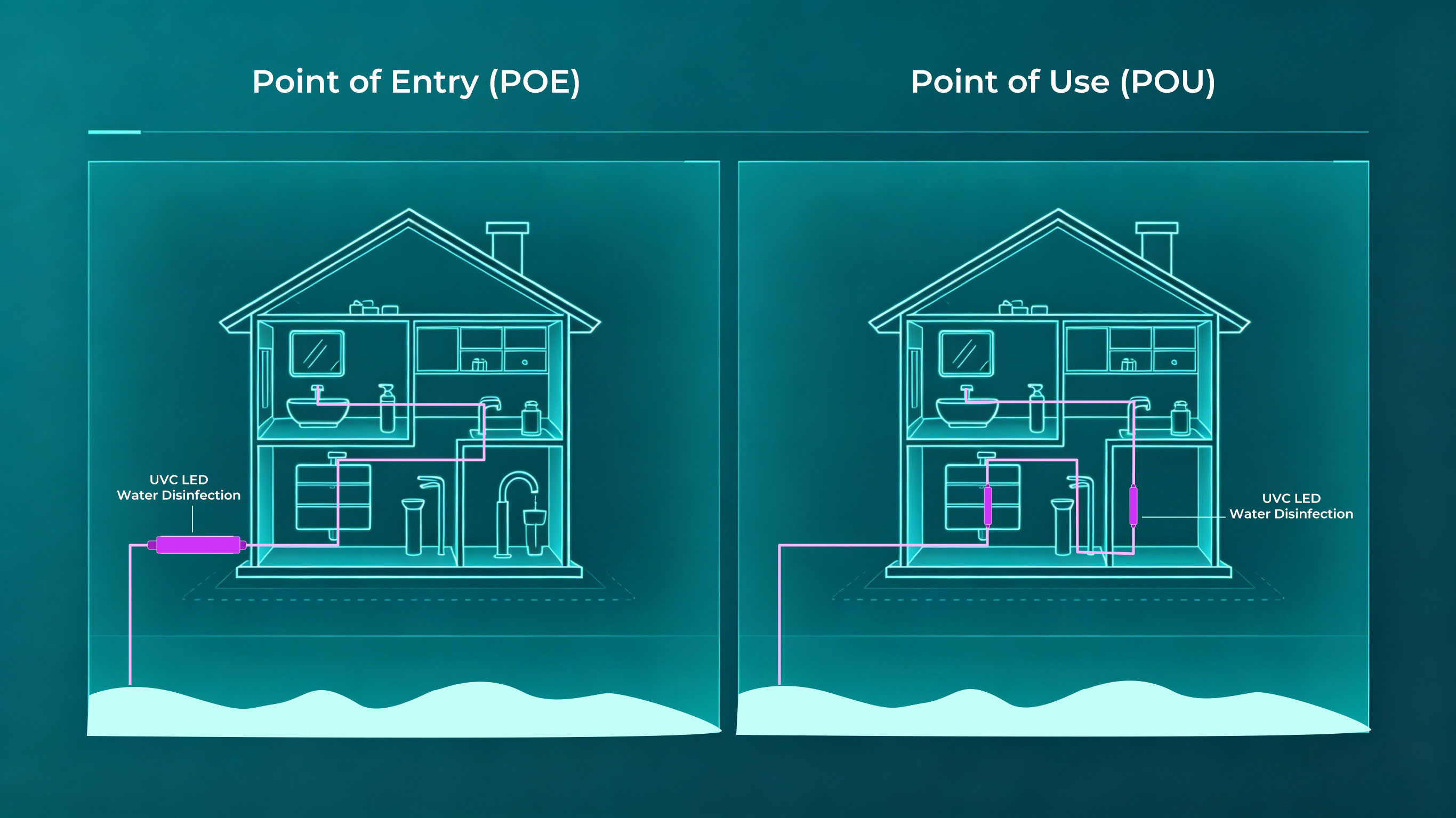

From a system design perspective, UVC LEDs are typically deployed in two ways:
Point of Entry (POE) Deployment: A UVC LED disinfection unit is installed at the main inlet to treat all incoming water for the entire household. This approach is suitable when there is a need for baseline safety in non-drinking uses such as bathing and cleaning, or when microbial contamination fluctuates frequently (e.g., during rainy seasons or agricultural cycles). Establishing a first line of defense at the entry point reduces overall microbial risk across all water uses.
Point of Use (POU) Deployment: UVC LED devices are installed at specific endpoints such as kitchen drinking faucets, providing precise, final-stage disinfection for potable water. This approach is ideal for users focused on drinking water safety while optimizing energy use and maintenance costs, avoiding unnecessary treatment of non-potable applications like flushing or irrigation.
In practice, these strategies are not mutually exclusive and can be combined. For example, a baseline POE disinfection system can reduce overall contamination load, while a higher-intensity POU system at the kitchen can address potential recontamination within pipes or microbial growth during storage, creating a multi-point redundant protection system.
Operational Mechanisms and Engineering Advantages
UVC LED systems offer strong potential for intelligent operation. With instant on/off capability, they can be dynamically controlled based on flow sensors or usage patterns. For instance, the system can activate disinfection when water flow is detected and shut off immediately when flow stops. This “on-demand” mode significantly reduces energy consumption and eliminates idle operation common in traditional UV systems, while also lowering thermal stress and extending component lifespan.
Additionally, UVC LEDs are compact and structurally flexible, making them easy to integrate into under-sink units, faucet modules, or all-in-one water purification systems. This is particularly advantageous in space-constrained residential environments. Their mercury-free design also eliminates environmental and safety risks associated with breakage or disposal of traditional UV lamps, aligning with modern environmental regulations and sustainability goals.
In terms of maintenance, UVC LED systems generally do not require frequent light source replacement. However, attention must be paid to scaling or fouling on quartz windows or reactor surfaces, as these can reduce UV transmission. Proper upstream filtration—such as removing suspended solids and hardness—is essential for maintaining long-term performance.
Implementation Path and System Integration Recommendations
It is important to note that UV disinfection does not remove dissolved contaminants or improve the chemical composition of water; its primary function is to inactivate microorganisms. Therefore, UVC LEDs should be used in conjunction with other treatment technologies rather than as a standalone solution.
A more robust implementation approach typically involves three steps: first, conduct water quality testing to identify contamination types and risk levels; second, configure appropriate pre-treatment units based on test results, such as sediment filtration to remove particulates, activated carbon for organic compounds and odors, or reverse osmosis to reduce dissolved contaminants; and finally, introduce UVC LED disinfection at appropriate points as a terminal or supplementary measure to ensure continuous microbial control.
Conclusion
Overall, UVC LEDs provide a flexible and engineering-friendly disinfection solution for private wells and off-grid homes. Their advantages in low-flow adaptability, rapid response, modular integration, and environmental safety allow them to integrate effectively into decentralized water systems and address the limitations of traditional solutions in dynamic response and energy efficiency.
In practical applications, UVC LEDs are best positioned as a critical component within a comprehensive water treatment system rather than as a standalone technology. Through a layered design combining POE baseline protection and POU endpoint reinforcement, along with proper water testing and pre-treatment measures, it is possible to achieve multi-level safety control—from overall household water use to drinking endpoints—under complex and variable source conditions, significantly enhancing long-term water safety and user confidence.
