The efficacy of any ultraviolet decontamination system rests entirely on the integrity of its core components. Selecting a reliable UVC LED manufacturing partner is a high-stakes engineering decision that dictates the success or failure of your entire product line. The rapid expansion of the UV market has led to an influx of underperforming and counterfeit components flooding the supply chain. Integrating substandard chips risks catastrophic product failure, false claims of sterilization, and severe liability in critical healthcare or municipal applications. You must move beyond marketing claims to rigorously evaluate technical specifications, thermal management capabilities, third-party validation, and supply chain stability. This guide provides a strict technical framework to evaluate suppliers, ensuring your next decontamination or curing system performs exactly as engineered. We examine wavelength accuracy, thermal resistance, and independent testing protocols to help you identify genuine, high-performance diodes for your specific application.
Application Dictates Specifications: The target microorganism, required dose, distance, and exposure time must drive your baseline requirements for wavelength (typically 260–280nm) and optical power.
Beware the Fake UVC Market: Counterfeit or misrepresented LEDs (often UVA or UVB packaged to look like UVC) are prevalent; verifiable, measurable UVC output data is non-negotiable.
Thermal Management is Critical: UVC LEDs suffer from low Wall-Plug Efficiency (WPE), meaning excess heat generation. A manufacturer’s packaging and thermal dissipation technology directly dictate component lifespan and sustained intensity.
Demand Rigorous Documentation: Shortlist only manufacturers capable of providing comprehensive LM-80 reports, independent radiometric testing, and tight binning tolerances.
Table of Contents
Define the specific end-use case before contacting a supplier. Surface, water, air purification, and specialized material curing all demand vastly different optical specifications. Establish baseline success criteria based on the required log reduction. A system targeting a 99.9% reduction requires significantly less radiant flux than one demanding a 99.999% reduction. You must map the relationship between required UV dose, target distance, and exposure time. This calculation determines the necessary diode output.
A water purification module with high flow rates requires intense, instantaneous exposure. The fluid dynamics dictate that pathogens pass the light source in fractions of a second. You need high-power arrays driven at maximum sustainable currents. In water treatment, the UV Transmittance (UVT) of the fluid drastically alters the required radiant flux. A fluid with 85% UVT requires a significantly denser diode array than a fluid with 95% UVT. Conversely, a static surface disinfection unit might achieve the same dose over a longer duration using lower-output components. For surface decontamination, consider the reflectivity of the surrounding materials. Polished aluminum reflectors can increase the effective dose delivered to the target, allowing you to drive the diodes at lower currents and extend their operational lifespan. Engineering teams must calculate the exact irradiance footprint required at the target surface to avoid over-specifying or under-powering the system.
Follow these steps to define your baseline requirements:
Identify the primary medium (air, water, or solid surface) and its UV transmittance properties.
Calculate the maximum distance from the light source to the furthest target area.
Determine the maximum allowable exposure time based on user workflow or fluid flow rates.
Compute the total required dose (mJ/cm²) to achieve the target log reduction.
Factor in optical losses from protective quartz sleeves or secondary lenses.
Analyze the action spectrum of the specific pathogens you are targeting. Different microorganisms absorb ultraviolet energy at varying rates. Determine the optimal peak wavelength required for your application. A peak of 265nm aligns closely with maximum DNA and RNA absorption for many pathogens. However, a 275nm peak often provides a better balance of manufacturing feasibility and optical output.
Establish acceptable tolerances for wavelength shift during operation. As junction temperatures rise, peak wavelengths can drift. Your manufacturer must provide data showing how their components maintain spectral stability under continuous load. Understanding the specific susceptibility of target spores, bacteria, or viruses ensures you select a diode optimized for actual germicidal efficacy rather than just raw optical power. Some pathogens exhibit photoreactivation, where they repair DNA damage if exposed to visible light shortly after UV treatment. Selecting a diode with a highly specific peak wavelength and zero visible light bleed minimizes this risk.
Target Pathogen Type | Optimal Absorption Peak | Recommended Wavelength Range | Typical Application |
|---|---|---|---|
Bacterial Spores (e.g., Bacillus subtilis) | ~270nm | 265nm - 275nm | Medical surface decontamination |
Viruses (e.g., SARS-CoV-2, Adenovirus) | ~265nm | 260nm - 270nm | HVAC air purification |
Protozoa (e.g., Cryptosporidium) | ~275nm | 270nm - 280nm | Municipal water treatment |
Fungal Spores | ~280nm | 275nm - 285nm | Agricultural storage facilities |

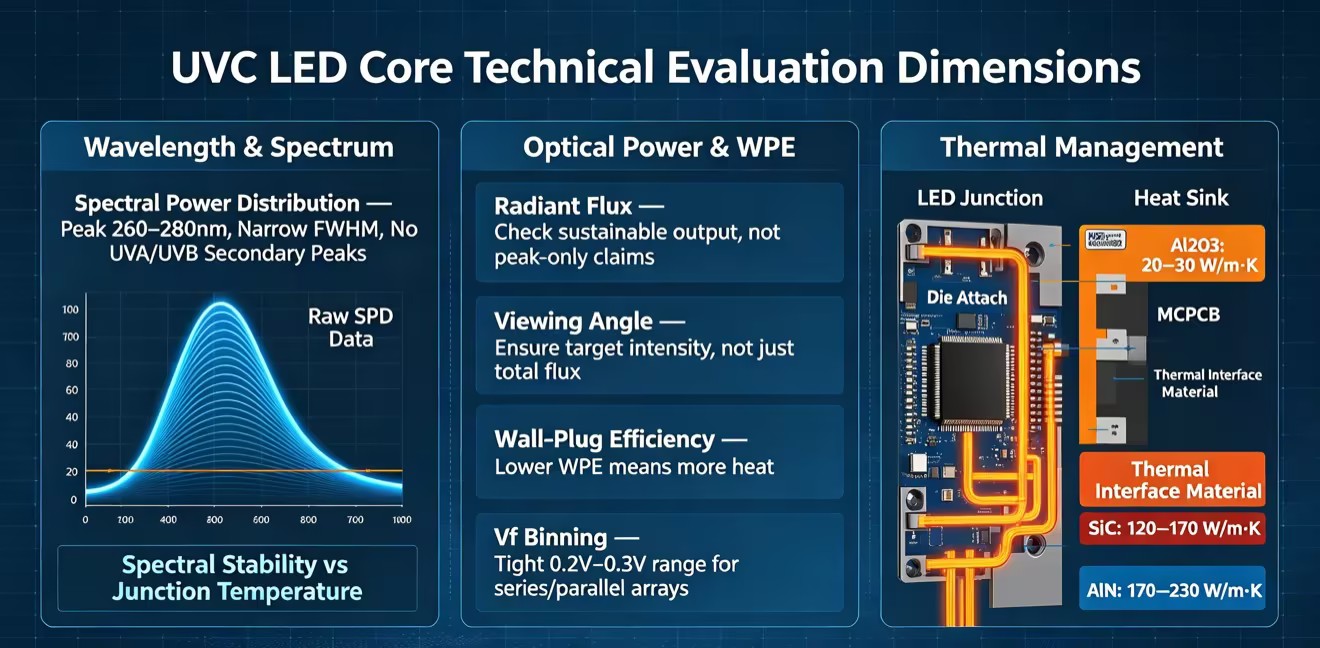

Review the manufacturer’s Spectral Power Distribution (SPD) data to confirm the UVC LED’s peak wavelength and emission range. Consistent wavelength binning helps maintain stable performance across different batches and multi-LED arrays. Key parameters such as Full Width at Half Maximum (FWHM) can also help evaluate spectral output. When possible, request raw SPD data or independent spectral test results to verify that the LEDs provide the required UVC output for the intended application.
Compare UVC LEDs based on radiant flux at the specified forward current and check whether the datasheet shows typical or maximum output. Wall-Plug Efficiency (WPE) is also important because it indicates how much electrical power is converted into usable UV light. In addition, evaluate the viewing angle and optics to ensure sufficient irradiance reaches the target area. For multi-LED arrays, consistent forward voltage (Vf) can help maintain balanced current distribution and reduce the risk of uneven performance or premature LED failure.
Analyze the thermal resistance of the LED package. High-performance diodes require advanced substrates like aluminum nitride rather than standard ceramics. Review the manufacturer's junction temperature specifications and derating curves. These curves dictate how hard you can drive the component before output drops. Evaluate the impact of the manufacturer's packaging on long-term lumen maintenance.
Robust packaging directly correlates with extended L70 and L50 lifespans. Poor thermal dissipation leads to rapid catastrophic failure or severe output degradation within hundreds of hours. Request data on the die-attach methods used. Eutectic bonding offers superior thermal conductivity compared to standard silver epoxies. It ensures heat moves rapidly from the semiconductor junction to the external heat sink.
The thermal path from the diode junction to the ambient air involves multiple interfaces. Even with an AlN substrate, poor solder voiding during the surface mount technology (SMT) process will create thermal bottlenecks. Specify maximum allowable voiding percentages in your PCBA assembly requirements. X-ray inspection of the solder joints is mandatory for high-power arrays.
Substrate Material | Thermal Conductivity (W/m·K) | Reliability in High-Power Applications | Manufacturer Tier |
|---|---|---|---|
Aluminum Oxide (Al2O3) | 20 - 30 | Low - Prone to rapid thermal degradation | Low-end / Counterfeit |
Silicon Carbide (SiC) | 120 - 170 | Moderate - Acceptable for low-current designs | Mid-range |
Aluminum Nitride (AlN) | 170 - 230 | High - Excellent heat dissipation | Premium / Industrial |
Copper Core (Specialized) | ~390 | Very High - Used in custom high-density arrays | Specialty Engineering |
Deep UVC LEDs require specialized semiconductor materials and manufacturing processes, so buyers should carefully verify unusually low-priced or poorly documented components. Check key specifications such as wavelength, optical output, thermal performance, substrate design, and package window materials. Reliable UVC LEDs should use materials suitable for deep UV transmission and long-term operation. Independent spectral testing and supplier documentation can help confirm that the component delivers the required UVC output and performance.
Request available lifetime testing, optical degradation data, and independent radiometric test reports from the manufacturer. These documents can help verify key specifications such as radiant flux, peak wavelength, and long-term performance. Where applicable, LM-80 test data and TM-21 projections can provide additional information about LED output maintenance and expected service life. Testing conditions, including temperature and drive current, should also be reviewed to ensure they are relevant to the intended application.

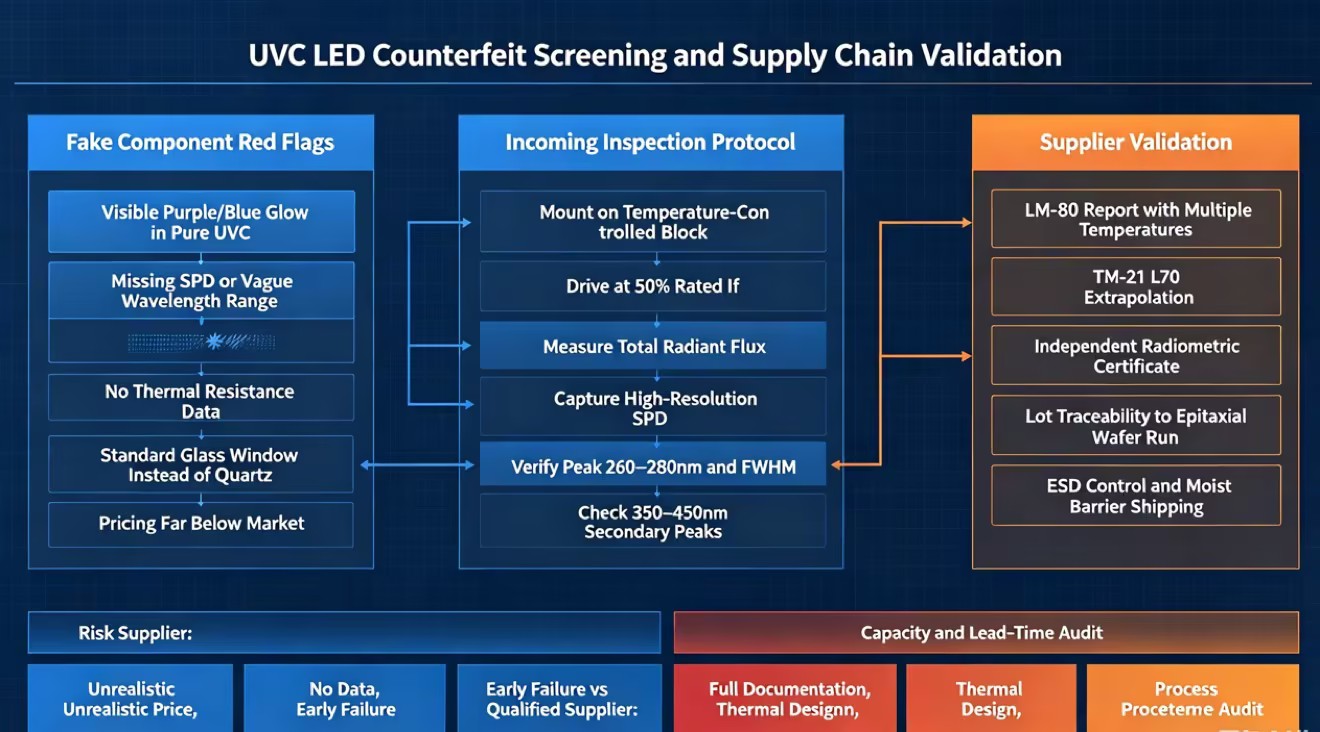

Look for red flags in datasheets. Missing spectral graphs, vague wavelength ranges, or a complete lack of thermal resistance data indicate a high-risk supplier. Establish a strict protocol for in-house spectrometer testing. When you receive initial manufacturer samples, test them immediately to verify measurable output in the 260-280nm range.
Fake components often emit a visible purple or blue glow while producing zero germicidal energy. Authentic deep ultraviolet light is entirely invisible to the human eye. Any visible light emitted from a supposedly pure deep UV diode is a byproduct of poor chip architecture or intentional misrepresentation by the supplier.
Implement this incoming inspection protocol for all new samples:
Mount the sample diode on a temperature-controlled test block.
Drive the component at exactly 50% of its rated maximum forward current.
Use a calibrated integrating sphere to measure total radiant flux.
Capture the spectral power distribution using a high-resolution spectrometer.
Verify the peak wavelength and calculate the FWHM.
Check for any emission peaks in the 350nm to 450nm range.
Evaluate whether the manufacturer can provide custom PCBA designs, multi-wavelength UVC LED arrays, optical lenses, and engineering support. A reliable supplier should help with MCPCB design, thermal management, and driver selection rather than simply supplying individual LEDs. For deep UVC applications, the manufacturer should also provide suitable constant-current driver solutions and thermal protection to prevent overheating and maintain stable LED performance.
Evaluate the manufacturer’s quality control for optical power, forward voltage, and wavelength to ensure consistent UVC LED performance between batches. Suppliers should also follow proper ESD protection and handling procedures to reduce the risk of component damage during production. In addition, clear lot codes and product traceability help identify affected batches if quality problems occur after installation.
Assess the supplier's scalability from prototyping to high-volume commercial production. A supplier might deliver excellent prototypes but fail to meet commercial volume demands. Evaluate supply chain resilience and raw material sourcing. Delays in acquiring aluminum nitride substrates can halt your production line.
Review their historical lead-time accuracy. Reliable suppliers maintain buffer stock and transparent communication regarding production schedules. Investigate their redundancy plans. A robust supplier will have contingency measures in place to mitigate disruptions in the global semiconductor supply chain. This ensures your manufacturing schedule remains uninterrupted even during material shortages.
Inquire about their factory burn-in processes. Reputable manufacturers perform a short burn-in on 100% of their production units to weed out early infant mortality failures. If a supplier skips this step to accelerate lead times, you will absorb those early failures on your own assembly line.
Request raw spectral power distribution (SPD) data files and LM-80 reports from your top three shortlisted manufacturers.
Initiate in-house thermal degradation testing by driving sample diodes at maximum rated current on your custom MCPCBs.
Measure the actual irradiance footprint at your specific target distance using a calibrated integrating sphere and spectrometer.
Audit the supplier's factory floor to verify their electrostatic discharge (ESD) protocols and automated binning machinery.
A: Real components require verification via a spectrometer to confirm a peak emission between 200-280nm. Fake diodes often emit visible purple or blue light and peak in the UVA range (365-395nm). Always demand independent radiometric testing data and perform in-house spectral analysis on all incoming samples.
A: For disinfection and sterilization, wavelengths between 260nm and 275nm are generally most effective. This specific range aligns closely with the peak absorption curve of microbial DNA and RNA, ensuring maximum germicidal efficacy.
A: Manufacturing these components requires specialized materials like Aluminum Nitride (AlN) substrates and highly complex epitaxial growth processes. These materials are significantly more difficult to handle and process than the standard sapphire or silicon substrates used in visible or UVA lighting.
A: WPE measures the percentage of electrical power converted into optical ultraviolet output. Current deep UV diodes have relatively low WPE, meaning the vast majority of energy is converted into heat. This makes advanced thermal management hardware an absolute requirement for system stability.
A: Lifespan depends heavily on operating current and thermal management. High-quality components from reputable manufacturers typically offer an L70 lifespan of 10,000 to 20,000 hours when properly cooled and driven within specified forward current limits.
A: An LM-80 report is an industry-standard test that measures the lumen maintenance of a diode over time at specific temperatures. It is essential for verifying the manufacturer's lifespan claims and ensuring your final system maintains its required germicidal dose over years of operation.
