With the continuous improvement of food safety and public health awareness, the catering industry has increasingly stringent requirements for the efficiency and safety of tableware disinfection. Traditional disinfection methods (such as high-temperature steam or chemical disinfectants) have issues including high energy consumption, potential residual risks, or insufficient material compatibility. In recent years, UV-C LED (deep ultraviolet light-emitting diode) surface disinfection technology has demonstrated broad application prospects in the catering industry due to its advantages of high efficiency, no chemical residues, instant on/off capability, and more.
This article systematically explains the working principle of UV-C LED disinfection, its applications in catering scenarios, relevant hygiene standards, and provides targeted product optimization suggestions.
1. Working Principle of UV-C LED Disinfection
UV-C LED is a solid-state light source that emits wavelengths in the 200–280 nm range, with the optimal germicidal wavelength typically around 260-280 nm. This band is close to the absorption peak of nucleic acids (DNA/RNA). When UV-C light irradiates microorganisms (bacteria, viruses, fungi, etc.), high-energy photons are absorbed by the nucleic acids, causing adjacent thymine bases to form dimers, which disrupts the microorganism's replication and transcription functions, thereby achieving inactivation.
Compared to traditional low-pressure mercury lamps (main wavelength 254 nm), UV-C LEDs offer significant advantages:
- Mercury-free and environmentally friendly, compliant with the Minamata Convention on Mercury;
- Instant on/off with no preheating required, enabling on-demand use;
- Compact size and easy integration, suitable for embedding in automated equipment;
- Strong shock resistance, ideal for mobile or high-frequency scenarios.
Multiple studies show that UV-C LEDs in the 260–280 nm band can achieve over 99.9% inactivation efficiency against common foodborne pathogens (such as Escherichia coli O157:H7, Staphylococcus aureus, and Salmonella).
2. Application Scenario Analysis in the Catering Industry
In the catering sector, UV-C LEDs can be flexibly applied in the following scenarios:
(1) Integration into tableware automatic disinfection cabinets or conveyor belts
Embedded UV-C LED modules at the backend of dishwashers or on tableware conveyor lines provide rapid irradiation to the surfaces of wet tableware after cleaning, compensating for the reduced efficiency of thermal disinfection on wet surfaces.

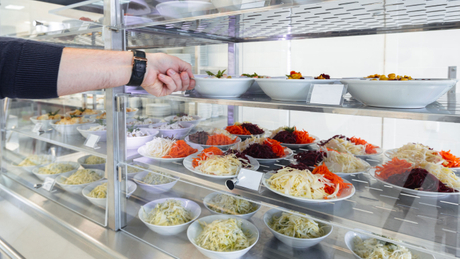

(2) Self-service food pickup stations or smart meal cabinets
In unmanned restaurants or takeout pickup cabinets, UV-C LEDs can be periodically activated in enclosed spaces to prevent cross-contamination. Some smart meal storage devices have already incorporated similar UV-C technology to enhance hygiene levels in storage areas.
(3) Mobile disinfection equipment
Suitable for large canteens or banquet back-of-house areas, providing supplementary rapid surface disinfection for temporarily stacked tableware.
3. Hygiene Standards and Dosage Requirements
Chinese relevant standards impose strict requirements on tableware disinfection, such as ensuring no detectable coliforms or Salmonella on tableware surfaces in catering service processes. The effectiveness of UV-C disinfection primarily depends on the radiation dose (Dose = irradiance × time, unit: mJ/cm²). According to authoritative ultraviolet disinfection guidelines, achieving 99.9% inactivation (3-log reduction) of common foodborne pathogens requires specific dose support. In practice, applications should be validated through experiments and comply with national food safety regulations.
(Note: Common foodborne pathogens often require doses in the range of several to tens of mJ/cm² for 3- to 4-log reductions on surfaces, depending on the pathogen, surface type, and wavelength; for example, studies indicate doses around 5–20 mJ/cm² can achieve significant reductions for bacteria like E. coli, Salmonella, and Listeria on various surfaces. Actual implementation should refer to validated testing and standards such as GB 14934 for disinfected tableware.)
4. Product Customization Suggestions
Given the complexity of catering scenarios (such as diverse tableware shapes, wet surfaces, and high usage frequency), UV-C LED disinfection equipment requires optimized design:
(1) Optical design adapted to irregular surfaces
Tableware (e.g., bowls, spoons, chopsticks) easily creates shadow zones. It is recommended to use multi-angle LED arrays (360° surround or top + sidewall combinations), diffuse reflective chambers (high-reflectivity PTFE materials with >95% reflectance), or dynamic rotating holders to ensure uniform irradiation across all surfaces.
(2) Safety protection mechanisms
UV-C is harmful to human skin and eyes. Equipment must incorporate infrared sensors (automatic power-off when door opens), metal shielding + quartz glass windows (UV-C transmissive but blocking visible light), operation indicator lights, and audible alerts, in compliance with relevant disinfectant and equipment safety standards.
(3) Intelligence and energy efficiency management
Equip with dose sensors for real-time monitoring of disinfection status; support IoT connectivity to record disinfection logs for food safety traceability; optional pulsed irradiation mode to reduce energy consumption while ensuring effectiveness.
(4) Material compatibility
UV-C may accelerate aging of certain plastics (e.g., PP and PS becoming yellow and brittle). Recommend single irradiation time ≤30 seconds; for plastic tableware, use low-irradiance long-duration mode; prioritize application on UV-C-resistant materials such as ceramics and stainless steel.
5. Conclusion
UV-C LED technology provides a green, efficient, and intelligent new solution for tableware disinfection in the catering industry. Its promotion must strictly adhere to national hygiene standards and optimize engineering design based on actual scenarios. As UV-C LED luminous efficiency continues to improve and costs gradually decline, this technology is expected to become widely adopted in small and medium-sized catering enterprises, serving as a key support for "bright kitchen and bright stove" initiatives and smart food safety systems.
