The most common point of failure in ultraviolet system procurement happens long before installation. Facility managers and engineers frequently conflate raw lamp power with actual disinfection capability. Purchasing a system based entirely on its high optical output often leads to severely under-sized installations, regulatory compliance failures, or wasted capital on massively over-engineered equipment. Raw output tells you nothing about the system's ability to neutralize pathogens.
Successful microbial inactivation requires a precise understanding of the mathematical relationship between intensity, time, and wavelength. You cannot evaluate modern disinfection equipment without separating these variables. This distinction drives the technical evaluation of all modern systems. Whether you are implementing emerging UVC LED technology or relying on traditional mercury-vapor lamps, you must calculate the exact energy delivered to the target. We will explore how understanding UV Dose vs UV Intensity ensures your system meets strict biological performance standards.

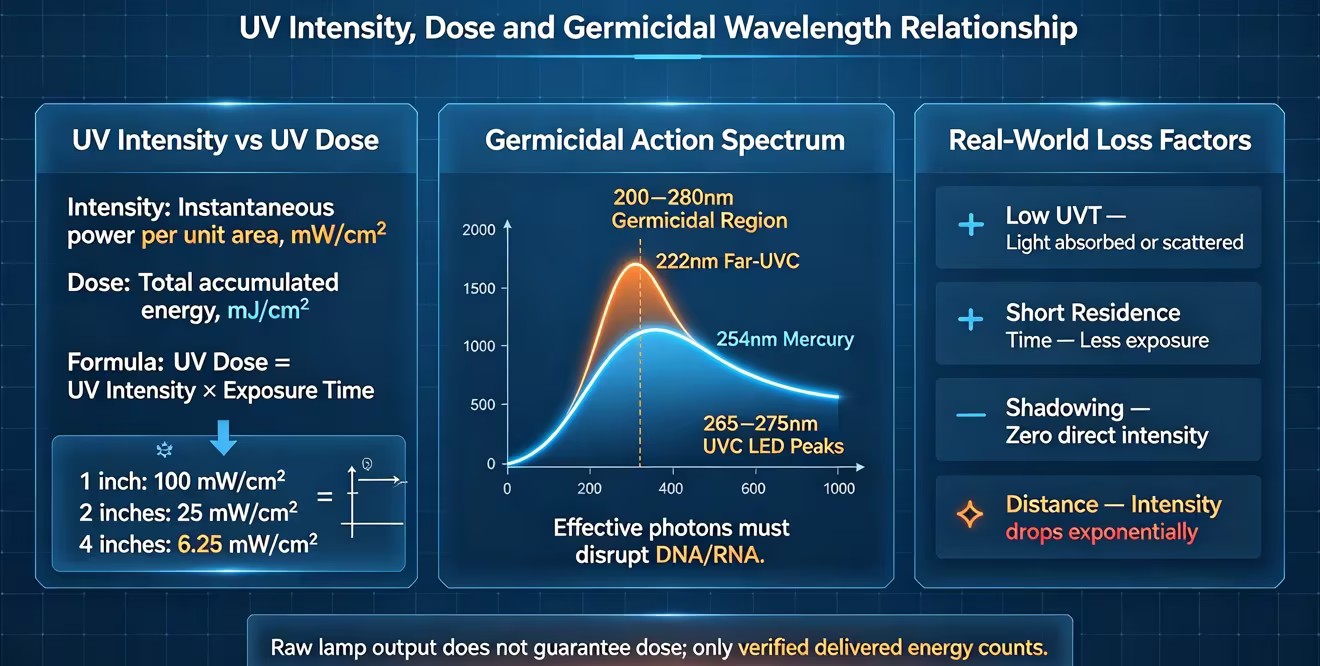

Distinct Metrics: UV intensity (irradiance) is the instantaneous power of light reaching a specific location or surface, while UV dose (fluence) is the total accumulated energy delivered over time.
The Disinfection Equation: Microbial inactivation (log reduction) is strictly dictated by UV Dose, calculated as UV Intensity × Exposure Time.
The Germicidal Region: Raw intensity is irrelevant if it falls outside the germicidal action spectrum (200-280nm); effective dose relies on wavelengths proven to disrupt pathogenic DNA/RNA (e.g., 254nm, 222nm, or specific UVC LED peaks).
System Degradation: Sizing calculations must account for End-of-Lamp-Life (EOLL) intensity and environmental transmittance, ensuring the required dose is maintained years after installation.
Technology Shifts: The adoption of UVC LED systems requires a different approach to evaluating intensity distribution and dose delivery compared to traditional mercury-vapor lamps.
Table of Contents
UV intensity represents the rate of UV energy arriving at a specific unit area at a specific moment. Engineers refer to this metric as irradiance. You measure it in milliwatts per square centimeter (mW/cm²) or watts per square meter (W/m²). Intensity measures instantaneous power. It does not measure accumulated work. When you look at a specification sheet for a lamp, the manufacturer usually lists the intensity measured directly at the surface of the quartz glass.
The Inverse Square Law heavily dictates UV intensity in real-world applications. As you move away from the light source, the intensity drops exponentially. If a lamp produces 100 mW/cm² at a distance of one inch, moving the target to two inches drops the intensity to 25 mW/cm². Moving it to four inches drops the intensity to 6.25 mW/cm². This physical reality makes spatial distribution highly variable. In room disinfection or large municipal water reactors, the intensity near the lamp surface differs drastically from the intensity at the reactor wall. You cannot rely on a single intensity reading to validate a system's effectiveness across a large volume.
UV dose is the total accumulated UV energy absorbed by a target microorganism. Scientists refer to this as fluence. You measure dose in millijoules per square centimeter (mJ/cm²) or joules per square meter (J/m²). Dose represents the actual work done by the system. It measures the physical damage inflicted on the pathogen's cellular structure, specifically the dimerization of thymine or uracil bases in the DNA and RNA.
Regulatory bodies strictly use UV dose to validate log reduction claims. The EPA, NSF, and local health departments do not certify systems based on how bright the lamps are. They certify systems based on the verified dose delivered to the fluid or surface. Dose is the only metric that guarantees biological neutralization. If a health inspector reviews your facility, they will look for the validated dose delivery under your specific operating conditions, not the wattage of your power supply.
You calculate the delivered energy using a straightforward formula: UV Dose = UV Intensity × Exposure Time. This equation forms the foundation of all system sizing and reactor design.
Consider a practical example comparing two vastly different industrial processes. A high-speed beverage bottling line moves containers past a disinfection array at two meters per second. The bottle only remains in the active UV field for 0.5 seconds. To achieve a target dose of 40 mJ/cm², the array must deliver an intense 80 mW/cm² at the bottle surface. Conversely, a municipal water holding tank might retain water in the UV chamber for a full 10 seconds. To hit the exact same 40 mJ/cm² dose, the tank system only needs to maintain an intensity of 4 mW/cm². Both scenarios achieve identical microbial inactivation. The target pathogen responds only to the total accumulated energy, regardless of how quickly that energy arrives.
Not all UV intensity contributes to disinfection. You must measure intensity within the germicidal UVC region to achieve biological results. This action spectrum spans from 200nm to 280nm. Light outside this band lacks the specific photon energy required to shatter the molecular bonds within genetic material. A lamp could output massive amounts of UVA or UVB intensity, but it would have virtually zero germicidal effect.
Different technologies emit different wavelengths. Traditional low-pressure mercury lamps output a fixed, sharp peak at 254nm. Emerging Far-UVC technologies operate at 222nm. Modern solid-state systems offer distinct advantages here. Engineers manufacture these diodes to target specific peak absorption wavelengths. Some pathogens absorb 265nm or 275nm more efficiently than 254nm. Tuning the wavelength maximizes the germicidal impact of every photon emitted, allowing for highly efficient reactor designs.
Metric | Scientific Term | Standard Units | Definition | Impact on Disinfection |
|---|---|---|---|---|
UV Intensity | Irradiance | mW/cm² | Instantaneous power per unit area | Determines how fast a dose accumulates |
UV Dose | Fluence | mJ/cm² | Total accumulated energy over time | Directly dictates microbial log reduction |
Exposure Time | Residence Time | Seconds (s) | Duration the target remains in the UV field | Multiplies intensity to create the final dose |
Wavelength | Action Spectrum | Nanometers (nm) | The specific band of light emitted | Determines the biological efficiency of the photons |
Exposure time dictates success just as much as optical power. In water and air treatment, flow rates determine this exposure time. Engineers call this residence time. It represents the exact duration a pathogen spends inside the active UV field before exiting the reactor.
If you double the flow rate of a water system during a peak demand event, you cut the exposure time in half. Halving the exposure time halves the delivered UV dose. The lamp intensity remains completely unchanged, but the disinfection capability plummets. Surface disinfection faces similar constraints. A mobile disinfection robot moving too quickly across a hospital room will leave pathogens viable, regardless of how powerful its lamps are. You must control the speed of the moving target or the flow of the fluid to guarantee the dose.
Raw lamp output differs entirely from penetrating intensity. Fluid clarity directly impacts how far light travels. In water treatment, we measure this as UV Transmittance (UVT). UVT represents the percentage of light that successfully passes through one centimeter of the fluid. Reverse osmosis water might have a UVT of 98%. Wastewater effluent might have a UVT of 60%.
A fluid with low UVT absorbs or scatters the light rapidly. If the UVT is 60%, 40% of the light energy is lost in the first centimeter. By the time the light travels three centimeters from the lamp, the intensity is nearly zero. Suspended particulate matter in HVAC air ducts creates similar barriers. Poor transmittance reduces the intensity reaching the outer edges of the reactor, directly lowering the final dose for pathogens traveling along the walls.
Surface disinfection introduces shadowing effects. High intensity at the source cannot compensate for physical obstructions. If a pathogen sits behind a medical monitor, under a desk, or within the threads of a screw, it receives zero direct intensity. Extreme angles of incidence also reduce effective power. Light striking a surface at a steep angle spreads its energy over a larger area, dropping the localized intensity. You must map the spatial environment and use multiple light angles to eliminate blind spots.
Water Type | Typical UVT (%) | Intensity Loss at 1cm | Impact on Reactor Design |
|---|---|---|---|
Reverse Osmosis (RO) | 95% - 99% | 1% - 5% | Allows for wide reactor bodies and fewer lamps. |
Municipal Drinking Water | 85% - 95% | 5% - 15% | Standard reactor sizing with moderate lamp spacing. |
Industrial Wastewater | 50% - 70% | 30% - 50% | Requires narrow lamp spacing and thin fluid layers. |
Microorganisms possess vastly different biological defenses. Their unique DNA and RNA structures dictate their resistance to ultraviolet light. A dose that easily destroys one virus might barely affect a tough protozoan cyst. You must match the delivered energy to the specific biological target you intend to neutralize.
Achieving a 4-log reduction (99.99% neutralization) of E. coli requires a relatively low dose, typically around 6 to 10 mJ/cm². Conversely, neutralizing Adenovirus requires a massive dose exceeding 100 mJ/cm² because its double-stranded DNA repairs itself efficiently. Cryptosporidium and Giardia fall somewhere in the middle, usually requiring around 22 mJ/cm² for a 3-log reduction. You should always demand specific dose-response tables from manufacturers. Never accept generic marketing claims based purely on raw intensity. The system must prove it can deliver the exact mJ/cm² required for your specific pathogen.
The physical light distribution differs fundamentally between technologies. Traditional mercury lamps emit a broad, cylindrical intensity field. They push light in 360 degrees along the entire length of a quartz tube. This omnidirectional output often results in wasted energy striking the stainless steel reactor walls, where it converts to heat rather than contributing to the dose.
Solid-state diodes offer highly directional, point-source intensity. They emit light in a focused cone, typically around 120 degrees. This directional nature allows engineers to focus the light exactly where the fluid flows. Optimized reactor designs capture nearly all emitted photons. This efficiency means you can often achieve higher verified doses using lower overall system power. The light goes exactly where it is needed, minimizing wall losses.
Solid-state systems provide instant-on and instant-off capabilities. Mercury lamps require significant warm-up times, sometimes up to 15 minutes, to reach optimal intensity. They suffer severe degradation if cycled on and off frequently, forcing operators to leave them running 24/7 even when no water is flowing. Diodes allow for precise dose control in variable-flow applications. You can pulse the light or adjust output instantly to match real-time flow rates, ensuring consistent dose delivery without warm-up penalties or wasted electricity.
You cannot calculate dose simply by dividing the reactor volume by the flow rate. Fluid does not move uniformly through a pipe. Water traveling down the center of a pipe moves much faster than water dragging along the pipe walls due to friction. This velocity gradient means pathogens experience vastly different exposure times depending on their physical path through the chamber.
Engineers use computational fluid dynamics (CFD) combined with optical modeling to solve this. CFD maps the exact trajectory of thousands of particles through the reactor. Optical modeling maps the intensity field generated by the lamps. Combining these allows engineers to calculate the accumulated dose for every single particle. This prevents "short-circuiting." Poorly designed reactors allow fast-moving water to bypass the high-intensity zones. If a pathogen rides a fast current along the outer wall, it might exit the reactor without receiving the minimum required dose. Proper design incorporates baffles and mixing rings to force turbulent flow, pushing pathogens from the dark edges into the bright center.
You must size a system based on its lowest possible operational state. Day-one factory intensity is a useless metric for long-term compliance. All ultraviolet sources degrade over time. You must design for the end of the maintenance cycle, ensuring the system still delivers the required dose on the last day before you replace the lamps.
Engineers calculate the Reduction Equivalent Dose (RED). This calculation factors in the natural aging curves of the light source. A standard mercury lamp might lose 20% to 40% of its intensity after 9,000 hours of operation. The calculation also applies a Fouling Factor to account for mineral buildup, like calcium and iron, on the quartz sleeves protecting the lamps. If you apply an EOLL factor of 0.8 and a Fouling Factor of 0.8, your system will only operate at 64% of its original intensity at the end of the year. Solid-state diodes feature highly predictable degradation curves, allowing for much more accurate EOLL dose modeling. If your system cannot deliver the target RED under these degraded conditions, it is undersized.
Sizing errors carry severe operational consequences. Relying on peak intensity claims inevitably leads to under-sizing. An undersized system will fail independent bioassays and routine health inspections. This failure results in regulatory fines, contaminated products, and potential public health risks. You cannot fix an undersized system with a software update; you must rip out the piping and install a larger reactor.
Over-sizing carries its own penalties. Applying massive, arbitrary safety margins to your dose calculations inflates your physical footprint. You end up installing unnecessary lamps, larger electrical panels, and oversized cooling systems. This excessive equipment draws massive amounts of power. It also forces your maintenance team to replace dozens of extra lamps and clean extra quartz sleeves during every service cycle. Accurate dose modeling eliminates both risks, providing a system that meets compliance without bloating your operational budget.
Theoretical intensity calculations hold no weight with regulatory bodies. You must prove the system works in the real world. Third-party validation protocols exist to verify actual dose delivery. The USEPA UVDGM (Ultraviolet Disinfection Guidance Manual), NSF/ANSI 55, and DVGW represent the gold standards in the industry.
These protocols require rigorous independent bioassays. Technicians inject live, harmless surrogate organisms, such as MS2 bacteriophage, into the fluid stream upstream of the reactor. They run the system at specific flow rates and specific UVT levels. They then sample the effluent downstream and count the surviving organisms in a laboratory. This biological count proves exactly what dose the reactor delivered under those exact conditions. You must require these independent validation reports before purchasing any equipment.
To ensure your ultraviolet disinfection system meets all biological and regulatory requirements, execute the following steps during your procurement process:
Define the exact log reduction required for your specific target pathogens based on local regulatory standards and facility requirements.
Calculate the maximum peak flow rate and the absolute minimum UV transmittance your facility will experience during worst-case operational conditions.
Request a detailed dose-modeling report from prospective vendors that explicitly includes End-of-Lamp-Life (EOLL) degradation and quartz sleeve Fouling factors.
Demand independent, third-party bioassay validation certificates that match your exact operational parameters before issuing any purchase orders.
A: Multiply the UV intensity (in mW/cm²) by the exposure time (in seconds) to get the UV dose in mJ/cm². This simple formula dictates the total accumulated energy delivered to the target pathogen.
A: There is no single correct intensity; it depends entirely on the exposure time available and the distance from the target. High-speed applications require higher intensity to achieve the necessary dose, while static applications can use lower intensity over a longer period.
A: Yes. To contribute to an effective germicidal dose, the UV intensity must fall within the UVC spectrum (200-280nm). Wavelengths like 254nm or specific solid-state outputs are highly effective at disrupting pathogenic DNA, whereas intensity outside this range has no germicidal effect.
A: Individual diodes generally have lower raw optical output than large mercury lamps, but their directional nature allows engineers to focus the intensity precisely. This often results in higher delivered doses with lower overall power consumption.
A: UVT measures how much light penetrates a fluid. Low UVT means the fluid absorbs or scatters the light quickly. This drastically reduces the intensity reaching the outer edges of the reactor, which lowers the final delivered dose.
