Global regulatory shifts and rising environmental safety standards force facility managers to re-evaluate legacy water and surface treatment infrastructure. Traditional mercury-vapor lamps present severe operational liabilities. You face hazardous waste disposal protocols, fragility risks from glass and quartz breakage, long warm-up times, and continuous energy draw even during non-peak flow periods. Transitioning to modern solid-state systems requires a rigorous technical evaluation. You must assess disinfection efficacy and system scalability to ensure operational continuity without compromising safety. We will examine how to implement these systems effectively, matching specific biological targets to engineered wavelengths and validating performance through independent testing.
Regulatory Future-Proofing: Mercury-Free UV systems eliminate hazardous material handling, simplifying compliance with tightening global environmental mandates and mitigating the risks of accidental toxic exposure.
Operational Agility: Solid-state UVC LEDs offer instant on/off capabilities, drastically reducing energy consumption during variable flow conditions compared to continuous-burn legacy lamps.
Precision Engineering & Tunability: Successful implementation requires exact wavelength targeting (typically 260-275nm). Unlike mercury lamps, UVC LEDs can be engineered to match specific pathogen DNA/RNA absorption peaks for higher disinfection efficiency.
Table of Contents
Traditional mercury-vapor lamps use fragile glass and quartz components that can break during operation or maintenance, creating contamination and hazardous material handling risks. They also require warm-up and cool-down periods and are often operated continuously, which increases energy use and lamp wear. If a lamp breaks, facilities may need to stop production, clean the affected area, and follow special mercury disposal procedures. These safety, maintenance, and operating requirements are important limitations when comparing traditional mercury UV lamps with mercury-free UVC LED systems.
Solid-state semiconductor technology fundamentally changes how facilities approach pathogen inactivation. Mercury-Free UV systems utilize UVC Light Emitting Diodes (LEDs) as a safer, modern alternative. Instead of exciting a toxic gas, these systems pass an electrical current through a semiconductor material. As electrons recombine with electron holes within the semiconductor lattice, they release energy in the form of photons. This process generates specific, targeted ultraviolet wavelengths without relying on heavy metals or toxic gases. You get pure optical power without the hazardous baggage.
The ability to engineer specific wavelengths represents a massive leap in disinfection efficiency. Legacy systems generate fixed wavelengths entirely dependent on the physical properties of the mercury gas. Low-pressure mercury lamps emit a sharp peak at 254nm, while medium-pressure lamps emit a broad, less efficient spectrum. In contrast, manufacturers can dope the semiconductor materials in UVC LEDs to emit light at precise, selectable wavelengths. Engineers typically target the 260nm to 275nm range. This specific band aligns perfectly with the peak absorption curves of most pathogen DNA and RNA, maximizing the germicidal impact.
Durability advantages heavily favor solid-state designs. UVC LEDs are compact, shatterproof devices. They do not require fragile glass tubes or delicate internal filaments. The semiconductor chip sits inside a robust, protective package that withstands severe mechanical shock and vibration. This rugged construction eliminates the risk of glass contamination in sensitive process streams. You can deploy solid-state systems in high-vibration environments, mobile applications, and remote sites where traditional glass lamps would shatter within days.
Effective UV disinfection depends on delivering the correct UV dose, or fluence, for the target pathogen. Different microorganisms require different doses, and performance is commonly measured by log reduction, with a 4-log reduction equal to 99.99% inactivation. UVC LEDs can provide selected wavelengths within the germicidal range, allowing the system to target strong UV absorption regions of microbial DNA and RNA. This targeted output can improve the use of optical power and help achieve the required disinfection performance.
Water quality and flow rate are key factors when sizing a UVC LED disinfection system. UV Transmittance (UVT) shows how much UV light can pass through the water, while turbidity, suspended solids, and organic matter can reduce UV penetration. The system should therefore be designed for the lowest expected UVT. Flow conditions also affect UV dose because water moves through the reactor at different speeds. Proper reactor design and flow control help ensure that microorganisms receive the required UV exposure for effective disinfection.
Environmental regulations are increasing pressure on facilities to reduce the use of mercury-containing equipment. The Minamata Convention on Mercury supports global efforts to control mercury emissions and releases, while local regulations may also require strict handling and disposal of mercury-containing waste. Switching to mercury-free UV technology can reduce hazardous material handling, spill-response requirements, and specialized recycling needs, while helping facilities prepare for changing environmental requirements.
Traditional UV lamps fail to meet the demands of modern, decentralized infrastructure. In decentralized water treatment scenarios, facilities operate intermittently based on localized demand. Mercury lamps, with their long warm-up times and continuous power requirements, are entirely unsuited for intermittent operation. UVC LEDs thrive in these environments. They power on instantly, deliver immediate germicidal output, and power down the moment flow stops. You conserve critical resources and extend the lifespan of your equipment.
Remote off-grid installations and mobile purification units also demand solid-state solutions. Off-grid systems rely on limited solar or battery power. The massive energy spikes required to strike a mercury arc lamp can easily overload small inverters. UVC LEDs operate on low-voltage direct current, integrating seamlessly with battery systems. Furthermore, the shatterproof nature of LEDs ensures that mobile purification units deployed in disaster relief or military operations survive rough transport over hostile terrain. You get reliable disinfection anywhere on the planet.
Eliminating fragile quartz sleeves and bulky high-voltage ballasts creates entirely new markets for UV Disinfection Technology. Legacy systems require massive footprints to house the lamps, ballasts, and cooling mechanisms. Solid-state LEDs are microscopic in comparison. This miniaturization allows engineers to integrate powerful disinfection capabilities directly into compact medical devices. Sterilization chambers can now be built into surgical equipment processors, dental water lines, and automated endoscope reprocessors.
Transportation infrastructure and point-of-use commercial applications are rapidly adopting this technology. Passenger trains, aircraft, and cruise ships require robust, low-maintenance water treatment systems that fit into tightly constrained mechanical spaces. UVC LEDs can be embedded directly into faucets, water dispensers, and ice machines. This point-of-use integration ensures that water is disinfected mere milliseconds before consumption. You eliminate the risk of biofilm contamination in downstream plumbing lines entirely.
The instant-on feature of solid-state LEDs translates directly into automated, flow-paced operation. Legacy systems waste power by burning continuously. In contrast, UVC LED reactors integrate with flow sensors to operate only when water is moving. If a commercial facility uses water for only four hours a day, the LED system remains off for the remaining twenty hours. This flow-paced automation drastically reduces overall energy consumption and extends the calendar life of the disinfection system by years. You only use power when you are actively treating water.
Spatial requirements often dictate technology choices in retrofitting projects. Traditional reactors are long, cylindrical vessels that require significant clearance for lamp removal and maintenance. The compact nature of LED arrays allows for radical new reactor geometries. Engineers can design flat, rectangular, or highly customized chambers that fit into previously unusable spaces. This flexibility allows facilities to retrofit advanced disinfection capabilities into constrained mechanical rooms without undertaking expensive structural modifications. You maximize your existing floor space.
Thermal management is important for maintaining UVC LED performance and lifespan. Although UVC LEDs transfer less heat directly into the water than traditional mercury lamps, the semiconductor junction still generates heat that must be removed. Poor cooling can reduce UV output and shorten LED life. Effective systems use heat sinks, thermal interface materials, and suitable cooling methods to control temperature and maintain stable disinfection performance over time.

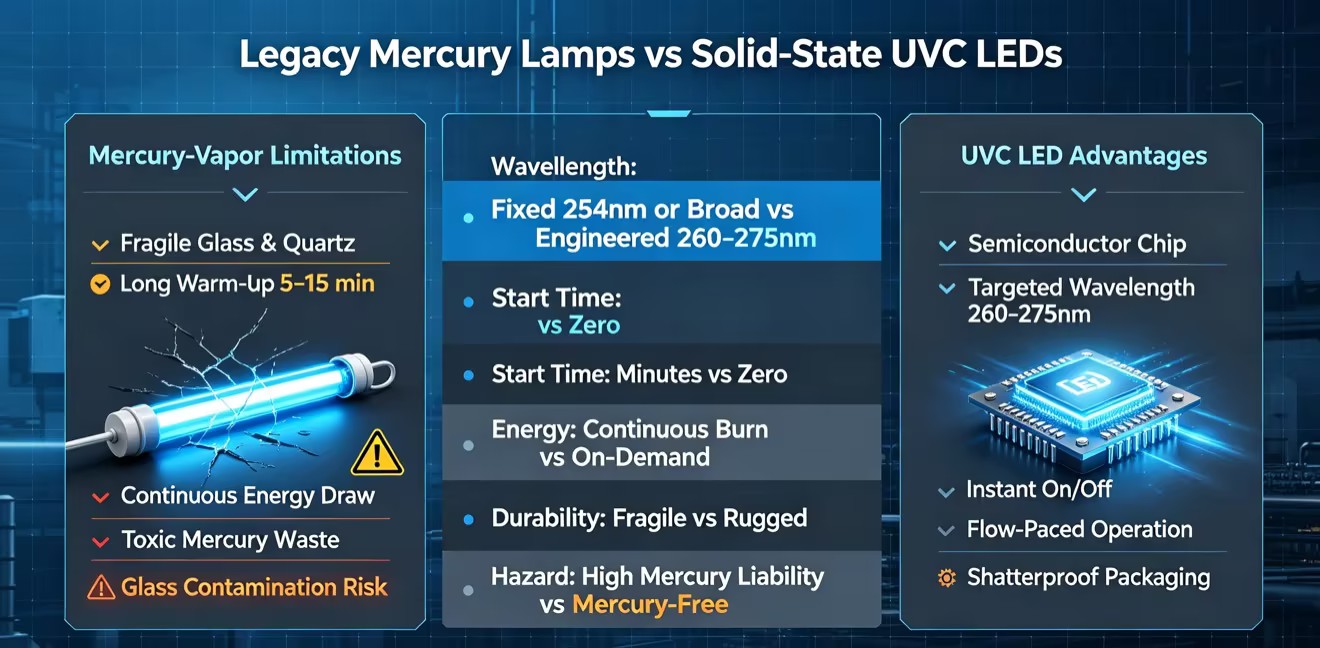

Technical Comparison: Legacy Mercury vs. UVC LED Systems | ||
Technical Parameter | Legacy Mercury-Vapor Lamps | Solid-State UVC LEDs |
|---|---|---|
Wavelength Output | Fixed (254nm or broad spectrum) | Engineered & Selectable (260nm - 275nm) |
Operational State | Continuous burn required | Instant on/off (Flow-paced) |
Warm-up Time | 5 to 15 minutes | Zero (Instantaneous peak output) |
Heat Transfer | Projects heat into fluid (causes scaling) | Back-end heat (requires heat sinks) |
Physical Durability | Extremely fragile (glass/quartz) | Shatterproof (solid-state packaging) |
Environmental Hazard | High (toxic mercury, complex disposal) | Zero (mercury-free, standard electronics) |
One of the most significant risks during implementation is deploying an under-sized reactor that fails to deliver the required log reduction. Because UVC LEDs emit light differently than long cylindrical lamps, legacy sizing calculations do not apply. If water channels through areas of low UV intensity within the reactor, live pathogens will pass through the system. This risk is amplified in fluids with low UV Transmittance or high flow velocities. You cannot rely on guesswork when sizing these systems.
To mitigate this risk, mandate advanced Computational Fluid Dynamics (CFD) modeling from your vendor. CFD software simulates the exact hydraulic flow paths and maps the photon distribution across the entire reactor volume. This ensures every particle receives the minimum lethal dose. Furthermore, request pilot-scale testing data. Do not rely solely on mathematical models. Demand empirical evidence that the specific reactor geometry achieves the required log reductions under real-world fluid conditions.
Poor thermal management can reduce UVC LED output and shorten system life. If heat from the semiconductor junction is not removed effectively, the LED may continue operating while delivering less UV output than expected. To reduce this risk, UVC LED systems should use effective heat sinks, thermal interface materials, and suitable cooling methods. Third-party Accelerated Life Testing (ALT) data can also help evaluate long-term LED performance and confirm that the thermal design maintains stable UV output over time.
The rapid growth of solid-state disinfection has attracted numerous inexperienced manufacturers to the market. Many vendors make exaggerated claims based on theoretical in-house data or single-LED performance metrics that do not scale to full reactor arrays. Relying on unverified claims exposes facilities to severe compliance and safety risks. If a system fails to perform as advertised, the facility bears the ultimate responsibility for any resulting contamination. You must vet your suppliers rigorously.
Partner exclusively with manufacturers that provide independent, third-party validation. Look for certifications from recognized regulatory bodies, such as the USEPA Ultraviolet Disinfection Guidance Manual (UVDGM) protocols or NSF/ANSI 55 Class A standards. Third-party validation ensures that the system's performance claims have been rigorously tested by unbiased experts using standardized biological surrogates. This validation provides a critical layer of liability protection and guarantees operational performance.
Initiate a site-specific UV Transmittance (UVT) analysis to establish accurate baseline water quality metrics for system sizing.
Audit current maintenance workflows on legacy mercury systems to identify specific operational bottlenecks and hazardous material handling liabilities.
Request advanced Computational Fluid Dynamics (CFD) models and pilot-scale testing data from shortlisted UVC LED providers to validate their reactor designs.
Map your facility's compliance deadlines against local and global environmental mandates regarding hazardous waste phase-outs.
A: Yes, when properly sized. UVC LEDs achieve equivalent or superior log reductions by emitting targeted wavelengths that align precisely with the peak absorption of pathogen DNA and RNA. This targeted approach results in higher overall disinfection efficiency compared to broad-spectrum legacy lamps.
A: Yes. While recycling programs exist, the inherent risk of accidental breakage during operation, maintenance, or transport remains high. Solid-state systems eliminate this liability entirely, bypassing the complex hazardous material protocols and specialized handling requirements associated with traditional lamps.
A: High-quality UVC LEDs typically offer a lifespan of 10,000 to 15,000 hours of active use. Because they can be turned off instantly during no-flow periods, this translates to significantly longer calendar lifespans compared to continuous-burn mercury lamps.
A: The Minamata Convention aims to phase out the mining and use of mercury globally. While certain specialized UV lamps currently have temporary exemptions, the regulatory trajectory is driving industries to adopt solid-state alternatives to avoid future compliance penalties.
A: Direct bulb-for-bulb retrofitting is rarely viable due to differences in power delivery, thermal management, and reactor geometry. Upgrading generally requires replacing the entire reactor chamber with a system engineered specifically for LED arrays.
A: Maintenance is significantly reduced. It primarily involves periodic cleaning of the optical windows, which foul less due to lower interface temperatures, and routine verification of UV sensor calibration. You eliminate the annual handling of fragile, toxic mercury lamps entirely.
A: UVC LEDs excel in variable flow conditions. Their instant on/off capability allows the system to pulse or power down entirely when flow stops. They instantly resume full disinfection power without the warm-up period required by mercury lamps.
