In industries with extremely stringent water quality requirements—such as semiconductors, optoelectronics, biopharmaceuticals, and advanced laboratories—the total organic carbon (TOC) level in ultrapure water (UPW) is a critical indicator of water quality stability. In recent years, with the maturation of deep ultraviolet light-emitting diode (UVC LED) technology, UVC LEDs have been increasingly applied in UPW systems for both microbial control and TOC reduction. Compared to traditional low-pressure mercury lamps, UVC LEDs offer advantages such as being mercury-free, compact, and capable of instant on/off operation. Their integration not only enhances precision in water quality control but also enables more modular, compact, and environmentally friendly system designs.
1. Technical Challenges of TOC in Ultrapure Water Systems
Ultrapure water refers to water from which nearly all ions, organic compounds, particles, and microorganisms have been removed. It is widely used in semiconductor manufacturing, optoelectronics, precision healthcare, and pharmaceutical industries. In these applications, TOC (Total Organic Carbon) is a key parameter used to quantify organic contaminants, typically measured in ppb (μg/L). In critical processes such as wafer fabrication, TOC levels are often required to be below 1 ppb; exceeding this threshold can directly impact product yield and equipment lifespan.

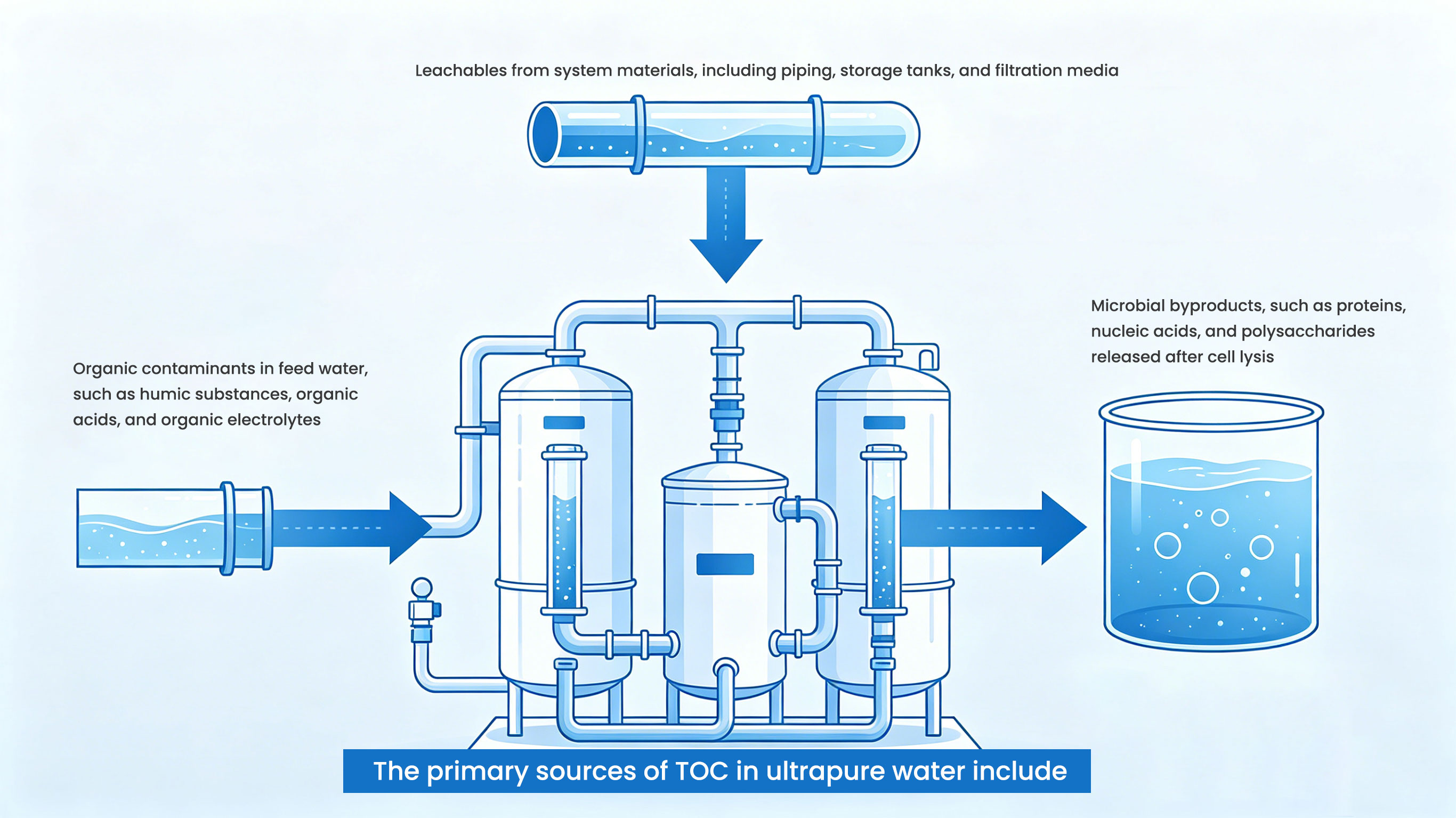

The primary sources of TOC in ultrapure water include:
Organic contaminants in feed water, such as humic substances, organic acids, and organic electrolytes
Leachables from system materials, including piping, storage tanks, and filtration media
Microbial byproducts, such as proteins, nucleic acids, and polysaccharides released after cell lysis
Elevated TOC can lead to reduced analytical sensitivity, increased detection limits, baseline drift, contamination of active surfaces, chemical interference, and fouling in separation or purification media.
Traditional TOC reduction methods in UPW systems rely on physical and chemical treatment units such as reverse osmosis (RO), ion exchange/EDI, and ultrafiltration. However, these processes have limited effectiveness in removing small or trace organic molecules and cannot fully control microbial byproducts. Therefore, additional TOC control technologies are required to ensure consistent and reliable water quality.
2. Mechanisms of TOC Reduction by UVC LED
UVC LEDs reduce TOC in ultrapure water through three primary mechanisms:
Direct photolysis UVC photons can directly break chemical bonds in organic molecules (e.g., C–C, C–O, C–H), decomposing large organic compounds into smaller molecules such as organic acids, aldehydes, and ketones, and eventually mineralizing them into carbon dioxide (CO₂). This mechanism is particularly effective for UV-absorbing compounds such as aromatic organics but requires sufficient irradiation dose and residence time.
Indirect photo-oxidation UVC irradiation can activate dissolved oxygen or trace oxidants (e.g., H₂O₂) in water to generate highly reactive species such as hydroxyl radicals (·OH). These radicals can non-selectively oxidize a wide range of organic compounds. This process is similar to advanced oxidation processes (AOPs) and offers stronger oxidation capacity and broader applicability, making it a key pathway for TOC reduction.
Control of microbial byproducts UVC effectively inactivates microorganisms by damaging their DNA, thereby reducing the generation of organic byproducts from microbial metabolism and cell lysis. Studies show that achieving a microbial inactivation rate above 99.9% can significantly decrease the release of intracellular organic matter. In practical systems, this mechanism can contribute to a TOC reduction of approximately 5%–8%, although the exact value depends on microbial load and water conditions.
3. Optimal Placement of UVC LED in UPW Systems

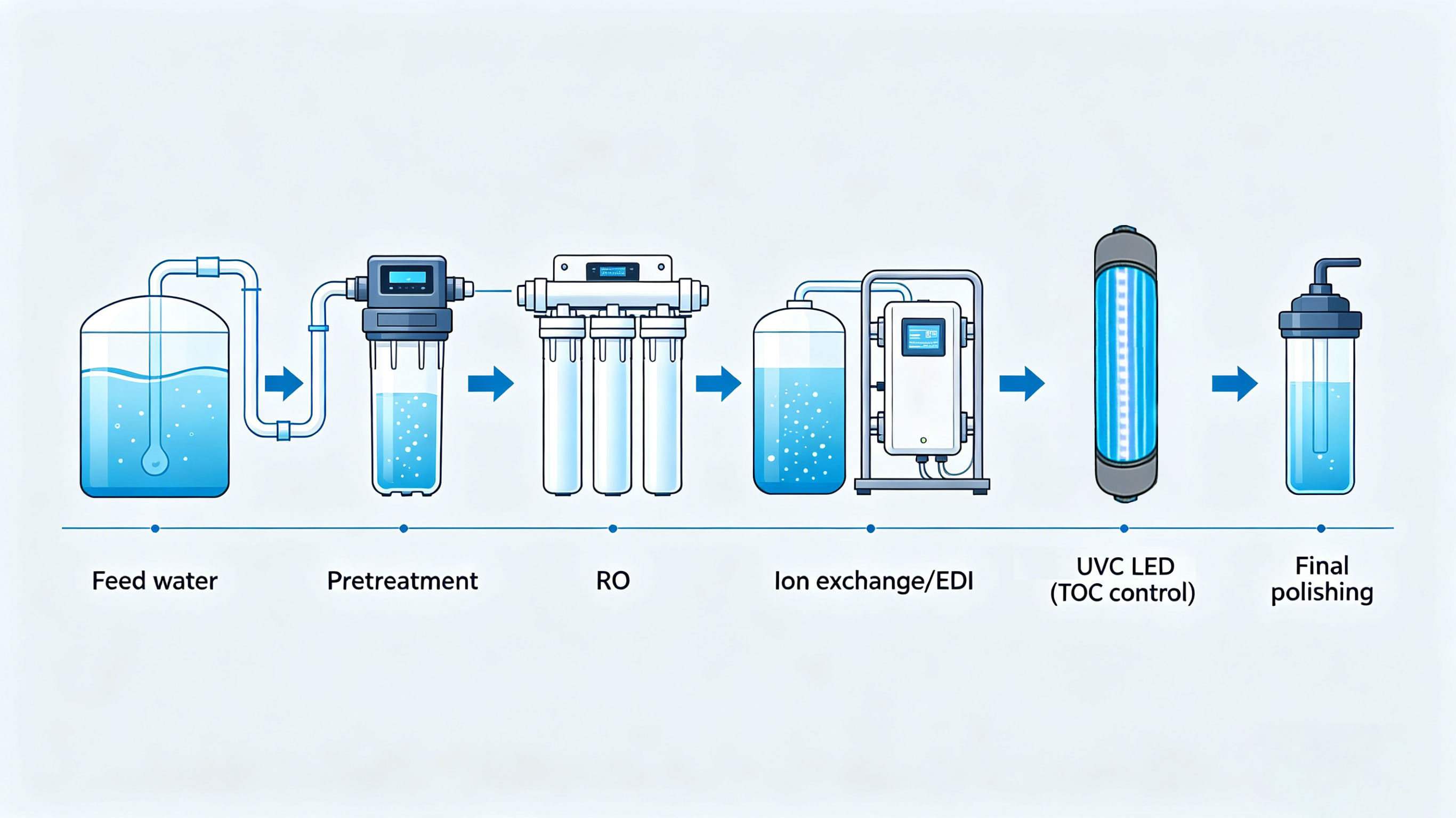

A typical ultrapure water system configuration is as follows:
Feed water → Pretreatment → RO → Ion exchange/EDI → UVC LED (TOC control) → Final polishing (e.g., ultrafiltration, point-of-use filtration)
Through multi-stage treatment, TOC can be reduced from hundreds of ppb to below 1 ppb. UVC LED units are typically installed downstream of RO/EDI and upstream of final polishing modules. This positioning ensures that most ions and particulates have already been removed while minimizing the risk of downstream contamination.
4. Practical Applications and Industry Outlook
UVC LEDs are already being piloted in semiconductor and optoelectronic industries, with the goal of replacing traditional 185 nm mercury lamps to achieve more environmentally friendly, stable, and flexible TOC control solutions. In wafer manufacturing, UVC LED integration can effectively reduce yield risks caused by TOC fluctuations and minimize equipment downtime due to microbial contamination.
In laboratory ultrapure water systems, UVC LED modules can be integrated into recirculation loops or near point-of-use outlets to suppress end-point contamination and improve water quality stability.
Overall, as UVC LED efficiency and lifetime continue to improve, its application in ultrapure water systems is expected to expand significantly, positioning it as a key technology for next-generation TOC control and disinfection.
