Introduction
Are you wondering which UV technology is right for you? UV LED and UVC LED are often confused, but they serve different purposes. In this article, we will explore the differences, helping you choose the best option for your needs. You’ll discover when to use UVC LED for disinfection and when UV LED shines in curing and other applications.
What Is the Difference Between UV LED and UV-C LED?
What does UV LED mean?
UV LED refers to a broad family of light sources that emit ultraviolet radiation across different wavelength ranges. It is not a single technology type, but a category that includes multiple bands such as UVA, UVB, and UVC. When people say “UV LED,” they often mean any LED that produces ultraviolet light, but the actual function depends heavily on the wavelength it operates in. This is why understanding the range is more important than just the name.
Here are typical application directions for UV LED technologies:
Sensing and detection UV LED can excite specific materials. It helps identify chemicals, minerals, or contaminants. It is widely used in laboratory analysis and industrial inspection systems. The wavelength selection determines how accurate and sensitive the detection will be.
UV curing and printing UV LED is widely used in curing inks, coatings, and adhesives. It enables fast polymerization without high heat. This makes it suitable for electronics, automotive parts, and packaging industries where precision matters.
Surface inspection and quality control UV light can reveal defects that are invisible under normal lighting. It is used for crack detection, coating inspection, and contamination control in manufacturing environments.
To better understand the UV LED spectrum, the table below shows how different UV bands are typically classified and used:
| UV Band | Wavelength Range (nm) | Common Applications |
| UVA | 315–400 nm | Curing, inspection, printing |
| UVB | 280–315 nm | Medical, biological research |
| UVC | 200–280 nm | Disinfection, sterilization |
What is UV-C LED and how is it different?
A uvc led is a specific type of UV LED that operates within the UVC wavelength range, typically between 200 and 280 nanometers. Unlike general UV LEDs, it is designed for one primary purpose: breaking down microorganisms at the DNA and RNA level. This makes it highly effective for sterilization and disinfection tasks.
What makes uvc led different is not just the wavelength, but how that wavelength interacts with biological structures. UVC light carries enough energy to disrupt microbial cells, preventing them from reproducing. Because of this, it has become a key technology in water treatment, air purification, and surface sanitation systems.
To clarify the distinction, here is a side-by-side comparison:
| Feature | UV LED (General) | UV-C LED (Specific) |
| Definition | Broad category of UV light sources | Subtype of UV LED |
| Wavelength | UVA, UVB, UVC | Only UVC (200–280 nm) |
| Main Function | Multiple applications | Disinfection and sterilization |
| Use Cases | Curing, sensing, inspection | Water, air, surface sanitation |
| Energy Focus | Depends on band | High-energy germicidal output |
Is UVC LED Better for Disinfection, Sterilization, and Water Treatment?
Why uvc led is preferred for germicidal applications
When we talk about disinfection, wavelength matters more than anything else. A uvc led operates in the 200–280 nm range, which is known for strong germicidal performance. It works by penetrating microbial cells and disrupting their DNA and RNA structures. Once this damage happens, microorganisms lose their ability to reproduce. That is why they are effectively inactivated instead of just being weakened.
The most effective germicidal range is often cited around 260–265 nm. At this level, nucleic acids absorb UV energy very efficiently. It leads to faster and more reliable inactivation. Many modern systems are designed close to this peak range to improve performance while reducing energy waste.
To better understand how uvc led works in sterilization, here is a simplified breakdown:
DNA/RNA disruption process The light energy breaks molecular bonds inside microbial cells. It stops replication. It prevents colony growth over time. This makes it highly suitable for bacteria, viruses, and some protozoa.
Non-chemical disinfection It does not introduce chemicals into water or air. This helps maintain original quality. No taste change. No chemical residue. It is especially useful in drinking water systems.
Controlled wavelength output Unlike traditional UV lamps, uvc led produces a narrow wavelength band. It improves targeting efficiency. It reduces unnecessary energy loss.
Below is a comparison of germicidal effectiveness across different UV ranges:
| UV Type | Wavelength (nm) | Germicidal Effectiveness |
| UVA | 315–400 | Low, indirect effect |
| UVB | 280–315 | Moderate, slower action |
| UVC | 200–280 | High, direct DNA damage |
Where uvc led works best in real applications
In real-world use, uvc led is not a one-size-fits-all solution. It performs best in specific environments where its strengths can be fully used. These environments usually require compact size, fast response, and controlled exposure.
We often see strong performance in the following scenarios:

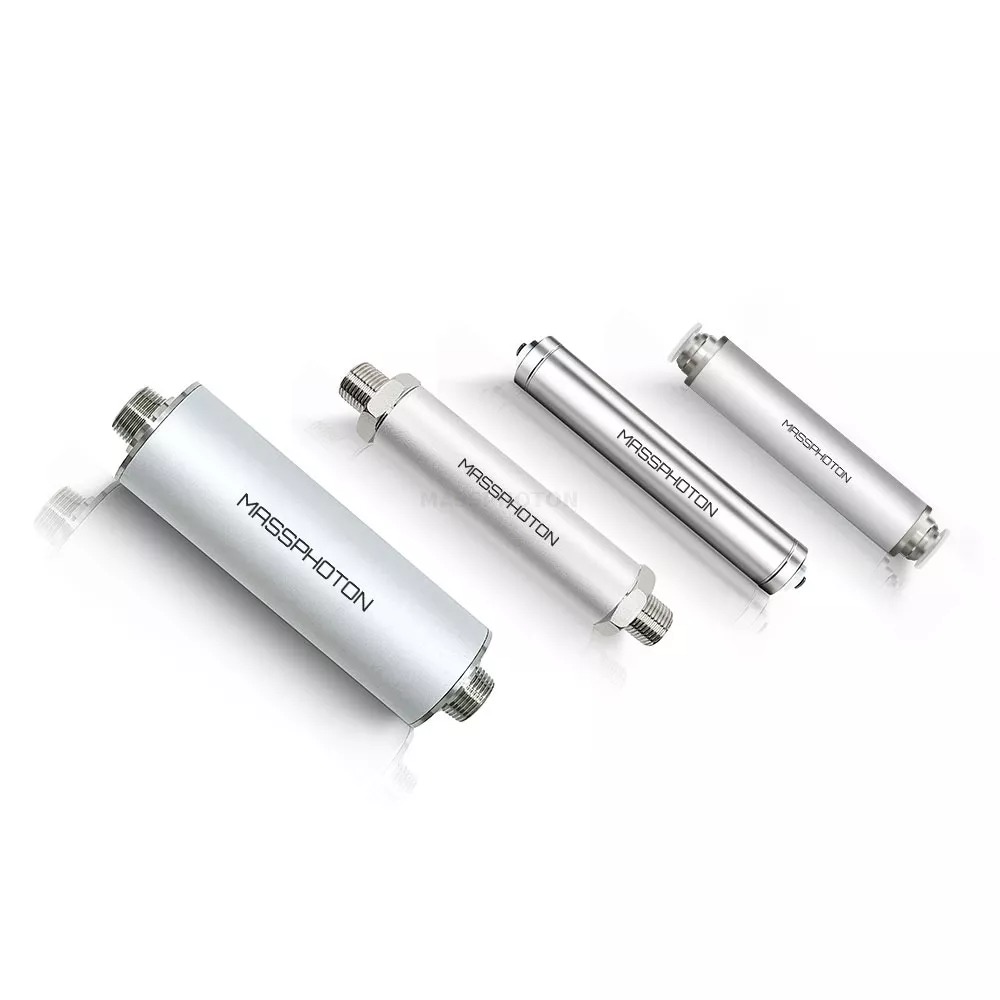

Small water systems It works well in drinking water units. It fits inside compact pipelines. It delivers targeted disinfection at low flow rates. It is commonly used in household systems and portable purification devices.
Point-of-use devices These include water dispensers, faucets, and portable bottles. They benefit from instant on/off behavior. No warm-up time is needed. It helps save energy in intermittent usage.
Air disinfection systems It is used in HVAC units and air purifiers. It helps reduce airborne pathogens. It works best in enclosed or controlled airflow environments.
Surface disinfection It is applied in medical tools, packaging lines, and public sanitation devices. It provides fast sterilization cycles. It supports automation in industrial settings.
Intermittent-use systems Unlike traditional lamps, uvc led can switch on and off frequently. It does not degrade quickly from cycling. This makes it ideal for systems that do not run continuously.
To visualize application suitability, here is a quick reference table:
| Application Type | Suitability of uvc led | Key Advantage |
| Small water purification | Excellent | Compact and efficient |
| Portable devices | Excellent | Instant operation |
| Air purification | Good | Flexible integration |
| Surface sterilization | Excellent | Fast response |
| Large municipal systems | Limited | Output constraints |
When uvc led may not be the best choice
Even though uvc led has clear advantages, it is not always the best option. In some cases, traditional UV technologies still perform better. This usually depends on scale, flow rate, and total energy output requirements.
Here are situations where uvc led may not be ideal:
High-flow continuous systems Large water treatment plants require high UV output. They run 24/7. In these systems, traditional UV lamps can deliver stronger continuous intensity. It helps maintain stable disinfection at scale.
Large-scale installations Industrial or municipal systems often prioritize cost per performance. In these cases, uvc led may require more units to match output. It increases system complexity and cost.
Energy efficiency at scale While uvc led is improving, its wall-plug efficiency is still lower than some conventional UV lamps in large setups. This affects long-term operational cost.
Thermal management challenges High-power LED arrays generate heat. It requires proper cooling systems. Without good design, performance may drop over time.
Does uvc led replace conventional UV lamps completely?
The short answer is no, not yet. However, uvc led is rapidly gaining ground in many applications. It brings several advantages that are hard to ignore, especially in modern product design.
Let’s compare key characteristics between uvc led and conventional UV lamps:
| Feature | UVC LED | Conventional UV Lamp |
| Start-up time | Instant | Requires warm-up |
| Switching cycles | Unlimited | Limited |
| Mercury content | None | Contains mercury |
| Size | Compact | Bulky |
| Integration | Flexible | Fixed structure |
| Lifespan behavior | Stable with cycling | Degrades faster with switching |
Is UV LED Better Than UV-C LED for Curing and Industrial Use?
Why general UV LED is often used for curing
In curing applications, people usually talk about UV LED in a broader sense, not just uvc led. This is because most industrial curing processes rely heavily on UVA wavelengths, which offer better penetration and more controlled polymerization. When we use UV light to cure materials, we are not trying to kill microorganisms. We are trying to trigger chemical reactions inside coatings, inks, or adhesives.
Typical industrial curing applications include:
Printing inks and coatings UV LED curing allows instant drying. It improves production speed. It reduces smudging and improves print quality. It is widely used in packaging and label printing.
Adhesives and bonding processes UV LED enables fast curing of adhesives. It ensures strong bonding. It is often used in electronics assembly and medical device manufacturing.
Protective coatings It helps form durable layers on surfaces. It improves chemical resistance. It enhances product lifespan in harsh environments.
To understand why UVA is dominant in curing, here is a comparison of UV bands in industrial use:
| UV Band | Penetration Depth | Typical Role in Curing |
| UVA | Deep (mm level) | Bulk curing, internal polymerization |
| UVB | Medium | Limited industrial use |
| UVC | Very shallow | Surface finishing, top-layer curing |
What uvc led does well in curing applications
Even though uvc led is mainly known for disinfection, it also plays a unique role in curing processes. Its strength is not depth, but precision at the surface level. It focuses energy on the outermost layer, which leads to improved surface quality and performance.
In industrial finishing, surface properties are critical. A coating may look fine internally but fail on the surface. This is where uvc led becomes valuable.
Here are key advantages of uvc led in curing:
Surface curing efficiency It rapidly hardens the top layer. It creates a stable outer shell. It prevents tackiness or incomplete curing on the surface.
Gloss and finish improvement It enhances visual appearance. It produces smoother and shinier surfaces. It is useful for high-end coatings and decorative finishes.
Scratch and abrasion resistance It strengthens the outermost layer. It improves durability under mechanical stress. It is widely used in automotive and consumer products.
Fine detail curing It works well in micro-scale applications. It ensures precision in thin coatings and detailed structures.
To visualize its role, think of uvc led as a “finishing tool” in the curing process. It does not replace deeper curing sources. It enhances the final surface performance.
Why UVA and uvc led are often used together
In advanced curing systems, using a single wavelength is often not enough. Different layers of a material require different energy levels. This is why many industrial solutions combine UVA and uvc led to achieve optimal results.
The idea is simple. UVA handles depth. UVC handles the surface. Together, they create a balanced curing process.
Here is how they complement each other:
UVA role It penetrates deeper into the material. It activates photoinitiators inside the bulk layer. It ensures full polymerization throughout the thickness.
UVC LED role It focuses on the outermost microns. It improves hardness and smoothness. It reduces oxygen inhibition on the surface.
Combined effect It delivers both structural strength and surface quality. It improves product performance. It reduces defects in coatings and adhesives.
Below is a comparison of their combined function:
| Function Layer | UVA LED Contribution | UVC LED Contribution |
| Deep layer | Strong penetration, full curing | Minimal effect |
| Middle layer | Consistent polymerization | Limited support |
| Surface layer | Moderate curing | High-intensity finishing |
In many modern production lines, this combination approach is becoming standard. It allows manufacturers to fine-tune curing performance based on material type and process requirements.
For curing, is UV LED or uvc led better?
When we ask which is better, the answer depends on the specific curing requirement. There is no single winner. Instead, the decision should be based on material properties, thickness, and desired finish.
Several factors influence the choice:
Material composition Different materials respond differently to UV wavelengths. Some require deeper penetration. Others need strong surface activation.
Coating thickness Thick coatings require UVA for internal curing. Thin coatings may benefit more from uvc led for surface precision.
Photoinitiator design The chemical system determines which wavelength is most effective. Matching wavelength to photoinitiator is critical for performance.
Surface requirements If the goal is high gloss, hardness, or scratch resistance, uvc led provides clear advantages.
From a practical standpoint:
Use UV LED (especially UVA) for general curing tasks and bulk material processing
Use uvc led for surface enhancement and finishing
Combine both when high performance is required across all layers
How Do You Choose the Right UVC LED for Your Application?
Start with the real question: what do you need the UV source to do?
Before diving into the specifics of UVC LED selection, it's important to ask the most fundamental question: What exactly do you need the UV source to do?
Unlike traditional lighting solutions, UVC LED has specialized applications that are determined by the wavelength and energy output. For instance, the UVC LED you choose will depend heavily on whether you're looking to disinfect, sterilize, or even cure a material.
Here are some essential use cases to consider when choosing the right UVC LED:
Disinfect water UVC LED is highly effective at killing bacteria, viruses, and other pathogens in water. It’s commonly used in point-of-use filtration systems like water purifiers for homes, businesses, and even portable water treatment devices.
Sanitize air Air purifiers and HVAC systems that use UVC LED technology can disinfect the air, removing harmful microorganisms that can cause respiratory issues or spread diseases.
Treat surfaces UVC LED is often used in healthcare and food industries for disinfecting surfaces. It's a key player in ensuring that medical instruments and food preparation areas remain free from contaminants.
Cure coatings For industrial applications like automotive, electronics, and packaging, UVC LED is used for curing coatings, adhesives, and inks. It provides a rapid and energy-efficient solution for manufacturing.
Detect materials UVC LED technology is also used in material detection systems. Whether it’s detecting chemical traces or inspecting materials under UV light, UVC LED provides high precision and reliability.
Compare the key buying factors for uvc led
Once you've defined your application, the next step is to compare the key buying factors that will determine the effectiveness of your UVC LED solution. These factors are critical to ensuring that the selected technology aligns with your needs.
Wavelength The effectiveness of UVC LED in disinfection is largely determined by the wavelength. As mentioned earlier, the optimal germicidal range is around 260-265 nm, but variations outside this range can still be effective depending on the application.
Optical Output Optical output refers to the intensity of UV light emitted by the LED. Higher output means more intense UV radiation, which can lead to faster disinfection or curing times. You’ll need to balance intensity with the size of the area or material you're working with.
On/Off Cycling Unlike traditional UV lamps, UVC LED lights are capable of infinite on/off cycles. This means they can be used in systems where intermittent operation is needed without degrading the lamp’s performance. This feature is perfect for air purifiers or point-of-use water treatment devices that cycle on and off frequently.
Efficiency UVC LED lights are generally more energy-efficient compared to traditional UV lamps, especially when used in smaller, localized systems. However, for larger-scale applications, consider whether the UVC LED offers adequate energy output without overheating or wasting energy.
Heat Management UVC LED systems produce heat that needs to be managed properly to ensure longevity and performance. Look for solutions with efficient thermal dissipation to avoid any loss in output or premature failure of the system.
Lifespan A long lifespan is one of the key advantages of UVC LED over traditional UV lamps. Most UVC LEDs can last up to 20,000 hours or more. However, ensure that the product’s design includes proper cooling and power management to maintain its longevity.
Size and Integration Needs Depending on your application, you may need a compact, flexible solution that can be easily integrated into existing systems. UVC LED units are smaller and more adaptable than traditional UV lamps, which makes them ideal for custom-designed systems, such as portable devices, small filtration units, or air purifiers.
Safety and Regulatory Concerns Because UVC LED emits ultraviolet radiation, it’s important to ensure that it meets safety standards. Look for products that comply with industry safety regulations, and consider the system’s ability to safely contain the light to prevent exposure to humans and animals.
Conclusion
When deciding between UV LED and UVC LED, the choice depends on the application. UV LED is better for general uses like curing, sensing, and inspection, while UVC LED is specialized for disinfection and sterilization, particularly in water and air treatment. MASSPHOTON provides high-quality UVC LED solutions for these specific applications, offering long-lasting, mercury-free, and energy-efficient products. Their technology ensures precise disinfection with reliable performance.
FAQ
Q: What is the difference between UV LED and UVC LED?
A: UV LED covers a broad spectrum including UVA, UVB, and UVC, while UVC LED is specifically designed for disinfection, emitting light in the 200–280 nm range for effective microbial DNA damage.
Q: What are the advantages of UVC LED in disinfection?
A: UVC LED offers high efficiency in sterilizing water, air, and surfaces, as it can damage pathogens' DNA and RNA, ensuring effective pathogen inactivation without chemicals.
Q: How does UVC LED compare to traditional UV lamps?
A: UVC LED has no mercury, provides instant on/off capability, is energy-efficient, and has a longer lifespan, making it ideal for small-scale or point-of-use disinfection, whereas traditional lamps may still be more effective for large-scale systems.
Q: Why should I choose UVC LED for water treatment?
A: UVC LED is effective in disinfection with no chemicals involved, and it’s compact, energy-efficient, and ideal for point-of-use water purification systems, ensuring clean water without affecting taste.
Q: Can UVC LED be used for curing applications?
A: UVC LED can be used for surface curing applications, especially in industries like automotive or packaging, to provide durable finishes. However, for deep curing, UV LED in the UVA range is more suitable.
