Ultraviolet disinfection technology has been widely recognized since the early 20th century, with low-pressure mercury lamps dominating the market for decades. However, inherent limitations—such as bulky size, high operating voltage, mercury contamination, and warm-up delays—have significantly restricted their flexibility across diverse applications.
In recent years, deep ultraviolet light-emitting diodes (UV-C LEDs), based on AlGaN (aluminum gallium nitride), have advanced rapidly. With key advantages including mercury-free operation, compact size, precise wavelength tunability, millisecond-level start-up, and high integration capability, UV-C LEDs are emerging as the most promising alternative to conventional mercury lamps.

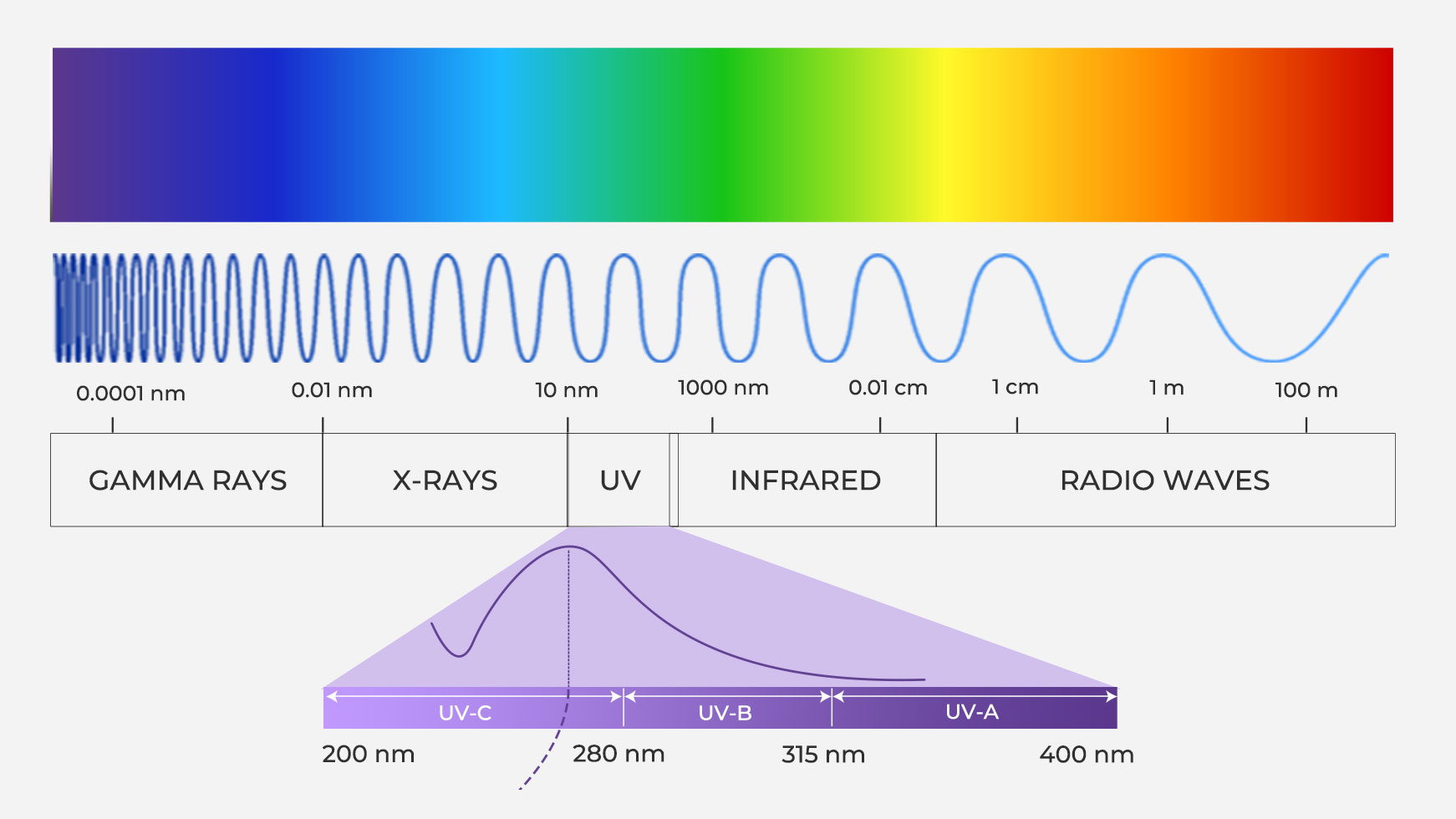

A critical yet often overlooked point is that UV-C LEDs are not single-wavelength sources. Thanks to the continuously tunable bandgap of AlGaN materials , their emission wavelength can be precisely controlled across the 200–280 nm deep UV range. Variations in photon energy across different wavelengths lead to significant differences in interactions with microbial target molecules (DNA/RNA and proteins), resulting in distinct disinfection mechanisms, efficiencies, biosafety profiles, and application suitability.
As the technology matures, wavelength selection based on specific application scenarios has become a key factor in advancing UV-C LED systems from “functional” to “optimized.”
1. Technical Landscape of Core Wavelengths
Although the operating range of UV-C LEDs is limited to 200–280 nm, performance differences across wavelength bands are substantial in terms of disinfection mechanisms, efficiency, and safety.
(1) 220–265 nm (Far-UVC): A Promising Candidate for Safe Disinfection Far-UVC, represented by 222 nm, features high photon energy but extremely shallow penetration depth (<200 μm). It cannot penetrate the human skin’s stratum corneum or the eye’s tear layer, acting only on microorganisms lacking protective cellular structures . It has demonstrated effective inactivation of multidrug-resistant bacteria (XDR), Mycobacterium tuberculosis, and coronaviruses, making it a key wavelength for enabling safe “human–device coexistence” disinfection .
(2) 265–270 nm: Precision Targeting of Nucleic Acid Absorption Peaks The 260–265 nm range corresponds to the peak UV absorption of microbial DNA and RNA. UV photons in this band are efficiently absorbed by nucleic acid bases, inducing specific photoproducts such as cyclobutane pyrimidine dimers (CPDs), which directly disrupt replication and transcription processes, ultimately leading to pathogen inactivation .
This mechanism is characterized by irreversible nucleic acid damage, significantly suppressing photoreactivation and dark repair processes, resulting in stable and long-lasting disinfection performance.
(3) 270–280 nm: The Balance Between Efficiency and Practicality The 270–280 nm range can simultaneously affect microbial nucleic acids and proteins, enabling dual inactivation mechanisms involving DNA damage and protein denaturation .
High-power UVC LEDs in this band (e.g., from Marktech) can achieve wall-plug efficiencies of up to 7% and L70 lifetimes exceeding 15,000 hours. With single- or multi-chip configurations (2–4 chips), they deliver high irradiance in compact designs. This range represents the most commercially mature option, offering the best balance between efficiency, lifetime (10,000–15,000 hours), and cost .
(4) Multi-Wavelength Synergy: A “Combination Strategy” for Disinfection The core concept of multi-wavelength disinfection is to leverage complementary mechanisms across different UV-C bands to achieve broad-spectrum and high-efficiency microbial inactivation.
222 nm (Far-UVC) effectively disrupts viral spike proteins and lipid membranes while suppressing bacterial DNA repair pathways
280 nm provides dual action on nucleic acids and proteins, balancing efficiency, penetration, and device lifetime
When optimally combined, these wavelengths generate synergistic effects—enhancing disinfection efficiency, reducing required UV dose, extending LED lifetime, and lowering overall system energy consumption.
The true value of UV-C LED technology lies in practical engineering applications. The characteristics of different wavelength bands determine their suitability for specific use cases.
270–280 nm Advantages: Highest maturity, optimal energy efficiency, long lifetime Limitations: Slightly lower photon efficiency, not suitable for occupied environments Best applications: Municipal/industrial water treatment, HVAC systems, appliances, air disinfection Typical dose: 40–60 mJ/cm² (flowing water)
250–260 nm Advantages: Broad-spectrum effectiveness, moderate penetration Limitations: Moderate maturity and cost Best applications: Medical sterilization, food processing, water reuse Typical dose: 30–50 mJ/cm²
220–240 nm Advantages: Safe for human exposure, non-damaging Limitations: Extremely low efficiency for solid-state sources, short lifetime of excimer lamps Best applications: Public spaces, hospitals, occupied environments Typical dose: 1–5 mW/cm² (continuous irradiation)
3. Challenges and Future Outlook
Despite rapid advancements, UV-C LED technology still faces several critical challenges:
A significant efficiency gap compared to visible LEDs (over 50%), limiting large-scale adoption
Material and process challenges, including defect control in high-aluminum AlGaN, improved p-type doping, and enhanced light extraction
Lack of standardized dose models for multi-wavelength disinfection, including safety thresholds and mechanisms
Insufficient system-level integration for scalable deployment in water and air disinfection applications
Looking ahead to 2026–2030, the industry is expected to focus on key technological breakthroughs to address these bottlenecks. UV-C LEDs will gradually replace excimer lamps, accelerate the deployment of safe “human–device coexistence” disinfection systems, and evolve from “functional” to “efficient” and “durable,” ultimately achieving full replacement of traditional mercury-based UV systems.
References:
1.Onushkin G, R.J. and E.A. Piva F, Efficiency-and lifetime-limiting effects of commercially available UVC LEDs: a review. Journal of Physics: Photonics, 2025. 3(7): p. 032002.
2.Welch, D.B., et al., Far-UVC light: A new tool to control the spread of airborne-mediated microbial diseases. Scientific Reports, 2018. 1(8): p. 2752.
3.Buonanno M, W.D.S.I., Far-UVC light (222 nm) efficiently and safely inactivates airborne human coronaviruses. Sci Rep, 2020(10).
4.Huang, J.R.Y., et al., Far-UVC light (222 nm) efficiently inactivates clinically significant antibiotic-resistant bacteria on diverse material surfaces. Microbiology Spectrum, 2024. 12(12): p. e04251-23.
5.Sinha, R.P.H.D., UV-induced DNA damage and repair: a review. Photochemical & Photobiological Sciences, 2002. 4(1): p. 225-236.
6.Song K, M.M.T.F., Application of ultraviolet light-emitting diodes (UV-LEDs) for water disinfection: A review. Water Res, 2016(94:341-349).
