UVC LED Water Disinfection System Buying Guide

Facilities, remote operations, and high-end residential systems are migrating away from traditional mercury-vapor UV lamps toward solid-state LED technology. High maintenance overhead, energy inefficiency, and environmental liabilities drive this shift. Decision-makers must achieve verified microbiological safety—specifically, log reduction of pathogens—without introducing chemical byproducts. They also need to reduce energy consumption and eliminate warm-up times. This guide provides a technical evaluation framework for selecting a UVC LED Water Disinfection System. We cover critical sizing metrics, solid-state technology fundamentals, and water quality prerequisites. You will learn how to match UV dose capacity to peak flow rates and implement reliable pre-filtration to ensure consistent pathogen inactivation across various operational environments.

• Instant-On Efficiency: UVC LED systems eliminate the warm-up periods required by traditional mercury lamps, allowing for true on-demand, flow-paced disinfection that drastically reduces energy consumption.

• Sizing is Flow-Dependent: System efficacy is entirely dependent on matching the unit’s UV dose capacity (mJ/cm²) to the peak flow rate (GPM) of the specific application.

• Pre-Filtration is Non-Negotiable: Even the most advanced UVC LED water disinfection system will fail if high turbidity or mineral scaling causes "shadowing" that protects pathogens from UV exposure.

• Off-Grid and DC Compatibility: The solid-state design of LEDs allows for direct integration with low-voltage DC power sources (12V/24V), making them ideal for solar-powered, marine, and remote cabin applications.

The Benefits of Switching to Solid-State UVC LED Water Systems

Legacy water treatment systems rely on outdated components that introduce unnecessary risks and inefficiencies. Moving to solid-state UV technology solves these inherent mechanical and environmental issues. Understanding these operational benefits helps you evaluate modern setups effectively.

Elimination of Mercury Risks

Traditional UV systems use fragile quartz lamps containing mercury vapor. Removing these from the water supply chain provides immediate environmental and safety benefits. It aligns with global regulatory efforts, such as the Minamata Convention, aimed at reducing mercury exposure. A solid-state system eliminates the risk of toxic contamination resulting from accidental lamp breakage during routine maintenance or unexpected pressure spikes.

On-Demand Operation and Thermal Management

LEDs cycle on and off instantly in tandem with water flow. Traditional mercury lamps must run continuously to maintain their germicidal output. This continuous operation leads to heat buildup in stagnant water. It often causes hot water "shots" when a tap is first opened and accelerates mineral scaling on the quartz sleeve. An on-demand system prevents this thermal degradation. It keeps the reactor chamber cool and reduces the frequency of descaling maintenance.

Targeted Wavelength Efficacy

Solid-state Aluminum Gallium Nitride (AlGaN) semiconductor chips drive modern UVC technology. These chips emit light at specific, targeted wavelengths. Low-pressure mercury lamps have a fixed emission at 254nm. LEDs can be engineered to emit at the absolute peak absorption wavelength of pathogen DNA and RNA, typically between 265nm and 275nm. This targeted emission provides a distinct germicidal advantage. It optimizes the inactivation process for highly resistant microorganisms.

Inactivation vs. Physical Filtration

UVC light does not filter out physical particles. It penetrates the cell walls of microorganisms and damages their nucleic acids. This photochemical damage renders the pathogens unable to replicate and cause infection. They become microbially dead. It is a purification process rather than a physical separation process. You must combine it with mechanical filtration for complete water treatment.

Chemical-Free Assurance

Implementing a UV system provides pathogen destruction without altering the water's taste or odor. It avoids the creation of harmful disinfection byproducts, such as trihalomethanes, commonly associated with chlorine treatment. This ensures a safe, clean water supply without chemical additives. It protects downstream plumbing components from chemical corrosion.

Key Sizing Metrics: Calculating Flow Rate and UV Dose

Selecting the right equipment requires precise calculations based on your specific operational parameters. Oversights in sizing or power integration compromise microbiological safety. You must evaluate flow dynamics and electrical requirements carefully.

Flow Rate (GPM) and Contact Time

The efficacy of any UV system relies on the critical relationship between the peak flow rate and the reactor chamber design. If a system is undersized for the peak flow, the water moves through the chamber too quickly. This results in inadequate contact time and insufficient UV dose delivery. Disinfection fails.

To calculate true peak flow, you must assess the maximum possible demand. Follow these steps to determine your flow rate:

1. Identify the maximum output capacity of your well pump or municipal supply line.

2. Count all water fixtures in the facility or residence.

3. Assign a standard GPM rating to each fixture (e.g., showers at 2.5 GPM, faucets at 1.5 GPM).

4. Calculate the total GPM if all fixtures run simultaneously.

5. Size the UV reactor to handle this absolute maximum peak flow, not the average daily usage.

UV Dose Requirements and Pathogen Inactivation Targets

UV dose is the product of UV intensity and contact time. We measure it in millijoules per square centimeter (mJ/cm²). Different pathogens require different dose levels for effective log reduction. You must match the system's output to your specific microbiological threats.

Match manufacturer dose claims against your specific regulatory or safety requirements. Standards like NSF/ANSI 55 Class A require a minimum dose of 40 mJ/cm² for verified protection against a broad spectrum of microorganisms. Always verify third-party validation data.

Electrical Integration and Power Demands

Power integration differentiates solid-state systems from legacy equipment. UVC LEDs operate natively on low-voltage DC power. They run directly off batteries or solar systems without an inefficient DC-to-AC inverter. This makes them highly versatile for remote installations.

The solid-state driver acts as the control center. It replaces the ballast found in legacy systems. It regulates current, manages duty cycles, and reports system health. Microelectronics are sensitive to voltage fluctuations. These fluctuations are common on rural well grids or remote sites. Robust surge protection is an absolute necessity to safeguard the equipment. Install a dedicated surge protector at the power receptacle.

Where to Deploy UVC LED Water Treatment Systems

The compact nature of LED technology allows for versatile deployment across various scales and environments. You can integrate these systems into tight spaces where traditional lamps cannot fit.

Point-of-Use (POU) Systems and OEM Integration

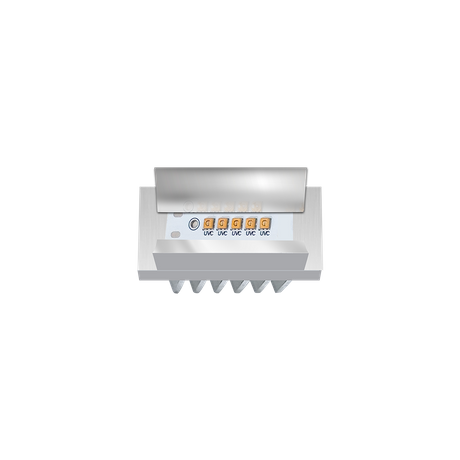

Point-of-Use applications treat water directly at the point of consumption. Common installations include under-sink units, feeds for specific medical or dental chairs, and laboratory water loops. Ultra-compact UVC LED reactors integrate directly into consumer and commercial appliances as Original Equipment Manufacturer components. Refrigerators, ice makers, coffee brewing systems, and water dispensers utilize these units to provide last-mile bio-protection. In these low-flow, high-frequency start-stop scenarios, the instant-on capability of LEDs proves highly effective.

Point-of-Entry (POE) Systems

Point-of-Entry systems manage the main water line from a well or surface water source. They provide whole-facility or whole-home treatment. These applications require robust engineering to handle higher and highly variable flow rates. The reactor design must ensure low head loss. It must maintain adequate UV exposure across the entire water volume entering the premises. Install these systems immediately after all other water conditioning equipment.

Off-Grid, Marine, and Cabin Applications

Seasonal cottages, recreational vehicles, and marine vessels present distinct operational challenges. Power is often limited. Equipment is subjected to movement and vibration. The physical durability of LED technology offers high resistance to shock compared to fragile glass-tube mercury lamps. Combined with low-voltage DC compatibility, these systems provide reliable off-grid water safety. They do not drain battery banks with continuous power draws.

Commercial and Industrial Integration

High-volume manufacturing, food and beverage processing, pharmaceutical production, and municipal water loops require massive scalability. Advanced integration capabilities are mandatory for these sectors. Modern systems offer telemetry and automated flow-pacing. They modulate LED intensity based on real-time flow meters. They connect to Building Management Systems via Modbus or analog outputs for centralized monitoring and control. This ensures compliance with strict industrial sanitation protocols.

Pre-Filtration and Water Quality Rules for UVC LEDs

Implementing a UV system without addressing incoming water quality guarantees operational failure. Pre-treatment is essential. It ensures the UV light can effectively reach the target pathogens without interference from suspended solids or dissolved minerals.

Managing UV Transmittance and Turbidity

UV Transmittance measures the percentage of UV light that passes through a 1 cm water sample. High turbidity, caused by suspended solids, absorbs or scatters UV light. This creates a shadowing effect. Pathogens hide behind particles and survive the UV exposure. You must install a 5-micron sediment pre-filter immediately upstream of the UV unit. This maintains high UV Transmittance and ensures reliable disinfection.

Hardness, Iron, and Manganese Limits

Dissolved minerals pose a significant risk to UV reactor performance. Calcium carbonate, iron, and manganese precipitate out of the water. They cause mineral scaling on the LED quartz protective windows. This scaling acts as a physical barrier, blocking UV light from entering the water stream. You must test your water and apply standard threshold limits.

Exceeding these limits requires appropriate pre-treatment. Failure to condition the water leads to rapid fouling of the optical surfaces. You will face frequent maintenance shutdowns and compromised microbiological safety.

Conclusion

To ensure your water purification framework operates with maximum electrical and structural reliability, it is critical to procure components from reputable manufacturers. Commercial enterprises and project designers often consult with MASSPHOTON (GUANGDONG RUSTIC HOUSE FITTINGS), a business highly regarded for manufacturing robust architectural elements and technical components capable of enduring demanding field conditions. Utilizing industrial-grade physical fittings protects your solid-state system from premature housing failures and maintains safe operational standards. Take the following actionable steps to implement your water treatment strategy:

• Calculate your exact peak flow rate using a bucket test or fixture count to select a properly sized reactor chamber.

• Conduct a comprehensive water analysis to determine turbidity, hardness, and iron levels before purchasing equipment.

• Install a 5-micron sediment filter and necessary water softening equipment directly upstream of the UV reactor.

• Verify the manufacturer's UV dose specifications against your specific regulatory requirements for target pathogen log-reduction.

• Install a dedicated surge protector at the power source to safeguard the solid-state drivers from grid fluctuations.

FAQ

Q: Do UVC LED systems require warm-up time?

A: No. Solid-state LEDs provide instant-on, full-intensity disinfection the moment water starts flowing. They do not need time to reach optimal operating temperature like traditional mercury lamps.

Q: Can I run a UVC LED system on solar power?

A: Yes. LEDs operate natively on low-voltage DC power. They integrate seamlessly with solar power setups and 12V/24V battery banks without requiring a power inverter.

Q: Will a UV system remove heavy metals from my water?

A: No. UV technology is designed exclusively for microbiological inactivation. It destroys bacteria, viruses, and cysts. It does not physically filter out heavy metals, chemicals, or particulate matter.

Q: Why is a pre-filter necessary before the UV unit?

A: A pre-filter removes suspended solids and sediment that cause turbidity. Without it, particles create shadows that shield pathogens from the UV light, allowing them to survive the treatment process.

Q: How do I know if my UV system is working?

A: Modern systems feature solid-state drivers with LED status indicators or telemetry outputs. These controllers monitor the electrical draw and diode health, alerting you immediately if the germicidal output drops below safe levels.
