Light Output Efficiency of Surface-Mount Lamp Beads Based on New Solid–Liquid UV Encapsulation
WEI wei1*，LI Liuming1, GU Chunpeng10，CHEN Lei2，SONG Jinde6 ，XIA Zhenghao7 ，GUO Haozhong8，WANG
Xinxing1，LI Zenglei1，WANG Xiaoting1，ZOU Mingxue1，LI Chenyang1，ZOU Jun4，CHEN Zhizhong3, WU Peng5 ，
LIAO Yitao5 ，ZHANG Guoyi9
Main text
Figures
Tables
References
Abstract

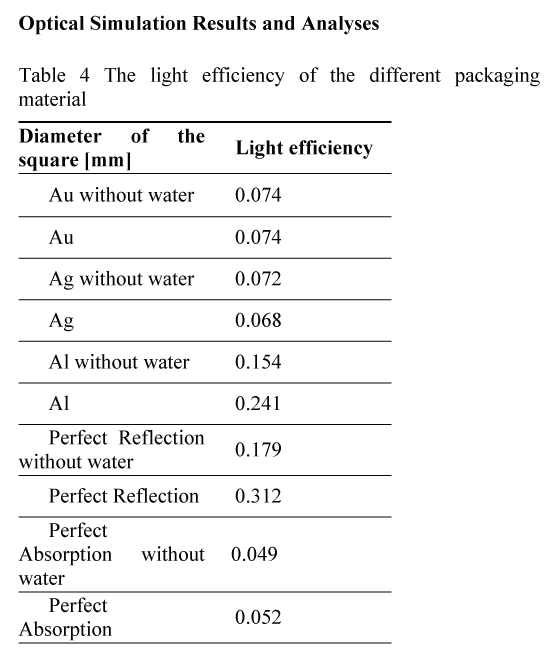

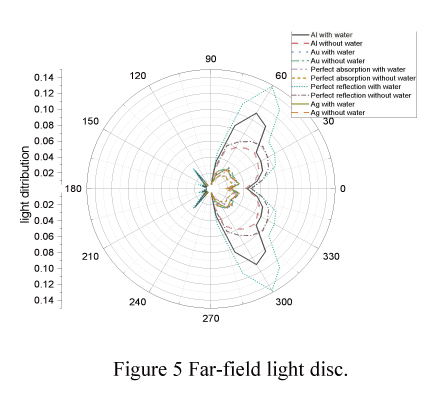

To address the problem of low efficiency of AIGaN-based UV LED chips, this study developed a type of solid-liquid packaged UV LED chip and analyzed its light output efficiency under different parameters. The light output efficiency of UV LED chips with and without solid-liquid encapsulation were analyzed using different reflective materials inside the chips. It was found that Au, Ag, and total-absorption reflective materials could not improve the light-output efficiency of UV LED liquid packaging. In addition, Al reflective materials and total reflection photonic crystals can improve the light output efficiency of UV LED liquid packaging, with the highest efficiency increase reaching over 74%. The light output efficiencies of liquid packaging with quartz cover sheets of different thicknesses were analyzed; the results revealed that the thinner the quartz cover sheet, the higher the efficiency; Under the same conditions, the efficiency improvement of UV LED surface-mount beads is not significant with different thicknesses of quartz cover sheets; Under the same thickness of quartz cover, Al reflective material and total reflection photonic crystal can improve the light output efficiency of UV LED liquid packaging.

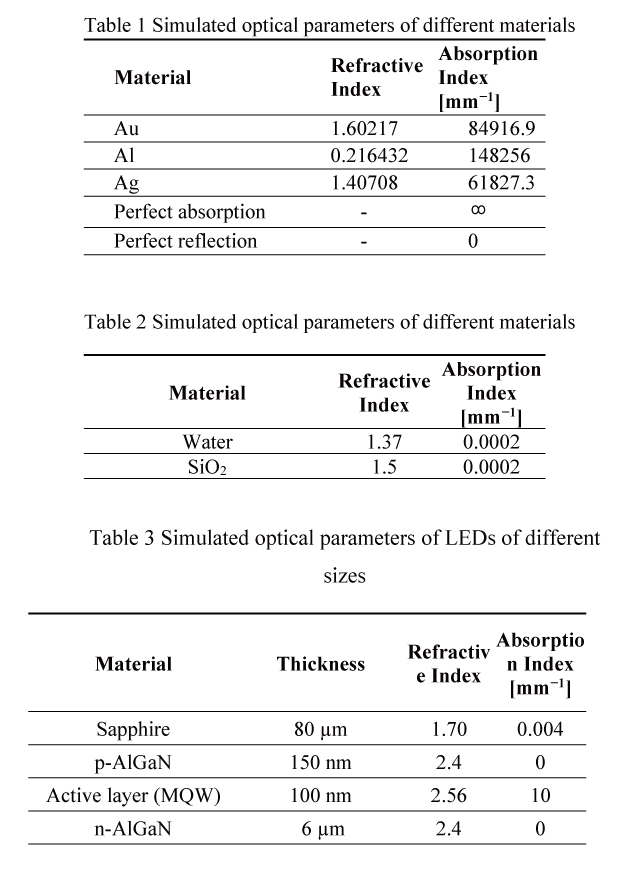

Table 2 Simulated optical parameters of different materials
Table 3 Simulated optical parameters of LEDs of different sizes

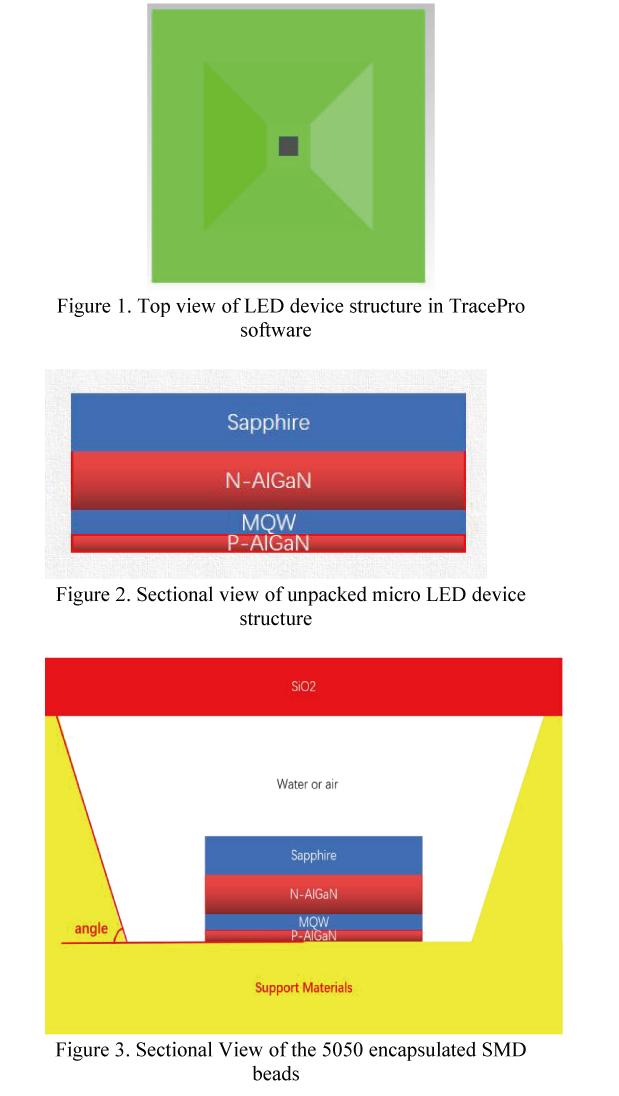

The structures of the UV chip and patch-lamp bead used in this simulation are shown in Figure 1-3. The UV LED chip includes a sapphire substrate, an N-type AlGaN material, a quantum well, and a P-type AlGaN material; its front-top view is shown in Figure 1, and its cross-sectional view is shown in Figure 2. As shown in Figure 3, the UV patch-lamp bead includes packaging materials, UV LED chips, filling materials, such as air or water, and a quartz cover from bottom to top; the angle between the inner and bottom surfaces is 85°.
Figure 2 (a) Silicon dioxide glass structure for external microprocessor arrays (b) Internal microprocessor arrays

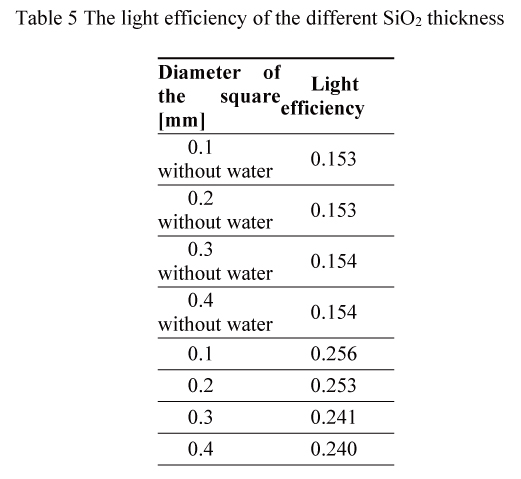

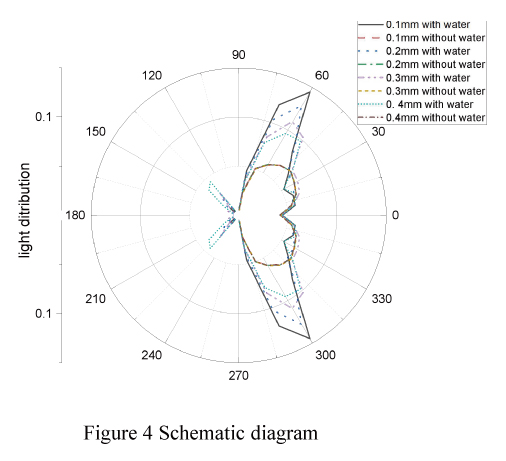

Table 5 The light efficiency of the different SiO2 thickness
[1] Hirayama H, Fujikawa S, Kamata N. Recent progress in AlGaN - based deep - UV LEDs[J]. Electronics and Communications in Japan, 2015, 98(5): 1-8.
[2] Tian P, Shan X, Zhu S, et al. AlGaN ultraviolet micro-LEDs[J]. IEEE Journal of Quantum Electronics, 2022, 58(4): 1-14.
[3] Li D, Jiang K, Sun X, et al. AlGaN photonics: recent advances in materials and ultraviolet devices[J]. Advances in Optics and Photonics, 2018, 10(1): 43-110.
[4] Hirayama H. Recent progress in AlGaN deep-UV LEDs[J]. Light-Emitting Diode: An Outlook on the Empirical Features and Its Recent Technological Advancements, 2018.
[5] Usman M, Malik S, Munsif M. AlGaN-based ultraviolet light - emitting diodes: challenges and opportunities[J]. Luminescence, 2021, 36(2): 294-305.
[6] Mondal R K, Adhikari S, Chatterjee V, et al. Recent advances and challenges in AlGaN-based ultra-violet light emitting diode technologies[J]. Materials Research Bulletin, 2021, 140: 111258.
[7] Yu H, Memon M H, Wang D, et al. AlGaN-based deep ultraviolet micro-LED emitting at 275 nm[J]. Optics Letters, 2021, 46(13): 3271-3274.
[8] Chen Y, Ben J, Xu F, et al. Review on the progress of AlGaN-based ultraviolet light-emitting diodes[J]. Fundamental Research, 2021, 1(6): 717-734.
[9] Usman M, Malik S, Khan M A, et al. Suppressing the efficiency droop in AlGaN-based UVB LEDs[J]. Nanotechnology, 2021, 32(21): 215703.
[10] Pandey A, Shin W J, Gim J, et al. High-efficiency AlGaN/GaN/AlGaN tunnel junction ultraviolet light-emitting diodes[J]. Photonics Research, 2020, 8(3): 331-337.
[11] Guttmann M, Susilo A, Sulmoni L, et al. Light extraction efficiency and internal quantum efficiency of fully UVC-transparent AlGaN based LEDs[J]. Journal of Physics D: Applied Physics, 2021, 54(33): 335101.
[12] Yu H, Memon M H, Wang D, et al. AlGaN-based deep ultraviolet micro-LED emitting at 275 nm[J]. Optics Letters, 2021, 46(13): 3271-3274.
[13] Liu Z, Lu Y, Wang Y, et al. Polarization modulation at last quantum barrier for high efficiency AlGaN-based UV LED[J]. IEEE Photonics Journal, 2021, 14(1): 1-8.
[14] Khan M A, Maeda N, Rangaraju H, et al. Efficiency droop in AlGaN crystal-based UVB LEDs in the context of electron blocking mechanism[J]. Journal of Crystal Growth, 2023, 604: 127032.
[15] Liu X, Mashooq K, Szkopec T, et al. Improving the efficiency of transverse magnetic polarized emission from AlGaN based LEDs by using nanowire photonic crystal[J]. IEEE Photonics Journal, 2018, 10(4): 1-11.
[16] Bhattacharyya A, Moustakas T D, Zhou L, et al. Deep ultraviolet emitting AlGaN quantum wells with high internal quantum efficiency[J]. Applied Physics Letters, 2009, 94(18).
[17] Mori T, Nagamatsu K, Nonaka K, et al. Crystal growth and p - type conductivity control of AlGaN for high - efficiency nitride - based UV emitters[J]. physica status solidi c, 2009, 6(12): 2621-2625.
[18] Liu C, Melanson B, Ooi Y K, et al. Analysis on light extraction property of AlGaN-based flip-chip ultraviolet light-emitting diodes by the use of self-assembled SiO2 microsphere array[C]//Gallium Nitride Materials and Devices XIV. SPIE, 2019, 10918: 39-44.
[19] Zhang H, Zhang W, Zhang S, et al. Improved reliability of AlGaN-based deep ultraviolet LED with modified reflective N-type electrode[J]. IEEE Electron Device Letters, 2021, 42(7): 978-981.
[20] Wu S. Enhanced light extraction and beam shaping for AlGaN-based ultraviolet light emitting diodes via encapsulation[D]. Dissertation, Berlin, Technische Universität Berlin, 2022, 2023.
[21] Wang Y, Lv Z, Qi S, et al. Enhancement of light extraction efficiency of UVC-LED by SiO2 antireflective film[J]. Crystals, 2022, 12(7): 928.
[22] Letson B C, Conklin J W, Wass P, et al. Reliability and Degradation Mechanisms of Deep UV AlGaN LEDs[J]. ECS Journal of Solid State Science and Technology, 2023, 12(6): 066002.
[23] Nagasawa Y, Hirano A. A review of AlGaN-based deep-ultraviolet light-emitting diodes on sapphire[J]. Applied Sciences, 2018, 8(8): 1264.
[24] Zhang J, Chang L, Zheng Y, et al. Integrating remote reflector and air cavity into inclined sidewalls to enhance the light extraction efficiency for AlGaN-based DUV LEDs[J]. Optics Express, 2020, 28(11): 17035-17046.
[25] Floyd R, Gaevski M, Alam M D, et al. An opto-thermal study of high brightness 280 nm emission AlGaN micropixel light-emitting diode arrays[J]. Applied Physics Express, 2020, 14(1): 014002.
[26] Lee D, Lee J W, Jang J, et al. Improved performance of AlGaN-based deep ultraviolet light-emitting diodes with nano-patterned AlN/sapphire substrates[J]. Applied Physics Letters, 2017, 110(19).
[27] Nagasawa Y, Hirano A. Review of encapsulation materials for AlGaN-based deep-ultraviolet light-emitting diodes[J]. Photonics Research, 2019, 7(8): B55-B65.
[28] Hirano A, Nagasawa Y, Ippommatsu M, et al. Development of AlGaN-based deep-ultraviolet (DUV) LEDs focusing on the fluorine resin encapsulation and the prospect of the practical applications[C]//UV and Higher Energy Photonics: From Materials to Applications. SPIE, 2016, 9926: 27-39.
[29] Liang S, Sun W. Recent Advances in Packaging Technologies of AlGaN ‐ Based Deep Ultraviolet Light ‐ Emitting Diodes[J]. Advanced Materials Technologies, 2022, 7(8): 2101502.
[30] Nagai S, Yamada K, Hirano A, et al. Development of highly durable deep-ultraviolet AlGaN-based LED multichip array with hemispherical encapsulated structures using a selected resin through a detailed feasibility study[J]. Japanese Journal of Applied Physics, 2016, 55(8): 082101.
[31] Muth J F, Brown J D, Johnson M A L, et al. Absorption coefficient and refractive index of GaN, AlN and AlGaN alloys[J]. Materials Research Society Internet Journal of Nitride Semiconductor Research, 1999, 4(S1): 502-507.
[32] Park, H.J.; Cha, Y.J.; Kwak, J.S. Chip size-dependent light extraction efficiency for blue micro-LEDs. J. Korean Inst. Electr. Electron. Mater. Eng. 2019, 32, 47–52.
[33] Bayneva, I.I. Calculation and construction of optical elements of light devices. Dilemas Contemp. Educ. Política Valores 2019, 6, 58.
[34] Guo, W.; Meng, H.; Chen, Y.; Sun, T.; Li, Y. Wafer-level monolithic integration of vertical micro-LEDs on glass. IEEE Photon. Technol. Lett. 2020, 32, 673–676. https://doi.org/10.1109/LPT.2020.2991672.
[35] Rodney W S, Spindler R J. Index of refraction of fused quartz glass for ultraviolet, visible, and infrared wavelengths[J]. JOSA, 1954, 44(9): 677-679.
[36] Quickenden T I, Irvin J A. The ultraviolet absorption spectrum of liquid water[J]. The Journal of Chemical Physics, 1980, 72(8): 4416-4428.
[37] Daimon M, Masumura A. Measurement of the refractive index of distilled water from the near-infrared region to the ultraviolet region[J]. Applied optics, 2007, 46(18): 3811-3820.
[38] Beder E C, Bass C D, Shackleford W L. Transmissivity and absorption of fused quartz between 0.22 μ and 3.5 μ from room temperature to 1500° C[J]. Applied Optics, 1971, 10(10): 2263-2268.
IEEE Xplore link: https://ieeexplore.ieee.org/document/10835257
